model WP-4848




model WP-3636




DUAL SIDE DOOR ENTRY
model WP-3636-DD



HIGH BACK
model WP-3636-84B


WP-3648

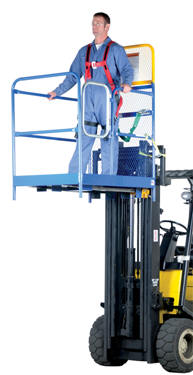

Convenient fork truck work platforms quickly and safely transport maintenance personnel where they are needed.  Attaches to fork truck by inserting forks into fork pockets and chaining platform to fork truck.  Tine lock must be engaged to secure platform to forks.  42" high handrail with 21" high mid-rail on three sides. 60" high expanded metal backing on fourth side (84" high backing to meet California OSHA specifications).  Includes checker floor plate platform and 36" long strap with hook to attach platform to fork truck.  The usable fork pockets are 7-3/4"W x 3-3/8"H in rear and 7-3/4"W x 1-7/8"H in front.  Capacity is 1,000 pounds.  Welded steel construction.  Powder coat blue finish.  The Full Featured units include a Emergency Stop Button Kit and Web
Lanyard with Safety Harness.

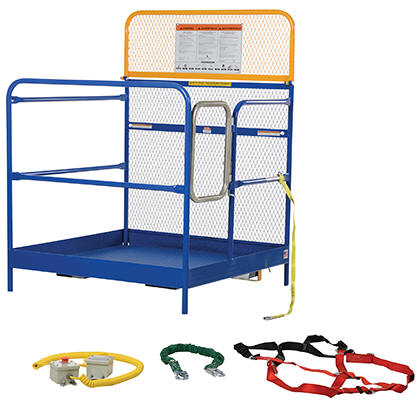

FULL FEATURED
WP-4848-FF

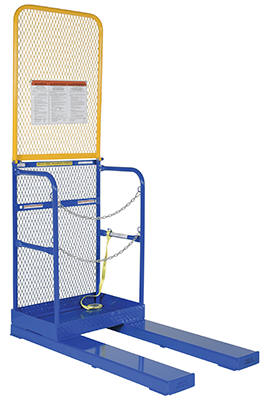

model SP-175                          model SP-175-84B

Elevate personnel and pallets to overhead racks and shelving for safe, convenient access.  Accommodates one person and a 42" long pallet.  Attaches to fork truck by inserting forks into fork pockets and chaining platform to fork truck.  Pin type tine lock standard. 42" high handrail
with 21" high mid-rail on two sides.  60" high expanded metal backing on fourth side (84" high backing to meet California OSHA specifications). Includes checker floor plate platform and 36" long chain with hook to attach platform to fork truck.  The usable fork pocket size is 7-1/2"W x 2-1/2"H.  Unit includes a welded steel construction with a powder coat blue finish for added toughness.

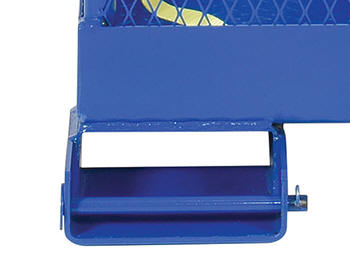

Pin Type Tine Lock Is Standard



Web Lanyard w/ Safety Harness (optional) for construction by OSHA

Work Platforms
Model PDF's Platform Size
(WxL)
Fork Pocket Centers Expanded Metal Back Wt.
(lbs)

Single Side Door Entry

WP-3636 Warranty PDFCompliance Certificate 36" x 36" 16" 60" 146
WP-3648 Warranty PDFCompliance Certificate 36" x 48" 15" 60" 165
WP-4848 Warranty PDFCompliance Certificate 48" x 48" 24" 60" 195
WP-4848-FF
(full featured)
Warranty PDFCompliance Certificate 48" x 48" 24" 60" 222
WP-3636-84B Warranty PDFCompliance Certificate 36" x 36" 16" 84" 151
WP-3648-84B Warranty PDFCompliance Certificate 36" x 48" 16" 84" 175
WP-4848-84B Warranty PDFCompliance Certificate 48" x 48" 15" 84" 205
WP-4848-84B-FF Warranty PDFCompliance Certificate 48" x 48" 24" 84" 316
WP-4848-FF-84B
(full featured)
Warranty PDFCompliance Certificate 48" x 48" 24" 84" 316

Dual Side Door Entry

WP-3636-DD Warranty PDFCompliance Certificate 36" x 36" 15" 60" 143
WP-3648-DD Warranty PDFCompliance Certificate 36" x 48" 15" 60" 175
WP-4848-DD Warranty PDFCompliance Certificate 48" x 48" 24" 60" 207
WP-4848-DD-FF
(full featured)
Warranty PDFCompliance Certificate 48" x 48" 24" 60" 222
WP-3636-84B-DD Warranty PDFCompliance Certificate 36" x 36" 16" 84" 215
WP-3648-84B-DD Warranty PDFCompliance Certificate 36" x 48" 16" 84" 183
WP-4848-84B-DD Warranty PDFCompliance Certificate 48" x 48" 24" 84" 216
WP-4848-84B-DD-FF Warranty PDFCompliance Certificate 48" x 48" 24" 84" 316
WP-4848-FF-84B-DD
(full featured)
Warranty PDFCompliance Certificate 48" x 48" 24" 84" 316
Stockpicker Work Platforms
Model PDF's Platform Size
(WxL)
Fork Pocket Center Expanded Metal Back Wt.
(lbs)
SP-175 Warranty PDFCompliance Certificate 30"x20" 22.25" 60" 185
SP-175-84B Warranty PDFCompliance Certificate 30"x20" 22.25" 84" 190
Work Platform Safety Options
Model PDF's Description Wt.
(lbs)
WP-CA Warranty PDF 4"x1-1/4" Poly-on-Poly (2) Swivel, (2) Swivel with Brake Casters* 20
WP-SB Warranty PDF Emergency Stop button kit + 7
WP-SB-FTJB Warranty PDF Emergency stop fork truck junction box only + 8
WP-SB-WPJB Warranty PDF Emergency stop work platform junction box only + 5
WP-TC Warranty PDF Fluorescent tube caddy + 15
WP-TT36 Warranty PDF Sliding tool tray (36") + (Only Available to be used  with single door units) 13
WP-TT48 Warranty PDF Sliding tool tray (48") + (Only Available to be used with single door units) 22
WP-AFR Warranty PDF Automatic Fold Down Ramp (16" Long with 16° incline) **Not Compatible with mode: WP-CA** 222
WP-WS Warranty PDF Caution sign w/ mounting hardware (add'l) + 3
WP-DL Warranty PDF  Double chain door lock * 2
Lanyard with Safety Harness or Safety Belt
Model PDF Description Capacity
(lbs)
Length of Lanyard Wt.
(lbs)
WP-LH-S Warranty PDFCompliance Certificate Harness Small 350 6ft. 5
WP-LH-M Warranty PDFCompliance Certificate Harness Medium 350 6ft. 5
WP-LH-L Warranty PDFCompliance Certificate Harness Large 350 6ft. 5
WP-LH-XL Warranty PDFCompliance Certificate Harness X-Large 350 6ft. 5
WP-LH-XXL Warranty PDFCompliance Certificate Harness XX-Large 350 6ft. 5
WP-LH-XXXL Warranty PDFCompliance Certificate Harness XXX-Large.  *Note: Customer’s Completion of this waiver form mandatory for this item 350 6ft. 5

Harness Sizing Chart

Height 34"-36" 38"-40" 42"-44" 46"-48" 50"-54" 56"-60"
Small (5'4-5'7") Small Small Medium Large X-Large XX-Large
Reg(5'8"-5'11") Small Medium Large X-Large XX-Large XXX-Large
Tall(6'0"-6'3") Medium Medium Large X-Large XX-Large XXX-Large
X-Tall(6'3-Plus) Large Large X-Large X-Large XX-Large XXX-Large

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

Freight Quote


Copyright © 2017
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale

Notice

Occupant safety depends on maintaining a work platform in level, horizontal position. Only use work platforms on improved surfaces (asphalt or concrete) that are even and level. DO NOT mount a work platform on a telehandler, aka boom lift, or rough terrain forklift, even if the handler will be used on level concrete or asphalt.


WP & SP series Owners Manual

WP-SB Installation Sheet


WP Survey Sheet


SP-175 Survey Sheet

Options:


Poly Casters model WP-CA (optional), allows you to move unit without a fork truck.

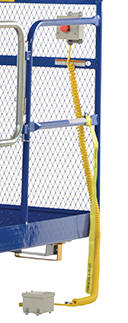

Emergency Shut Off Button Kit, model WP-SB (optional)


Fluorescent Tube Caddy, model WP-TC (Optional), holds fluorescent light bulbs and other maintenance equipment.


Sliding Tool Tray, series WP-TT (optional)


Try Our:


Fold-Down Work Platform

Multi-Person Work Platform
