model PN-ST-1

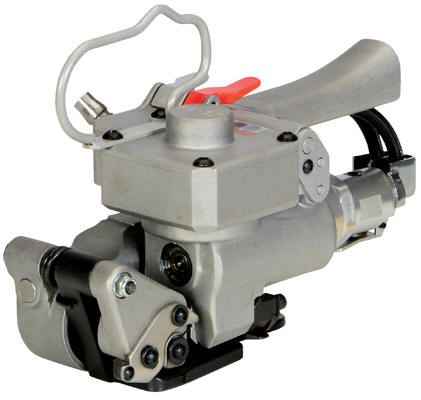

Pneumatic Strap Sealer is a pressure type sealer which tightens, and seals economical polypropylene strapping around packages or bundles.  The overlapped polyester band is welded by heat pressure in approximately 2 to 5 seconds.  Requires an air-filter-regulator, a minimum hose inside diameter of 1/4", and air pressure of 72 to 100 PSI.  The green poly strapping has a coil size of 16" x 6" core.  Strapping length per roll is 4200 feet.  Tensile strength is 1,400 pounds.

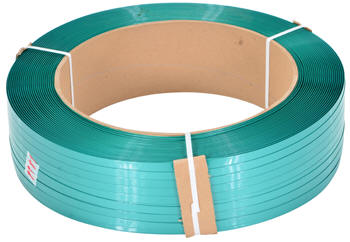

Poly Strapping
model PN-58-16X6-GN

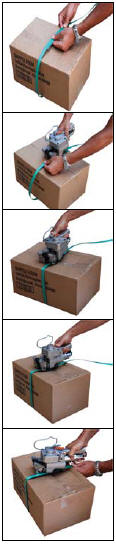

1.) Applying the strap

Apply strap around the package.  Leave about 12" tail.

2.) Loading the strap

Hold together the handle &
tensioner. Insert both straps.

3.) Tightening the strap

Press the tensioning lever until
strap is tight.

4.) Sealing & Cutting

Press the actuating lever until the
strap is cut & pressure sealed.

5.) Removing the tool

Squeeze reverse lever until strap
is loosened from tight wheel.

Pneumatic Strap Sealer
Model PDFs Dimensions
(WxLxH)
Required
Air Pressure
Accepts
Strapping
Strapping
Width
Wt.
(lbs)
PN-ST-1 Warranty PDFCompliance Certificate 5.8125"x 10.9375"x 6.8125" 72-100psi Polyester 3/4"to1" 9
PN-58-16X16-GN Warranty PDF 0.625"x4200x0.035" Poly Strapping 69

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
