AHA-6-10-8

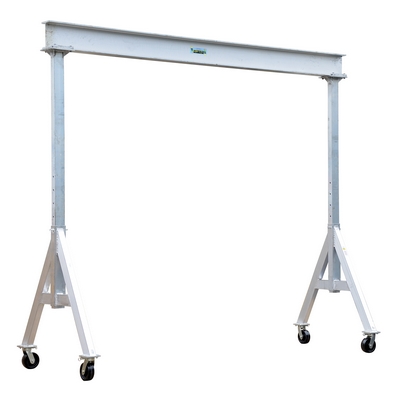

Aluminum Adjustable Height Gantry Crane with Phenolic Casters 10 Ft.Wide x 8 Ft. Max Usable Height 6,000 Lb. Capacity Silver

The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows for simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two (2) straps, allowing one person to transport the gantry crane in one neat package.

  • Heavy-duty welded aluminum construction for long lasting use
  • Each unit includes four swivel phenolic casters with four-way position locks for safe positioning
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • All units comply with applicable CMAA and ANSI specifications
Total Ship Wt.(lbs.): 746 (Multiple Packages: P1: 534 lbs + P2: 212 lbs) Size: 64.6875"W x 120"L x 108"H Color: Silver

Uniform Capacity (lb.): 6000 Overall I-Beam Length (ft.): 10 I-Beam Height (In.): 10
I-Beam Flange Width (in.): 4-11/16 Under I-Beam Range (in.): 74 to 98 Base Width (in.): 64-11/16
Caster Quantity/Diameter/Width (in.): (4) 8 x 3 Caster Type: Swivel (4) Position Locking Casters Caster Material: Phenolic
Caster Top Plate (in.): 4 x 4 1/2 Usable Trolley Travel Distance (in.): 96-1/4 Increment Height Adjustment (in.): 6

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AHA-6-10-8
AHA-6-10-8

Aluminum Adjustable Height Gantry Crane with Phenolic Casters 10 Ft.Wide x 8 Ft. Max Usable Height 6,000 Lb. Capacity Silver

The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows for simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two (2) straps, allowing one person to transport the gantry crane in one neat package.

  • Heavy-duty welded aluminum construction for long lasting use
  • Each unit includes four swivel phenolic casters with four-way position locks for safe positioning
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • All units comply with applicable CMAA and ANSI specifications
Dimensions: 64.6875"W x 120"L x 108"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215066143 GTIN: 00691215066143
Warranty: -- Shipping Weight: 534 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 6000 Overall I-Beam Length (ft.): 10 I-Beam Height (In.): 10
I-Beam Flange Width (in.): 4-11/16 Under I-Beam Range (in.): 74 to 98 Base Width (in.): 64-11/16
Caster Quantity/Diameter/Width (in.): (4) 8 x 3 Caster Type: Swivel (4) Position Locking Casters Caster Material: Phenolic
Caster Top Plate (in.): 4 x 4 1/2 Usable Trolley Travel Distance (in.): 96-1/4 Increment Height Adjustment (in.): 6
