Model Details

AIR-THL

AIR-THL

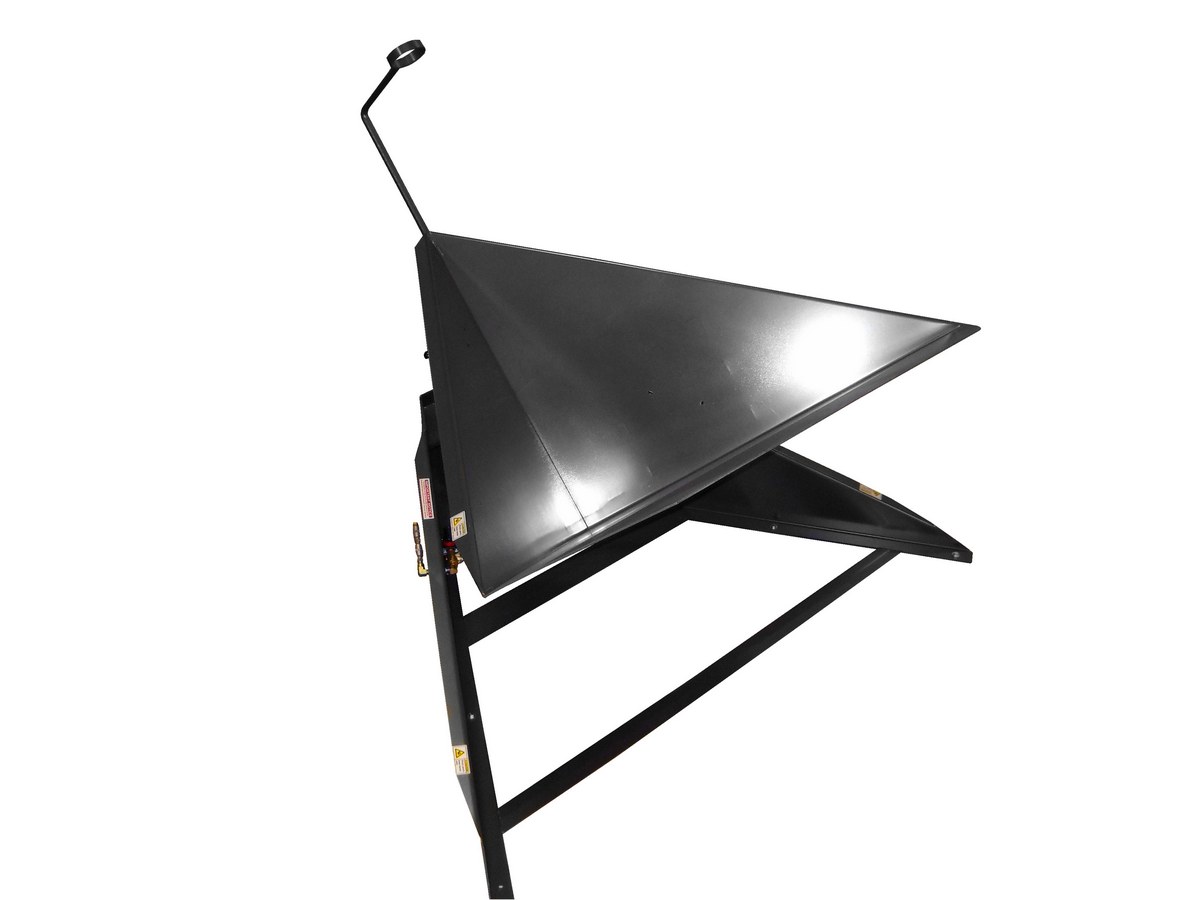

Steel Hand Lever Operated Air Corner Tilter 50-7/8 In. x 78-1/2 In. x 35-1/4 In. 1,500 Lb. Capacity Gray

The air corner tilter is a floor level multi-ply airbag powered tilter that provides ergonomic loading and unloading of bulk containers, gaylords, or crates. It is accessible by either pallet or fork truck and is activated by a hand operated control lever. The air bag inflates tilting and the material shifts to the corner of the container where it can be easily removed by manual or mechanical means. The regulator is factory preset to begin rotating the container when the weight reaches approximately 900 pounds. An included ratchet safety stop feature is a patented design, built to prevent the pivot bucket from dropping in the event of a pneumatic system failure. Includes adjustable vacuum pick-up wand holder (3-1/2" inside Diameter) and provides 12 of adjustment to accommodate various container heights.

  • Provides ergonomic loading and unloading of bulk containers
  • Accessible by pallet or fork truck and is activated by a hand lever
  • Adjustable air regulator to a predetermined pressure
  • The pressure adjusts to the weight of your application
Total Ship Wt.(lbs.): 500 (only 1 package) Size: 78.5"W x 50.875"L x 35.25"H Color: Gray Non-Returnable

Uniform Capacity (lb.): 1,500 Maximum Tilt (degree): 45 Operation: Hand Lever
Platform Length (in.): 44 Platform Width (in.): 44 PSI Recommended: 40 - 100
Air Inlet (in.): 1/4 NPT

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AIR-THL


AIR-THL

Steel Hand Lever Operated Air Corner Tilter 50-7/8 In. x 78-1/2 In. x 35-1/4 In. 1,500 Lb. Capacity Gray

The air corner tilter is a floor level multi-ply airbag powered tilter that provides ergonomic loading and unloading of bulk containers, gaylords, or crates. It is accessible by either pallet or fork truck and is activated by a hand operated control lever. The air bag inflates tilting and the material shifts to the corner of the container where it can be easily removed by manual or mechanical means. The regulator is factory preset to begin rotating the container when the weight reaches approximately 900 pounds. An included ratchet safety stop feature is a patented design, built to prevent the pivot bucket from dropping in the event of a pneumatic system failure. Includes adjustable vacuum pick-up wand holder (3-1/2" inside Diameter) and provides 12 of adjustment to accommodate various container heights.

  • Provides ergonomic loading and unloading of bulk containers
  • Accessible by pallet or fork truck and is activated by a hand lever
  • Adjustable air regulator to a predetermined pressure
  • The pressure adjusts to the weight of your application
Dimensions: 78.5"W x 50.875"L x 35.25"H Sell UOM: EA-Each Color: Gray
Material: Steel UPC: 691215002202 GTIN: 00691215002202
Warranty: -- Shipping Weight: 500 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,500 Maximum Tilt (degree): 45 Operation: Hand Lever
Platform Length (in.): 44 Platform Width (in.): 44 PSI Recommended: 40 - 100
Air Inlet (in.): 1/4 NPT
