Model Details

EHLT-2448-3-43-PSS

Printer Friendly
EHLT-2448-3-43-PSS

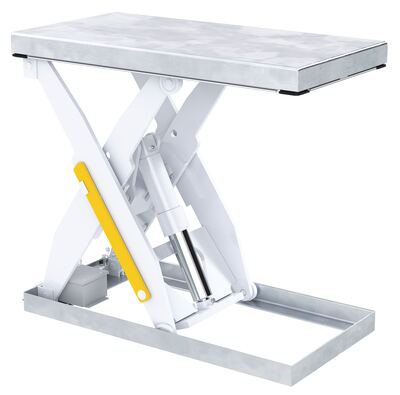

Partially Stainless Steel Electric Hydraulic Lift Table 24 In. x 48 In. 3000 Lb. Capacity Silver

Full featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities. Safety features include an electric toe guard to protect pinch points during the lowering of the table, safety velocity fuse to maintain platform height in the event of hose or fitting failure, 24V AC push-button hand control, maintenance prop, and upper travel limit switch to stop the table at maximum height. 2HP, 460V, 3 phase, 60 Hz totally enclosed motor is standard. Additional voltage options are available. The table has a 3000 psi hydraulic component rating.

  • Partially stainless steel construction for durability
  • Large platform to handle large awkward sized material
  • AC powered for constant power supply functionality
  • Remote control capability to create distance between personnel and table
Total Ship Wt.(lbs.): 694 (only 1 package) Size: 24.375"W x 51"L x 7"H Color: Silver (Frame, Deck), White (Leg Set) Non-Returnable

Uniform Capacity (lb.): 3,000 Travel Time (sec.): 16 Vertical Travel (in.): 36
Voltage/Phase: 460/3 Hertz: 60 Motor Horsepower: 2
Hydraulic Component Rating (psi): 3000 Cord Length (in.): 96 Push Button Hand Control: 24V AC
Raised Height (in.): 43 Lowered Height (in.): 7 Platform Width/Length (in.): 24-3/8 x 48-3/8
Frame and Deck Material: Stainless Steel Greasable Pins and Roller Material: Stainless Steel Scissor Legset Material: Carbon Steel with Powder Coat White Finish
Stainless Steel Finish: Unpolished Mill Finish

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Marketing Specs.

MFG Model # (Series)
EHLT-2448-3-43-PSS
Product Name
Partially Stainless Steel Electric Hydraulic Lift Table 24 In. x 48 In. 3000 Lb. Capacity Silver
UPC
691215319737
GTIN
00691215319737
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Scissor Lift Table
Taxonomy 5
Electric
Assembled Depth (in.)
51
Assembled Width(in.)
24.375
Assembled Height(in.)
7
Assembled Weight(lbs.)
610
Color/Finish
Silver (Frame, Deck), White (Leg Set)
Material
304 Stainless Steel (Frame, Deck), Carbon Steel (Leg Set)
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
China
Approval Drawing Required? Y/N
Y
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
30
Package Width (in.)
52
Package Height (in.)
16
Package Weight (in.)
694
Subclass
8
Freight Class
85
NMFC Code
Conveyors Elevators or Lifts NOI
NMFC Number
120700
LTL Freight
LTL Palletized
UNSPSC
24101617
HTSUS Number
8428900390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2024 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: EHLT-2448-3-43-PSS
EHLT-2448-3-43-PSS

Partially Stainless Steel Electric Hydraulic Lift Table 24 In. x 48 In. 3000 Lb. Capacity Silver

Full featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities. Safety features include an electric toe guard to protect pinch points during the lowering of the table, safety velocity fuse to maintain platform height in the event of hose or fitting failure, 24V AC push-button hand control, maintenance prop, and upper travel limit switch to stop the table at maximum height. 2HP, 460V, 3 phase, 60 Hz totally enclosed motor is standard. Additional voltage options are available. The table has a 3000 psi hydraulic component rating.

  • Partially stainless steel construction for durability
  • Large platform to handle large awkward sized material
  • AC powered for constant power supply functionality
  • Remote control capability to create distance between personnel and table
Dimensions: 24.375"W x 51"L x 7"H Sell UOM: EA-Each Color: Silver (Frame, Deck), White (Leg Set)
Material: 304 Stainless Steel (Frame, Deck), Carbon Steel (Leg Set) UPC: 691215319737 GTIN: 00691215319737
Warranty: -- Shipping Weight: 694 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 3,000 Travel Time (sec.): 16 Vertical Travel (in.): 36
Voltage/Phase: 460/3 Hertz: 60 Motor Horsepower: 2
Hydraulic Component Rating (psi): 3000 Cord Length (in.): 96 Push Button Hand Control: 24V AC
Raised Height (in.): 43 Lowered Height (in.): 7 Platform Width/Length (in.): 24-3/8 x 48-3/8
Frame and Deck Material: Stainless Steel Greasable Pins and Roller Material: Stainless Steel Scissor Legset Material: Carbon Steel with Powder Coat White Finish
Stainless Steel Finish: Unpolished Mill Finish
