Model Details
The ground lift scissor table is designed for use when fork trucks are not available. The pallets can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. Safety features include an entry-side electric toe guard to protect pinch points during lowering of the table, velocity fuse to maintain platform height in the event of a hose or fitting failure, foot control, maintenance prop, and upper travel limit switch to stop the table at maximum height and reduce motor wear. The motor is totally enclosed standard with additional voltage options available. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting is available.
Uniform Capacity (lb.): 4000 | Usable Platform Width (in.): 38 | Usable Platform Length (in.): 50 |
Raised Height (in.): 36 | Platform Lowered Height (in.): 1/2 | Hydraulic Component Rating (psi): 3000 |
Motor Horsepower: 2 | Hertz: 60 | Voltage: 460 |
Phase: 3 | Remote Power Unit Length (in.): 32-1/2 | Remote Power Unit Width (in.): 12 |
Remote Power Unit Height (in.): 12-1/2 | Lift Time - Up (seconds): 50 | Lift Time Down - (seconds): 18 |
Back Plate Height (in.): 6 | Overall Length (in.): 56-1/4 | Overall Width (in.): 60-13/16 |
Quickship Item?
Can It Ship UPS/FedEx?
Details For Model: EHLTG-3850-4-36 |
|||||||||||||||||||||||||||||||||||

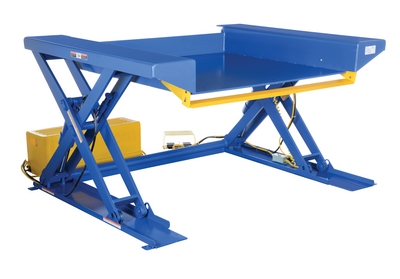

Steel Ground Lift Scissor Table 38 In. x 50 In. 4000 Lb. Capacity BlueThe ground lift scissor table is designed for use when fork trucks are not available. The pallets can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. Safety features include an entry-side electric toe guard to protect pinch points during lowering of the table, velocity fuse to maintain platform height in the event of a hose or fitting failure, foot control, maintenance prop, and upper travel limit switch to stop the table at maximum height and reduce motor wear. The motor is totally enclosed standard with additional voltage options available. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting is available.
|
|||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
