Model Details
The fixed height knockdown industrial steel Gantry cranes are uniquely designed to be disassembled when not in use for compact storage and easier transportation / shipping from one job site to another. Facilitate easy mobility from one area to another with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating. Features quick setup design. Do not move units while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.
Uniform Capacity (lbs.): 4000 | Casters Swivel (Qty): 4 | Caster Diameter (in.): 8 |
Caster Width (in.): 2 | Caster Material: Cast Iron | Beam Height (in): 8.125 |
Beam Length (in): 120 | Usable Beam Length (in): 89.75 | Flange Width (in): 4 |
Base Width (in): 64.5 | Base Length (in): 109.25 | Maximum Overall Height (in): 128.5 |
Adjustable Height: No | Maximum Clearance (in): 120.375 |
Quickship Item?
Can It Ship UPS/FedEx?
Details For Model: FHSN-4-10-VG |
|||||||||||||||||||||||||||||||

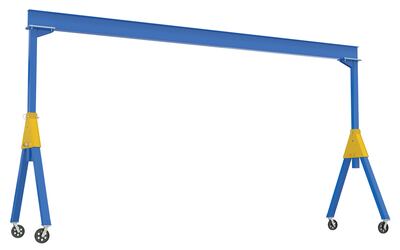

Steel Knockdown Fixed Gantry Crane with V-Groove Cast Iron Casters 10 Ft. 4000 Lb. Capacity BlueThe fixed height knockdown industrial steel Gantry cranes are uniquely designed to be disassembled when not in use for compact storage and easier transportation / shipping from one job site to another. Facilitate easy mobility from one area to another with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating. Features quick setup design. Do not move units while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.
|
|||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||
