FHSN-6-20-VG

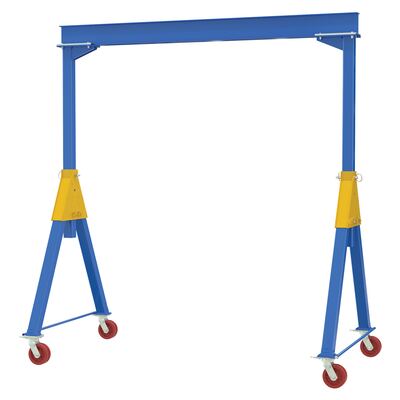

Steel Knockdown Fixed Gantry Crane with V-Groove Cast Iron Casters 20 Ft. 6000 Lb. Capacity Blue

The fixed height knockdown industrial steel Gantry cranes are uniquely designed to be disassembled when not in use for compact storage and easier transportation / shipping from one job site to another. Facilitate easy mobility from one area to another with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating. Features quick setup design. Do not move units while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.

  • Knockdown unit, assembly required
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Total Ship Wt.(lbs.): 1303 (Multiple Packages: P1: 747 lbs + P2: 556 lbs) Size: 64.5"W x 240"L x 133.9375"H Color: Blue

Uniform Capacity (lbs.): 6000 Casters Swivel (Qty): 4 Caster Diameter (in.): 8

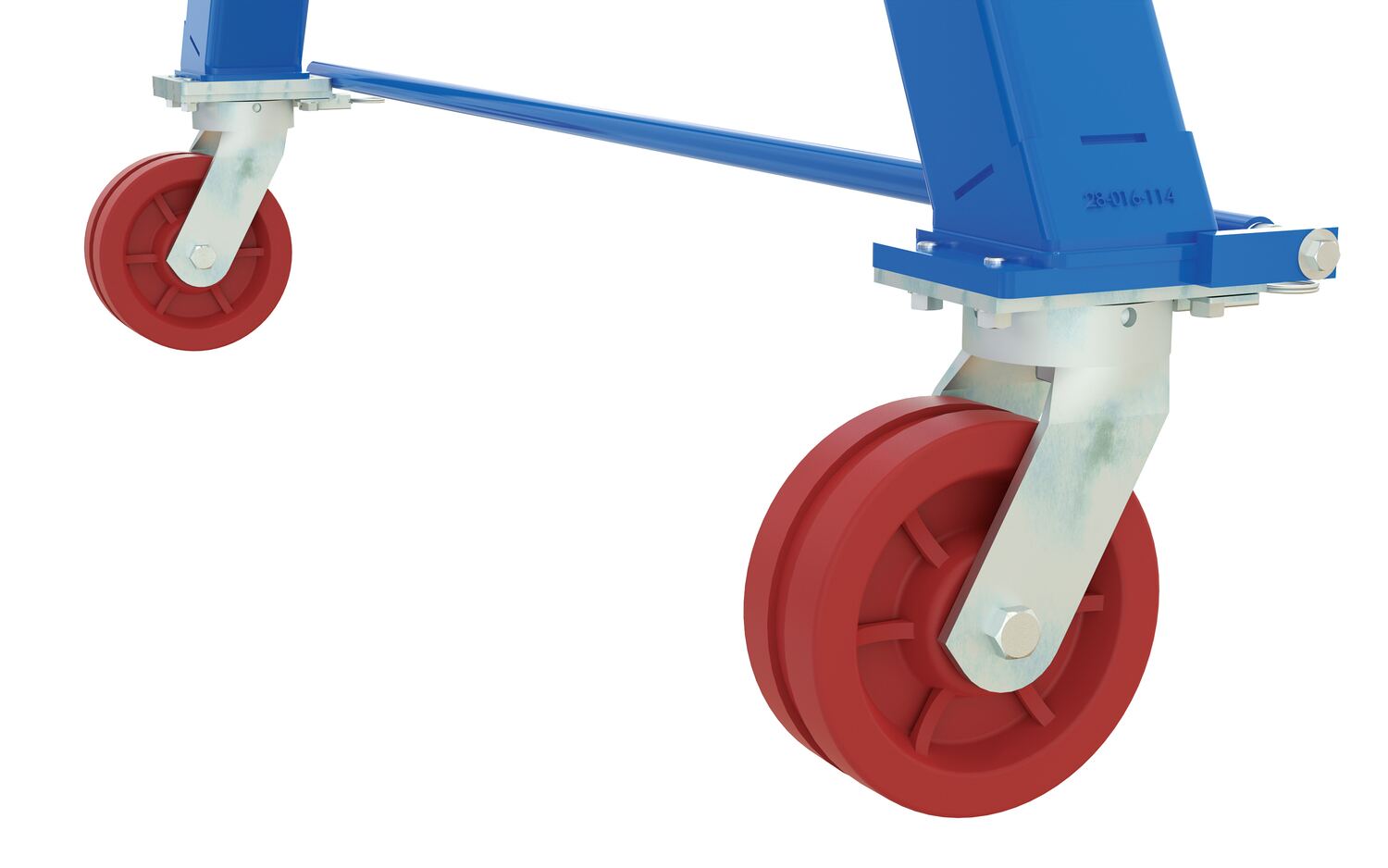

Caster Width (in.): 3 Caster Material: Cast Iron Beam Height (in): 12.3125
Beam Length (in): 240 Usable Beam Length (in): 209.75 Flange Width (in): 6.5
Base Width (in): 64.5 Base Length (in): 229.25 Maximum Overall Height (in): 133.938
Adjustable Height: No Maximum Clearance (in): 121

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: FHSN-6-20-VG
FHSN-6-20-VG

Steel Knockdown Fixed Gantry Crane with V-Groove Cast Iron Casters 20 Ft. 6000 Lb. Capacity Blue

The fixed height knockdown industrial steel Gantry cranes are uniquely designed to be disassembled when not in use for compact storage and easier transportation / shipping from one job site to another. Facilitate easy mobility from one area to another with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating. Features quick setup design. Do not move units while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.

  • Knockdown unit, assembly required
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Dimensions: 64.5"W x 240"L x 133.9375"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215367882 GTIN: 00691215367882
Warranty: -- Shipping Weight: 747 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs.): 6000 Casters Swivel (Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 3 Caster Material: Cast Iron Beam Height (in): 12.3125
Beam Length (in): 240 Usable Beam Length (in): 209.75 Flange Width (in): 6.5
Base Width (in): 64.5 Base Length (in): 229.25 Maximum Overall Height (in): 133.938
Adjustable Height: No Maximum Clearance (in): 121
