model HDDL-55

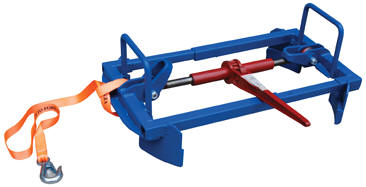

The Heavy Duty Vertical Drum Lifter makes it virtually impossible for a drum to break loose. Designed to lift 55 gallon open head (with lid installed and secured) and closed head steel drums in the vertical position. An industrial ratchet load-binder is used to clamp the unit to the top of the drum. Uniform capacity is 1,500 pounds. Lifter features integral fork pockets for use with fork truck forks/ tines as well as lifting points for attachment of slings or chains. A safety restraint is included to secure the drum lifter to a carriage when being used with a fork truck.



Heavy Duty Vertical Drum Lifter
Model PDF Acceptable Drum Type Capacity
HDDL-55 Compliance CertificatePhoto GalleryWarranty PDF Open (with lid installed and secured) and closed-head  55 gallon steel drums 1,500 91

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
