These Drum Jacks are the perfect solution to any of your drum transporting needs. Compact design allows for maximum maneuverability in restrictive areas. All steel construction.


Model DRUM-55-36 accepts both 55 gallon steel and fiber drums with a top lip. The front rigid wheels are 6" x 1-1/2, while the rear swivel casters are 3" x 1-1⁄2".

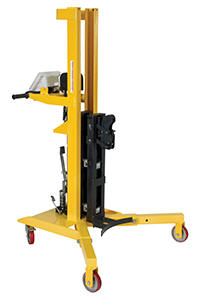

Model DRUM-55FP has an adjustable beak design which allows it to grab 30 & 55 gallon steel, plastic or fiber drums. Drums can easily be placed or removed from pallets, spill containers and scales. Available with built-in scale feature, see below.



Model DRUM-55S has a unique grapple to hold 55 gallon steel drums securely into the steel saddle prior to lifting it vertically. The drum is held in this position during transit, enabling open drums to be handled without spillage.



Model DRUM-55-FSP has a single clamping mechanism which automatically latches on the drum chime when being elevated or transported. The clamping mechanism is fully adjustable for shorter height drums.



Model DRUM-55-SCL-E can lift, transport, and weigh 30, 55, and 85 gallon steel, fiber, and plastic drums. Scale head features automatic turn-off and +/-0.5 lbs. accuracy. Scale is powered with AA batteries. AC adapter included.


Model DRUM-SCLG & DRUM-SCLF have a scale readout built into Drum Jack model DRUM-55FP. The scale allows the drum to be weighed and moved all with the same piece of equipment. The scale features a capacity of 1,000 lbs. with an accuracy of +/-0.5 lbs. 12V DC operation with battery and charger included. Stainless steel scale components. NEMA 4 scale read-out housing swivels 360 for maximum viewing convenience.




Drum Jacks
Model PDF's Overall Size
(W x D)
Beak Service Range Capacity
Wt. (lbs)
DRUM-55-36 Warranty PDFPhoto GalleryCompliance Certificate 30-1/2" x 27-13/16" 15" 33" to 52" 500 161
DRUM-55FP Warranty PDFPhoto GalleryCompliance Certificate 41-3/4" x 41-9/16" 18" 23 7/8"" to 57 7/8" 1,000 379
DRUM-55S Warranty PDFPhoto GalleryCompliance Certificate 28-1/2" x 41-3/16" 5-1/4" - 660 152
DRUM-55-FSP Warranty PDFPhoto GalleryCompliance Certificate 39-1/2"x 35" 20" 33" to 53" 800 375
DRUM-55-SCL-E Warranty PDF 35" x 38-5/8" 23-5/8" ---- 900 296
DRUM-SCLG DRUM-55FP with general readout scale 444
DRUM-SCLF DRUM-55FP with intrinsically safe readout scale 444

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
