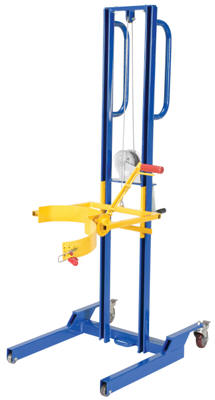

model LLW-PAILD-100


model LLW-PAILD-200

Variable Height Pail Dumper provides 24 angle settings for dispensing 5 gallon 11" diameter plastic or steel pails.  Dispense at any height between 1" and 52" by turning the hand cable winch. Steel construction with baked in powder coat finish for added toughness.

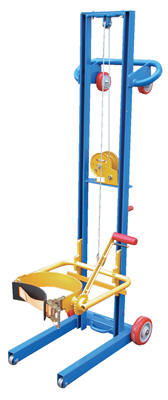

Model LLW-PAILD-200, 6" rigid poly-on-poly wheels with tilt back “hand truck” design can go virtually anywhere. Includes 2" diameter front steel wheels and 4" rigid poly-on-poly top wheels for easily loading unit into a van or truck.

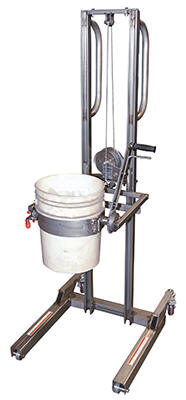

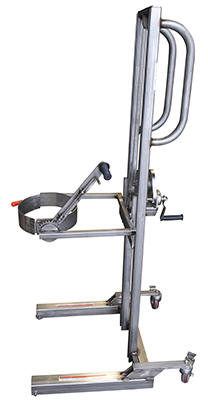

WB01372_.gif (406 bytes) Stainless Steel Variable Height Pail Dispenser


model LLW-PAILD-100-SS

Variable Height Pail Dispensers provides 24 angle settings for dispensing 5 gallon, 11"
diameter, plastic or steel pails. Dispense at any height between 1" and 52" by turning the
hand cable winch. Rolls on 4" poly-on-poly rear swivel casters with total lock and 2" steel
front rigid casters. Stainless steel construction.

Variable Height Pail Dispenser
Model PDF Pour Height
Lowered/ Raised
Cradle Height
Lowered/ Raised
Capacity
(lbs)
Wt.
(lbs)
LLW-PAILD-100 Warranty PDFPhoto GalleryCompliance Certificate 1" to 52" 6" to 62-3/4" 125 139
LLW-PAILD-200 Warranty PDFPhoto GalleryCompliance Certificate 1"to 52" 7-1/8" to 62-3/4" 200 131
Stainless Steel Model
LLW-PAILD-100-SS Warranty PDF 1" to 52" 6" to 62-3/4" 125 139

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
