Tilting Drum Rings - TDR series

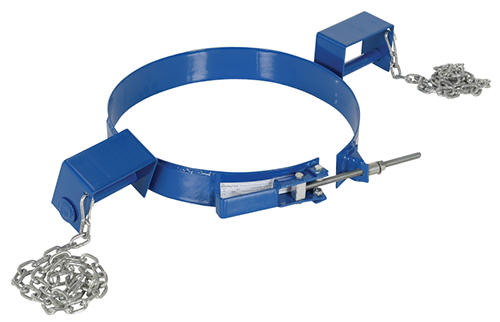

30 GALLON STEEL RING
model TDR-30

Easily transport steel drums with your fork truck and the Tilting Drum Ring. Pivoting fork pockets allow you to manually rotate drum to dispense light materials. To use, slip the band over the belly of the steel drum and tighten the lock to secure the band around the belly of the drum. Usable fork openings are 5-3/4"W x 3"H each. Welded steel construction.

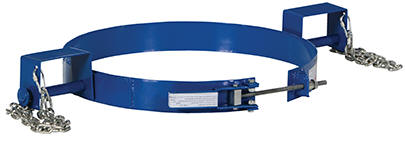

55 GALLON STEEL RING model TDR-55	55 GALLON STAINLESS STEEL RING model TDR-55-SS
55 GALLON GALVANIZED RING model TDR-55-G [Prop 65 Warning]	30 GALLON GALVANIZED RING model TDR-30-G [Prop 65 Warning]
30 GALLON STAINLESS STEEL RING model TDR-30-SS

Tilting Drum Rings
Model	PDF	Acceptable Drum Types	Material & Finish	Capacity (lbs)	Weight (lbs)
TDR-30		30 Gallon Steel	Powder Coat Steel	1,200	22
TDR-55		55 Gallon Steel	Powder Coat Steel	1,200	24
TDR-30-G		30 Gallon Steel	Galvanized Carbon Steel	1,200	23
TDR-55-G		55 Gallon Steel	Galvanized Carbon Steel	1,200	24
TDR-30-SS		30 Gallon Steel	Grade 304 Stainless Steel	1,200	24
TDR-55-SS		55 Gallon Steel	Grade 304 Stainless Steel	1,200	25
* Capacity is based on full drums | Half-full drums are rated at 600 lbs.
