model AIR-THL

The Air Corner Tilter provides ergonomic loading and unloading of bulk containers, gaylords or crates.  Allows two wall accessibility with both pallet jacks and fork trucks.  Constructed of 7 gauge steel, this heavy duty unit has a maximum rated capacity of 1,500 lbs.  and can tilt up to 45.  The tilter is activated by a hand operated control lever or optional foot pedal. The air bag inflates tilting the container automatically as it is unloaded.  As the container becomes lighter, it automatically tilts and the material shifts to the corner of the container where it can be easily removed by manual or mechanical means.  The regulator is factory preset to begin rotating the container when the weight reaches approximately 900 lbs.

Features

  • 45 Tilt
  • Base Size 71"W x 52"D
  • Multi-ply air bag
  • Three position manually operated air valve to activate air bag
  • Adjustable air line filter/regulator assembly

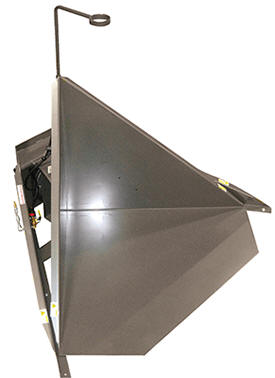

  • Adjustable vacuum wand holder (3-1/2" ID) (not shown)

Options

  • Vibrator (Pneumatic)
  • Foot operated air valve
  • Patented pneumatic safety ratchet



model AIR-PVO

Minimum Requirements

  • 40 psi shop air
Air Corner Tilter
Model PDF's Description Capacity
(lbs)
Wt.
(lbs)
AIR-THL Compliance Certificate 44"Wx44"L hand lever operated 1,500 460
AIR-TFP Compliance Certificate 44"Wx44"L foot treadle operated 1,500 460

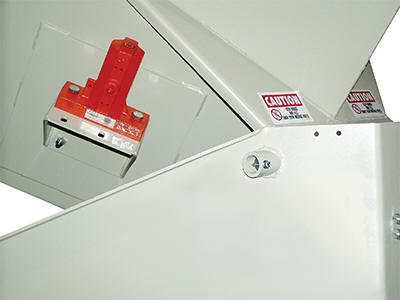

AIR-PVO Photo Gallery Power Vibrator Option --- 30

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

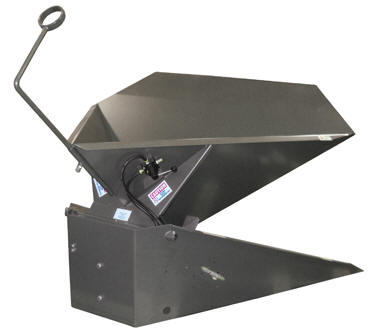

model AIR-THL-SS

The floor level airbag powered tilter provides ergonomic loading and unloading of bulk containers, gaylords, or crates.  Pallet truck and fork truck accessible. Tilts up to 45.  Activated by a hand operated control lever. The air bag inflates tilting the container automatically as it is unloaded.  As the container becomes lighter, it automatically tilts and the material shifts to the corner of the container where it can be easily removed by manual or mechanical means.  The regulator is factory preset to begin rotating the container when the weight reaches approximately 900 pounds.

Stainless Steel Air Corner Tilter
Model PDF's Description Platform
Size (WxL)
Capacity
(lbs)
Wt.
(lbs)
AIR-THL-SS Compliance Certificate hand lever operated 44"x44" 1,500 550

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
