model BTT-6-46

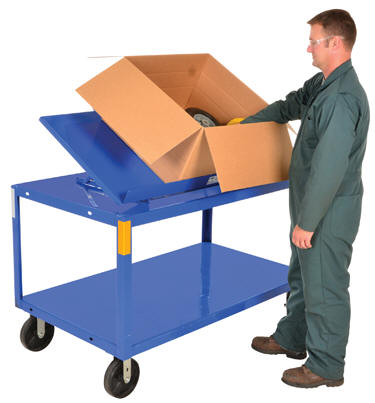

(CART not included)

model BTT-5-36

Bench Top Tilters increase efficiency and help reduce fatigue and potential injury by placing work at a better ergonomic angle.  Loads up to 1,000 pounds may be tilted from 0 to 45.  Heavy-duty steel Bench Top Tilters can be attached to most industrial table tops, work benches and mobile lift tables of sufficient load capacity and surface size.  Pendent hand control with UP and DOWN push buttons is located on an 8 foot cord, maximizing operator convenience.  Flat base plate with slotted holes for installation.  Tilting top is powder coated silver.  Base is painted royal blue.

  • Manually Adjustable Tilter is used for applications requiring only occasional changes in tilt angle.  Tilter is adjustable at 15, 30 or 45 degree angles.  Three inch retaining lip prevents loads up to 600 pounds from sliding off platform.
  • Electro-Mechanical Internal Operating Mechanism will lift a maximum of 500 pounds up to a 45 degree angle from the five inch lowered height.
  • External Operating Mechanism will lift a maximum of 1,000 pounds up to a 45 degree angle from the five inch lowered height.
  • The Bench Top Tilters have a sliding top which tilts within its own base frame.  The center of the platform is kept closer to the center of the base, providing for higher stability than the conventional hinge style tilter

model BTT-10-36

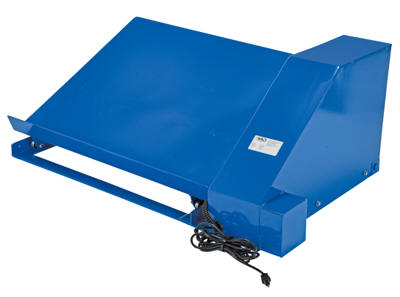

(1,000 lb capacity units have external operation mechanism)

model BTT-10-46


Bench Top Tilters
Model PDF's Platform
of Tilt
Operation Wt.
BTT-6-36 Warranty PDFCompliance Certificate 36"x28"x2" 600 15, 30 & 45 Manual 112
BTT-6-46 Warranty PDFCompliance Certificate 46"x28"x2" 600 15, 30 & 45 Manual 116
BTT-5-36 Warranty PDFCompliance Certificate 36"x28"x5" 500 0 to 45 Linear Actuated 127
BTT-5-46 Warranty PDFCompliance Certificate 46"x28"x5" 500 0 to 45 Linear Actuated 135
BTT-10-36 Warranty PDFCompliance Certificate 36"x28"x3" 1,000 0 to 45 Linear Actuated 196
BTT-10-46 Warranty PDFCompliance Certificate 46"x28"x3" 1,000 0 to 45 Linear Actuated 217

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

Freight Quote


Copyright 2018
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale

BTT series Owners Manual

Attaches To Many Carts & Tables:
