model CART-550-AS

2-speed foot pump automatically shift at 110 pounds

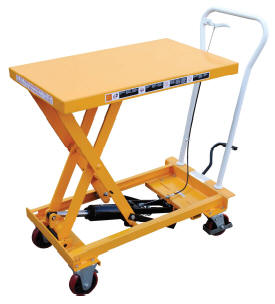

The Auto-Shift Hydraulic Elevating Cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to upload at destination. The two (2) speed auto-shift foot pump includes a soft-lowering down valve. CART-550-AS: Number of strokes without 13 and with weight 25. CART-1000-LD-AS: Number of strokes without 15 and with weight 62. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Models include 5" diameter casters.


Foot Operated Caster Lock


Bicycle Style Release Handle


Stroke:

2" per pump when empty

1" per pump with load over 110 lbs.


Auto-Shift Hydraulic Elevating Cart
Model PDFs Platform Size
(WxL)
Capacity
(lbs)
Service
Range
Foot Pump
Speed
Wt.
(lbs)
CART-550-AS Warranty PDFCompliance Certificate 19-1/2"x32-1/2" 550 12-1/2"to 36" Two 216
CART-1000-LD-AS Warranty PDF 31-1/2" x 63" 1,000 15" to 36" Two 300

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

Try Our:  DC Powered or Lift & Tilt Carts
