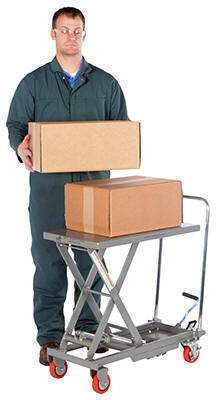

ALUMINUM SCISSOR CART
model CART-200-ALUM

Hydraulic Elevating Carts are well suited for manufacturing and distributing industries. Material can be easily loaded onto a cart from a table, lowered to safe transporting height, and raised to unload at a destination. Foot pump includes a soft-lowering down valve for precise positioning and the perfect ergonomic height. The unit rolls on (4) polyurethane casters; two (2) swivel with brakes and two (2)rigid. The tables can be raised and lowered with a single speed foot pump, two speed foot pump or a two speed auto shifter that automatically shifts when the table is loaded. Steel construction with chrome platform and handle on all models, except model CART-200-ALUM which includes an aluminum platform surface. Models with suffix FP have a painted platform.




CART-400



CART-750-TS



CART-1000-TS



CART-1000-LD



CART-1750



CART-4000



CART-200-D



CART-800-D-TS




CART-1500-D-TS





Hydraulic Elevating Carts

Single Scissor Steel Carts

Model PDFs Caster Size & Material Platform Size (WxL) Capacity (lbs) Service Range Foot Pump Speed Wt. (lbs)
CART-400 Warranty PDFCompliance Certificate 4” Poly-on-Poly 17-1/2"x27-1/2" 400 8-3/4"to29" Single 134
CART-750-TS Warranty PDFCompliance Certificate 5” Poly-on-Poly 19-3/4"x32 750 15-1/2"to35-1/2" Two 230
CART-1000-TS Warranty PDFCompliance Certificate 5” Poly-on-Poly 19-3/4"x32" 1,000 15-1/2"to35-1/2" Two 221
CART-1000-LD Warranty PDFCompliance Certificate 5” Poly-on-Poly 31-1/2" x 63" 1,000 15"to36" Single 349
CART-1750 Warranty PDFCompliance Certificate 5” Poly-on-Steel 20"x39-1/2" 1,750 17"to40" Single 272
CART-4000 Warranty PDFCompliance Certificate 6” Poly-on-Steel 24"x47" 4,000 15-1/2"to40" Two 460
CART-500-2033-FP Warranty PDFCompliance Certificate 5” Poly-on-Steel 20”x33” 500 13”to35” Two 322
CART-1000-2040-FP Warranty PDFCompliance Certificate 5” Poly-on-Steel 20”x40” 1,000 15”to39” Two 361
CART-2000-2040-FP Warranty PDFCompliance Certificate 5” Poly-on-Steel 20”x40” 2,000 15”to39” Two 374
CART-2000-3240-FP Warranty PDFCompliance Certificate 5” Poly-on-Steel 32”x40” 2,000 15”to39” Two 440
CART-2000-4242-FP Warranty PDFCompliance Certificate 5” Poly-on-Steel 42”x42” 2,000 15”to39” Two 461
CART-2500-2040-FP Warranty PDFCompliance Certificate 5” Poly-on-Steel 20”x40” 2,500 15”to39” Two 392

Double Scissor Steel Carts

CART-200-D Warranty PDFCompliance Certificate 4” Poly-on-Poly 17-1/2"x27-1/2" 220 10"to51" Single 164
CART-800-D-TS Warranty PDFCompliance Certificate 5” Poly-on-Poly 20"x35-1/2" 800 15-1/2"to51-7/8" Two 275
CART-1500-D-TS Warranty PDFCompliance Certificate 6” Poly-on-Steel 24"x47-1/2" 1,500 19"to68" Two 598
CARTD-750-2040-FP Warranty PDFCompliance Certificate 5” Poly-on-Steel 20" x 40" 750 14"to42" Two 358
CARTD-1000-2033-FP Warranty PDFCompliance Certificate 5” Poly-on-Steel 20"x33" 1,000 14"to42" Two 347

Aluminum Scissor Cart

CART-200-ALUM Warranty PDFCompliance Certificate 4” Poly-on-Poly 15-3/4"x27-1/2" 220 8-1/2"to29" Single 102

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
