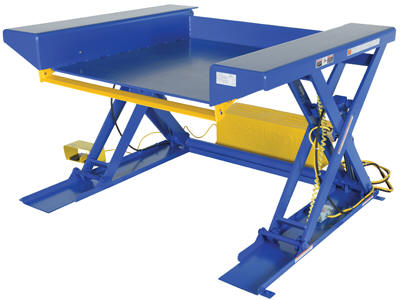

WB01372_.gif (406 bytes) Ground Lift Scissor Table - EHLTG series

model EHLTG-4450-2-36

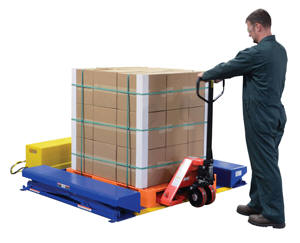

Ground Lift Scissor Tables are designed for use when powered fork trucks are not available. Pallets can be loaded onto table with pallet trucks and raised to an ergonomic working height. Safety features include; front side electric toe guard to protect pinch points during lowering of the table, safety velocity fuse to stop falling due to loss of hydraulic pressure, foot control, maintenance prop, and upper travel limit switch to stop table at maximum height reducing motor wear. 2HP, 460V, 3-phase, 60 Hz totally enclosed motor is remote and can be located up to eight feet away from table.  3000 psi hydraulic components rating. Additional voltages and optional accordion skirting available, contact factory.

model EHLTG-5250-2-36

model EHLTG-5250-4-36

EHLTG Galvanized
[Prop 65 Warning]

Standard Specifications:

  • Industrial quality, 56 Frame, 2 HP Motor delivers best torque with minimal amperage draw and maximum life
  • Voltage - 460 Volt, 60 cycle, 3 phase
  • External Power Unit
  • (NEMA-1) Foot control with guard is standard. (NEMA-4) Push button hand control is available.
  • 24 Volt, fused control circuit.
  • Hydraulic actuators have internal safety velocity fuse w/ stainless steel spring
  • Conveniently located air bleed screw on hydraulic actuators
  • Replaceable deck, main axle pins and bearing
  • Rollers - Cold finished steel with case carburizing to .010 inch with Rockwell "C" 40
  • Pins - Cold rolled and finished to bearing manufacturer's specifications
  • Bearings - Self-lubricating with compressive strength of 44,000 psi
  • Swaged on high pressure hose fittings, Pump intake/return hose is 1/2"
  • Welding to meet A.W.S.

Ground Lift Scissor Table Survey Sheet

Options For Electric Hydraulic Equipment
(Available at the time of sale for most of the
powered products listed in the Ergonomic

Ground Lift Scissor Table
Model PDF's Platform Size (WxL) Capacity (lbs) Raised Height Lowered Height Overall Size (WxLxH) Wt.
EHLTG-3850-2-36 Warranty PDFCompliance Certificate 38" x 51" 2,000 lb. 36" " 61" x 56" x 8" 1602
EHLTG-3850-4-36 Warranty PDFCompliance Certificate 38" x 51" 4,000 lb. 36" " 61" x 56" x 8" 1671
EHLTG-4450-2-36 Warranty PDFCompliance Certificate 44"x51-1/2" 2,000 36" " 67"x56"x8" 1573
EHLTG-4450-4-36 Warranty PDFCompliance Certificate 44"x51-1/2" 4,000 36" " 67"x56"x8" 1707
EHLTG-5250-2-36 Warranty PDFCompliance Certificate 52"x 51-1/2" 2,000 36" " 75"x56"x8" 1717
EHLTG-5250-4-36 Warranty PDFCompliance Certificate 52"x 51-1/2" 4,000 36" " 75"x56"x8" 1729
EHLTG-4470-2-48 Warranty PDFCompliance Certificate 44"x73" 2,000 48" " 67"x78"x10-7/16" 2216
EHLTG-4470-4-48 Warranty PDFCompliance Certificate 44"x73" 4,000 48" " 67"x78"x10-7/16" 2242
EHLTG-5270-2-48 Warranty PDFCompliance Certificate 52"x73" 2,000 48" " 75"x78"x10-7/16" 2322
EHLTG-5270-4-48 Warranty PDFCompliance Certificate 52"x73" 4,000 48" " 75"x78"x10-7/16" 2348
EHLTG-44-SB Steel Rollover Bridge For 44"W Decks (12" Long) / 3,000 lbs. capacity 36
EHLTG-52-SB Steel Rollover Bridge For 52"W Decks (12" Long) /3,000 lbs. capacity 42

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
