Model: HYD-10

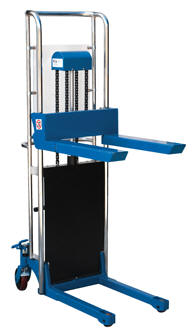

The Hefti-Lift units provide reliable powerful lifting when moving and positioning loads.  The manual hydraulic foot pump yields 3/4 of platform travel per stroke, auto-shift models feature a two speed foot pump.The units roll smoothly on two rigid and two swivel poly-on-steel casters with foot operated brake.  The units are designed of welded steel construction with chrome platform uprights (except model HYD-10-DA-SS)  Each fork is 4-1/2"W x 2-1/2"H, the fork length is the same as the platform length.  Overall fork width is 22".  Not for use with pallets.

Stainless Steel units are compact, lightweight, and capable of turning in a small radius when space is limited.  A built-in automatic load check valve is included for improved safety.  Model HYD-5-SS features a hydraulic foot pump, while model HYD-10-DA-SS comes with a dual acting manual hydraulic hand pump.

Air Powered units are great in manufacturing or distributing facilities when space is limited.  The single speed foot pump and hand held push button control (reciprocating air/oil power) raise forks to the desired location.  The foot pump can be utilized to maneuver the table height to a precise position.  The unit requires a minimum hose diameter of 1/4" and air pressure of 72 to 100 psi.


Compact Hefti-Lift
Model HYD-3




Model HYD-5




model HYD-15



|
Extended Platform Hefti-Lift
Models: HYD-5-EP & HYD-10-EP




Partially Stainless Steel Hefti-Lift
model HYD-5-PSS




Stainless Steel Hefti-Lift
model HYD-10-DA-SS



Air Powered Hefti-Lift
model HYD-10-AIR





Hefti-Lift
Model PDF Platform Service Range Capacity (lbs) Operation Weight (lbs)
Steel
HYD-3 Compliance Certificate 23"x24" 3-1/2" to 35" 880 Foot Pump 190
HYD-5 Warranty PDFCompliance Certificate 23"x24" 4" to 44" 880 Foot Pump 246
HYD-10 Warranty PDFCompliance Certificate 23"x24" 4" to 59" 880 Foot Pump 280
HYD-15 Warranty PDFCompliance Certificate 23"x31 1/2" 4" to 63" 1,500 Foot Pump 479

 Extended Length

HYD-5-EP Warranty PDFCompliance Certificate 23"x40" 3-1/2" to 44" 400 Foot Pump 293
HYD-10-EP Warranty PDFCompliance Certificate 23"x40" 3-1/2" to 59" 300 Foot Pump 308

 Auto-Shift

HYD-5-AS Warranty PDF 23"x24" 4" to 44" 880 Two-Speed Foot Pump 251
HYD-10-AS Warranty PDF 23"x24" 4" to 59" 880 Two-Speed Foot Pump 286
Partially Stainless Steel
HYD-5-PSS Warranty PDFCompliance Certificate 21"x24" 3-1/2" to 45-5/8" 450 Foot Pump 236
Stainless Steel
HYD-5-SS Warranty PDFCompliance Certificate 23-7/8"x21-1/4" 3-1/2" to 45-5/8" 450 Foot Pump 230
HYD-10-DA-SS* Warranty PDFCompliance Certificate --N/A-- 3-1/8" to 59" 800 Hand Pump 270
Air Powered
HYD-5-AIR Warranty PDFCompliance Certificate 23"x24" 3-1/2" to 44" 880 Air 261
HYD-10-AIR Warranty PDFCompliance Certificate 23"x24" 3-1/2" to 59" 880 Air 295

*Overall fork width 22, length 20-7/8

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

WB01372_.gif (406 bytes) DC Powered Hefti-Lifts with Attachment Options



model HYD-10-DC

DC powered portable hydraulic lifts are user friendly providing reliable, powerful lifting when moving and positioning loads. Ideal for working in confined spaces and eliminates manual handling problems and injuries. Includes removable platform for operations requiring forks (excpt HYD-CB-10-DC). Units roll easily on two (2) rigid and two (2) swivel poly-on-steel casters and include a foot operated brake.  Not for use with pallets.  All welded steel construction with chrome platform and uprights.  Each fork is 4-1/2"W x 2-1/2"H, the fork length is the same as the platform length. Overall fork width is 22".  Units run off one (1) 12V battery. Includes battery charger, battery charge indicator and emergency on/off switch.  Variety of attachments available.

304 stainless steel unit are ideal for food, pharmaceutical, chemical and clean room applications. Unit rolls easily on (2) two rigid and (2) two total lock swivel casters.



model HYD-CB-10-DC


model HYD-10-DC-SS

                     Attachment Options

Single Spindle (HYDC-SPIN)

Double Spindle (HYDC-DSPIN)

Roller Platform (HYDC-RP)

Ball Transfer Platform (HYDC-BTP)

V Block Platform (HYDC-VBLK)

Rubber Roller (HYDC-RR)

V-Shape Fork (HYDC-VFRK)

Stainless Steel Platform (HYDC-SSP)

Fork Hook (HYDC-FRKHK)




DC Powered Hefti-Lift
Model PDF Platform Service Range Capacity
(lbs)
Operation Weight (lbs)
HYD-10-DC Warranty PDFCompliance Certificate 22-1/8"x25-3/4" 3-1/2" to 59" 880 12V DC Power 330
HYD-CB-10-DC* Warranty PDFCompliance Certificate --N/A-- 2-3/4" to 55-1/2" 550 12V DC Power 566
 Stainless Steel Hefti-Lift
HYD-10-DC-SS Warranty PDFCompliance Certificate 22"x25-3/4" 3-1/2" to 59" 880 12V DC Power 257
 Attachment Options
HYDC-SPIN Single Spindle 10
HYDC-DSPIN Double Spindle 18
HYDC-VFRK V-Shape Fork 28
HYDC-RP Roller Platform 44
HYDC-BTP Ball Transfer Platform 34
HYDC-SSP Stainless Steel Platform 22
HYDC-VBLK V Block 27
HYDC-RR Rubber Roller 22
HYDC-FRKHK Fork Hook 15

*Overall fork width 22, Length 25-3/4

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

Freight Quote



Copyright 2018
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale



HYD-5 & HYD-10 Owners Manual

HYD-10-DC Owners Manual

Remove platform when forks are needed.
