model CART-400-LA

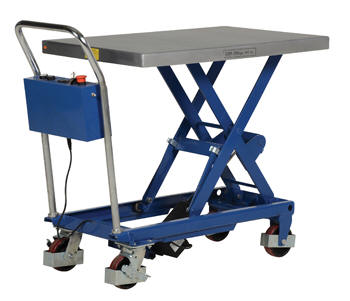

Transport material from workstation to workstation with ease.  Platform is raised and lowered with an electric linear actuator for precise positioning.  Linear actuator will not allow platform to drift down, a common problem with hydraulic carts.

CART-400-LA and CART-400-D-LA linear actuated carts are powered with (2) 12V AGM batteries and features a bench type charger.  Emergency stop button on control box is standard.

CART-500-LA linear actuator cart is powered with Lithium battery and features an on-board battery charger.

Model CART-500-LA-PSS: Platform, handle, base frame, caster brackets, and hardware are all stainless steel. Scissor legs are zinc plated. Battery pack, charger, and hand control are plastic. Linear actuator is plastic with a chrome-plated piston. Wheels are poly-on-poly.

model CART-500-LA

model CART-500-LA-PSS

model CART-400-D-LA

Linear Actuated Elevating Cart
Model PDFs Platform Size
 Steel Construction
CART-400-LA Warranty PDFCompliance Certificate 23-5/8"x35-1/2" 400 15" 34" 225
CART-400-D-LA Warranty PDFCompliance Certificate 23-5/8"x35-1/2" 400 15" 50" 310
CART-500-LA Warranty PDFCompliance Certificate 19-1/2"x32" 500 15" 33" 248

 Partially Stainless Steel Construction

CART-500-LA-PSS Warranty PDFCompliance Certificate 19-1/2"x32" 500 15" 33" 248

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
