model AIR-800-D

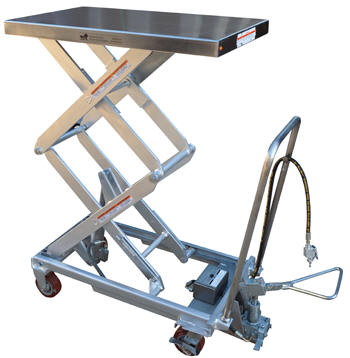

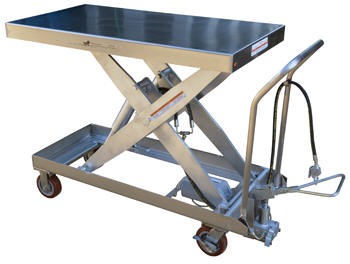

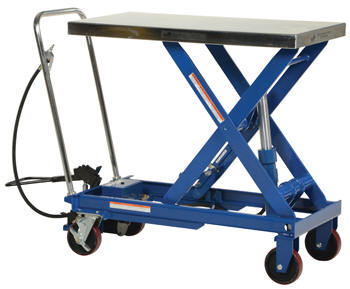

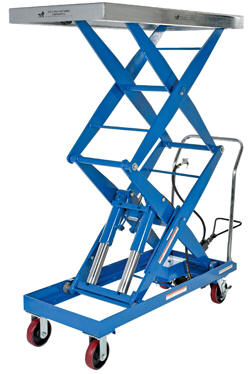

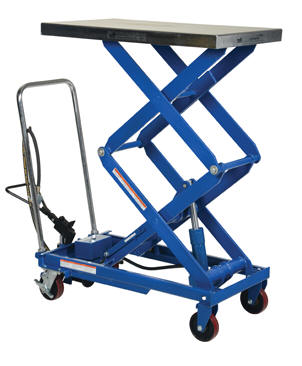

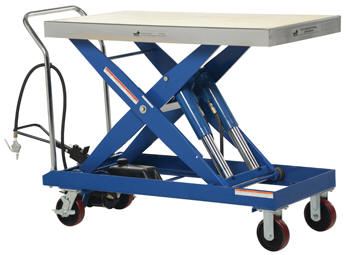

Utilize the two speed foot pump for minor height adjustments and the factory air/oil power for effortless lifting up to 2,000 uniform pounds. Partially stainless steel carts are available. On suffix PSS, the platform, handle, base frame, caster brackets, and hardware are all stainless steel. Air pump, hydraulic cylinder, scissor legs, and foot pedal are zinc plated. Wheels are poly-on-poly.



model AIR-800-D-PSS


model AIR-1000-LD


model AIR-1750



model AIR-1750-PSS



model AIR-2000



model AIR-2000-PSS



model AIR-1000-LD-PSS


model AIR-1000-PSS



model AIR-1500-D

Air Hydraulic Carts
Model PDF's Platform Size
(WxL)
Capacity
(lbs)
Service
Range
Caster
Size
Wt.
(lbs)
AIR-800-D Warranty PDFCompliance CertificatePhoto Gallery 20"x35-1/2" 800 13-3/4"to51" 5"x1-1/2" 272
AIR-800-D-PSS Warranty PDFCompliance CertificatePhoto Gallery 20"x35-1/2" 800 13-3/4"to51" 5"x1-1/2" 267
AIR-1000 Warranty PDFCompliance Certificate 19-11/16"x34-1/4" 1,000 15-3/4"to35-7/16" 5"x1-1/2" 180
AIR-1000-LD Warranty PDFCompliance CertificatePhoto Gallery 31-1/2"x63" 1,000 12-1/8"to35-1/2" 5"x1-1/2" 318
AIR-1500-D Warranty PDFCompliance CertificatePhoto Gallery 24"x47-1/4" 1,500 19-1/2"x67" 6"x1-1/2" 538
AIR-1500-D-PSS Warranty PDFCompliance CertificatePhoto Gallery 24"x47-1/4" 1,500 19-1/2"x67" 6"x1-1/2" 515
AIR-1750 Warranty PDFCompliance CertificatePhoto Gallery 20"x39-1/2" 1,750 14-1/4"to39-1/2" 6"x1-1/2" 312
AIR-1750-PSS Warranty PDFCompliance CertificatePhoto Gallery 20"x39-1/2" 1,750 14-1/4"to39-1/2" 6"x1-1/2" 264
AIR-2000 Warranty PDFCompliance CertificatePhoto Gallery 24"x47-1/4" 2,000 15"to39-1/2" 6"x1-1/2" 400
AIR-2000-PSS Warranty PDFCompliance CertificatePhoto Gallery 24"x47-1/4" 2,000 15"to39-1/2" 6"x1-1/2" 394
AIR-1000-LD-PSS Warranty PDFCompliance CertificatePhoto Gallery 31-1/2"x63" 1,000 12-1/8" to 35-1/2" 5"x1-1/2" 340
AIR-1000-PSS Warranty PDFCompliance CertificatePhoto Gallery 19-11/16"x32-1/4" 1,000 15-3/4"to35-7/16" 6"x2" 181

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate




model CART-660-M

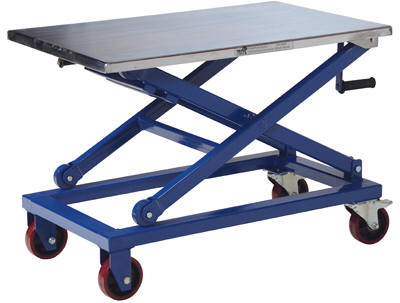

Raise and lower material quickly and easily with Mechanical Scissor Carts.  Carts roll smoothly on two rigid and two swivel poly-on-ploy casters.  Mechanical screw drive provides precise positioning with no downward drift.  The partially stainless steel cart features a stainless steel platform, frame, handle, caster rigs and hardware.  Crank assembly and scissor legs are zinc plated/painted.



model CART-660-M-PSS

Mechanical Scissor Cart
Model PDFs Platform
Size (WxL)
Capacity
(lbs)
Lowered
Height
Raised
Height
Wt.
(lbs)
CART-660-M Warranty PDFCompliance Certificate 23-1/2"x37" 660 18" 39-1/2" 190
Partial Stainless Steel Construction
CART-660-M-PSS Warranty PDFCompliance Certificate 23-1/2"x37" 660 17-1/4" 39-1/4" 148

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

Try Our:  DC Powered or Lift & Tilt Carts
