WB01372_.gif (406 bytes) Electric Hydraulic Lift & Tilt Scissor Table - EHLTT series

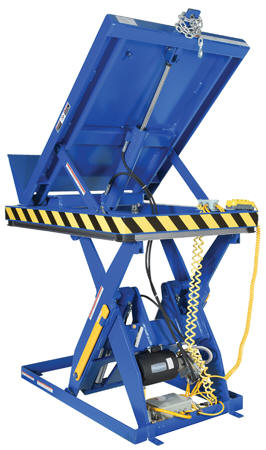

model EHLTT-4848-1-47

Performs both lifting and tilting operations. 45 and 90 tilt available. Restraining chain and 12" high lip keep load in place during tilting. Safety features include: electric toe guard to shield worker from pinch points during lowering of table, safety velocity fuses to stop travel due to loss of hydraulic pressure, 4 push-button hand pendent control on an 8 foot coil cord, upper limit switch to stop travel at maximum height reducing motor wear and maintenance prop.  End tilt standard, side tilt available. Optional accordion skirting available for both the lifting and tilting portions of the table, contact factory.  See option here.

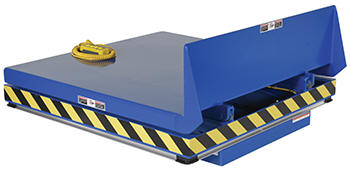

model EHLTT-3648-4-47

EHLTT Survey Sheet

Design Features:

  • Steel Cradle is 12" high, open design allows loading/unloading from three sides.
  • Unique link tilt design center of load remains closer to the center of the table to increase safety and minimize space requirements.
  • Safety Velocity fuse in cylinder prevents drop of table in event of hydraulic failure.
  • Slot lock and restraint chain.
  • NEMA-4 hand control provides a weatherproof case for years of durability.   Fused 24 Volt control helps to ensure operator safety.
  • Perimeter pinch point guard
  • Industrial quality, 56 frame, 2 HP motor delivers best torque with minimal amperage draw and maximum life.
  • Upper Travel limit switch is field adjustable
  • 3000 PSI component rating on crimped hoses and fittings.

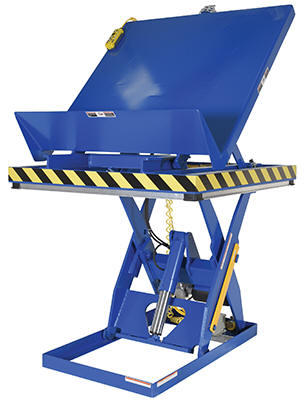

model EHLTT-3648-2-47

model EHLTT-4848-2-47

model EHLTT-4848-3-47

model EHLTT-4848-4-47

model EHLTT-H-4848-2-47

Options For Electric Hydraulic Equipment
(Available at the time of sale for most of the
powered products listed in the Ergonomic


Lift & Tilt Scissor Tables
Model PDF's Platform size Capacity (lbs) Raised Height Lowered Height Overall
 45 End Tilt
EHLTT-3648-1-47 Compliance Certificate 36"x48" 1000 47" 11" 36"x56" 1208
EHLTT-4848-1-47 Compliance Certificate 48"x48" 1000 47" 11" 48"x56" 1228
EHLTT-3648-2-47 Compliance Certificate 36"x48" 2000 47" 11" 36"x56" 1204
EHLTT-4848-2-47 Compliance Certificate 48"x48" 2000 47" 11" 48"x56" 1235
EHLTT-3648-3-47 Compliance Certificate 36"x48" 3000 47" 11" 36"x56" 1299
EHLTT-4848-3-47 Compliance Certificate 48"x48" 3000 47" 11" 48"x56" 1251
EHLTT-3648-4-47 Compliance Certificate 36"x48" 4000 47" 11" 36"x56" 1206
EHLTT-4848-4-47 Compliance Certificate 48"x48" 4000 47" 11" 48"x56" 1282
EHLTT-4848-5-47 Compliance Certificate 48"x48" 5000 49" 13" 48"x56" 1482
 45 Side Link Tilt
EHLTTS-3654-2-48 Compliance Certificate 36"x54" 2000 48" 12" 38"x54" 1238
EHLTTS-3654-4-48 Compliance Certificate 36"x54" 4000 48" 12" 38"x54" 1500
 90 Hinge Tilt
EHLTT-H-3648-2-47 Compliance Certificate 36"x49-3/8" 2000 47" 11-1/4" 36"x 57-5/8" 1179
EHLTT-H-4848-2-47 Compliance Certificate 48"x49-3/8" 2000 47" 11-1/4" 48"x 57-5/8" 1268
EHLTT Options
Model PDF's Description Wt.
FC-4 Compliance Certificate Four pedal foot control (lift & tilt products) 6
EHLTT-ROTARY-WMPB Compliance Certificate Air/Oil power with pneumatic push button 36

 Filter- Regulator - Lubricator Required To Operate Unit

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

Freight Quote


Copyright 2019
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale

EHLTT Owners Manual

EHLTT Survey Sheet


Accordion Skirting
(gussets required)

Built In Carousels

Foot Control
Replaces the standard hand control if desired

Wireless Remote Controls
Click Here)

Integrated Scales (click here)

Fork Pockets
You can add these optional fork pockets for easy transportation.
