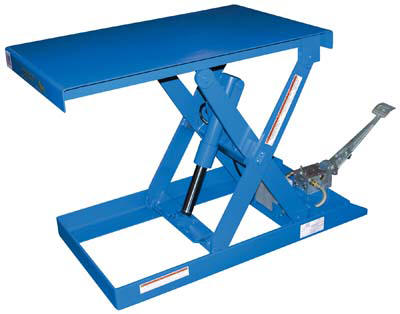

WB01372_.gif (406 bytes) Foot Pump Scissor Table - Model SCTAB-400

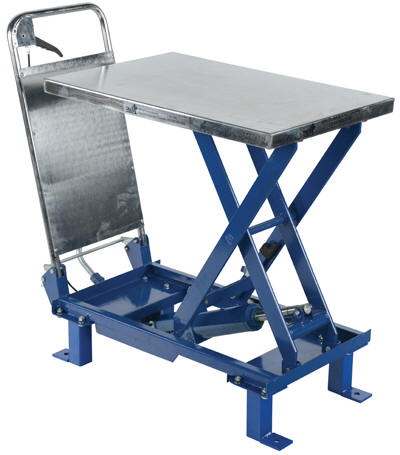

model SCTAB-400

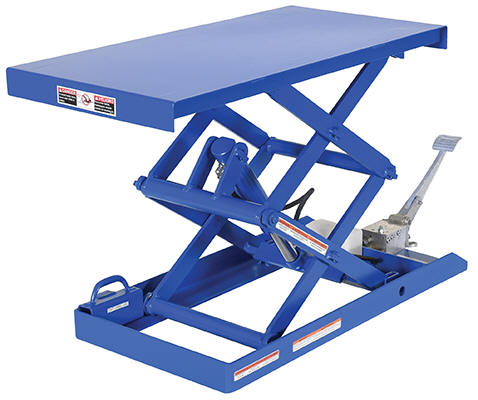

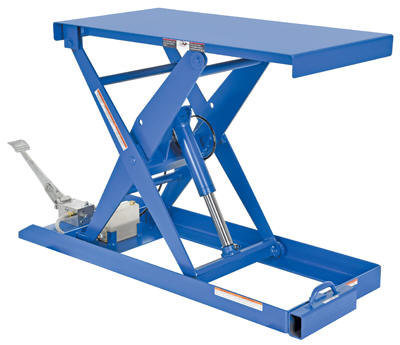

Foot Pump Scissor Lift Tables are used by all types of manufacturing and warehousing facilities.Features torsion tubes for side to side stability, pressure flow control valve for controlled lowering, and foot pump. Rugged welded steel construction. Painted blue finish.DC Scissor Lift Tables utilizes (1) 12V battery. On-board charger and battery charge indicator included.



model SCTAB-500-2033-FP




model SCTAB-750D




model SCTAB-800D




model SCTAB-1000-2040-FP




model SCTAB-2000-4242-FP





Manual Foot Pump
Model Number PDF's Foot Pump
Speed
Platform
(WxL)
Capacity
(lbs)
Lowered
Height
Raised
Height
Wt.
(lbs)
SCTAB-400 Warranty PDFCompliance Certificate Single 17-3/4"x27-5/8" 400 8-1/2" 28-13/16" 138
SCTAB-800D Warranty PDFCompliance Certificate Two 20"x35-1/2" 800 15-7/16" 52" 290
SCTAB-500-2033-FP Warranty PDF Two 20x33 500 6" 28" 263
SCTAB-1000-2040-FP Warranty PDF Two 20x40 1000 8" 32" 298
SCTAB-2000-2040-FP Warranty PDF Two 20x40 2000 8" 32" 314
SCTAB-2000-3240-FP Warranty PDF Two 32x40 2000 8" 32" 379
SCTAB-2000-4242-FP Warranty PDF Two 42x42 2000 8" 32" 400
SCTAB-2500-2040-FP Warranty PDF Two 20x40 2500 8" 32" 332
SCTABD-750-2040-FP Warranty PDF Two 20x40 750 7" 35" 291
SCTABD-1000-2033-FP Warranty PDF Two 20x33 1000 7" 35" 288
12V DC Powered   Lift Speed
SCTAB-500-2033-DC Warranty PDF 4 sec. 20x33 500 6" 28" 362
SCTAB-1000-2040-DC Warranty PDF 4 sec. 20x40 1000 8" 32" 402
SCTAB-2000-2040-DC Warranty PDF 7 sec. 20x40 2000 8" 32" 414
SCTAB-2000-3240-DC Warranty PDF 7 sec. 32x40 2000 8" 32" 480
SCTAB-2000-4242-DC Warranty PDF 7 sec. 42x42 2000 8" 32" 502
SCTAB-2500-2040-DC Warranty PDF 12 sec. 20x40 2500 8" 32" 433
SCTABD-750-2040-DC Warranty PDF 4 sec. 20x40 750 7" 35" 391
SCTABD-1000-2033-DC Warranty PDF 4 sec. 20x33 1000 7" 35" 388

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

back to top ^

Freight Quote



Copyright 2018
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale



SCTAB series Owners Manual

SCTAB-FP series Owners Manual

SCTAB-DC series Owners Manual

CHK Owners Manual

Auto-Shifting Foot Pump Instruction Manual (For All Foot Pump SCTAB Models)


SCTAB Survey Sheet
to help you choose the correct model.

Options

The optional CA-40-2 Carousel can be put in the SCTAB-2000
