WB01372_.gif (406 bytes) Counter-Balanced Powered Drive Lift - S-CB series

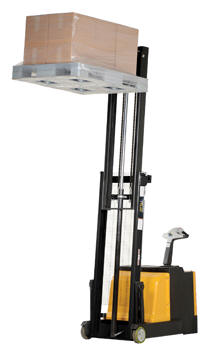

model S-CB-118

Counter balance design is ideal for die loading, machine feeding, and for loading and unloading trucks. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases, the handle. Powered lift has four 6V batteries (except S-CB-62 & S-CB-118, which uses  two 12V batteries), an integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer & load wheels.  Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently. Adjustable forks suitable for different pallets. Individual forks are 3⅛" (S-2CB series 4") wide  Overall size is 32-1/4."W x 78"L. (S-2CB series 35-1/2"w x 110"L) A high level of serviceability simplifies maintenance and prolongs equipment life. Easy access battery compartment simplifies battery maintenance.

Proprietary safety-enhancing emergency reverse function
When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions.
This state-of-the-art safety device provides a level of operator protection which is unmatched by any unit on the market today.

Battery options are available; Absorbed Glass Matt, suffix AGM. Batteries are completely maintenance free. Sealed construction eliminates periodic watering and corrosive acid fume spills.

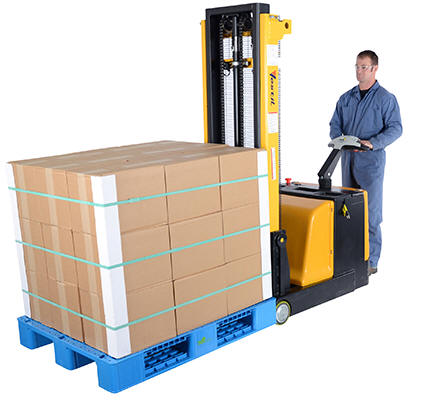

model S-2CB-62



model S-2CB-118


Optional 42" Long Forks (only for model S-2CB-62 or 118)
model S
-2CB-42-FK


S-CB-118 Owner's/Operators Manual


Counter-Balanced Powered Drive Lift
Model PDFs Fork Size
(WxL)
Lowered
Height
Raised
Height
Capacity
0"-62"
Raised Ht.
Capacity
62"-118"
Raised Ht.
Wt.
(lbs)
S-CB-62 Warranty PDFCompliance Certificate 6-3/8 to 23-5/8"x30" 1-3/16" 62" 1,100 lbs. -- 1817
S-CB-118 Warranty PDFCompliance Certificate 6-3/8 to 23-5/8"x30" 1-3/16" 118" 1,100 lbs. 500 lbs. 2012
AGM-UPG-2-12V Compliance Certificate AGM Battery Upgrade (2x12V) w/ purchase of above units 80
S-2CB-62* Warranty PDFCompliance Certificate 8-3/8 to 23-1/4"x36-1/4" 2" 62" 2,000 lbs. -- 2774
S-2CB-118* Warranty PDFCompliance Certificate 8-3/8 to 23-1/4"x36-1/4" 2" 118" 2,000 lbs. 1,000 lbs. 2883
S-2CB-42-FK Warranty PDFCompliance Certificate Optional 42" Long Forks (only for model S-2CB-62 or 118) 1,200 lbs. 600 lbs. 199
AGM-UPG-4-6V Compliance Certificate AGM Battery Upgrade (4x6V) w/ purchase w/ new unit

*Includes rider platform (ground clearance 1-1/2")

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate



model S-CB-62-SDC

Ideal for confined areas, placing drums in cabinets, loading and unloading drums on/off pallets and scales.  Transport one (1) 30 or one (1) 55 gallon steel, plastic, or fiber drums with ease.  Two (2) 12V DC (lead acid batteries) drive and lift motor handles heavy-duty jobs.  Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn.

Counter-Balanced Drum Lifters (Powered Lift & Power Drive)
Model PDFs Description Uniform
Capacity
Service
Range
Wt.
(lbs)
S-CB-62-SDC Warranty PDFCompliance Certificate Single Grip 1,000 lbs. 0"-62" 1797
S-CB-62-DDC Warranty PDFCompliance Certificate Dual Grip 1,000 lbs. 0"-62" 1847

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
