model SLNM-63-AA


model SLNM-63-FF


model SLNM-98-AA


model SLNM-118-FF

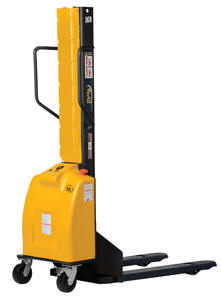

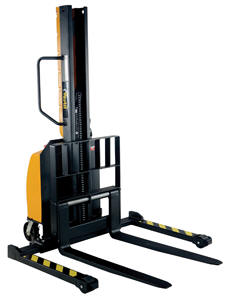

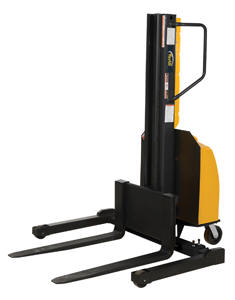

Narrow Mast Semi-Electric Stackers with Powered Lift will raise and lower loads quickly and easily. Material push operation stackers are made using high quality material and parts. All models are easily maneuverable using the standard pulling handle. SLNM stackers are highly efficient and durable. Semi-electric stackers use one 12V battery. Integral battery charger and battery level gauge.


model SLNM15-63-AA


Narrow Mast Stacker with Power Lift
Model PDFs Overall Fork Size (WxL) Lowered Height Raised Height *Capacity (lbs)
0"-63" RH
*Capacity (lbs)
63"-118" RH
Wt.
(lbs)
 Adjustable Forks/Adjustable Support Legs (works with pallets & skids)
SLNM-63-AA Warranty PDFCompliance Certificate 27"x30" 2" 63" 1,000 - 610
SLNM15-63-AA Warranty PDFCompliance Certificate 27"x36" 2" 63" 1,500 - 630
SLNM-98-AA Warranty PDFCompliance Certificate 27"x36" 2" 98" 1,500 1,000 680
SLNM-118-AA Warranty PDFCompliance Certificate 27"x36" 2" 118" 1,500 1,000 730
 Fixed Forks Over Fixed Support Legs (works with skids only)
SLNM-63-FF Warranty PDFCompliance Certificate 26-3/4"x45" 3-1/4" 63" 1,000 - 598
SLNM15-63-FF Warranty PDFCompliance Certificate 26-3/4"x45" 3-1/4" 63" 1,500 - 620
SLNM-118-FF Warranty PDFCompliance Certificate 26-3/4"x45" 3-1/4" 118" 1,500 1,000 720
 Optional Battery Upgrade (must be purchased with new unit)
AGM-UPG-SL AGM Battery Upgrade (1x 12V) 80

*Uniform Capacity at specific raised height

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
