(Enter a Model Number or Keyword)




model S-2001

  • Minimize Packaging Time

  • Secure Contents Effectively

  • User Friendly Controls

  • Stainless Steel Strapping Surface

  • Portable for Convenience

  • Easy Access for Reloading Strapping

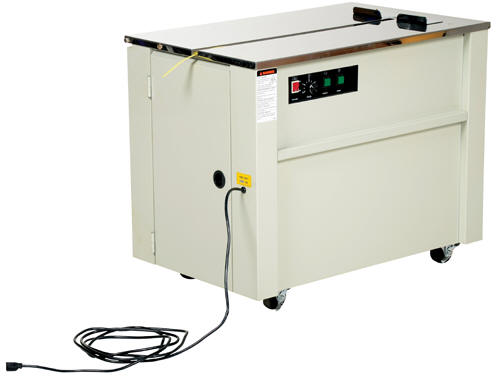

The fully portable strapping machine dispenses, tightens, and seals economical polypropylene strapping around packages or bundles.  This Strapping Machine automatically tensions strap and joins the ends with a secure heat weld for content security.  The unit features a stainless steel strapping surface and easy access for reloading strapping.  The motor automatically switches off when not in use.  As the strap is inserted, the motor automatically restarts.  Strap tension is adjustable 11 to 140 pounds.  Strapping core size is diameter/width (in.) 8" x 8" or 9" x 8". Polypropylene strapping available separately.



Semi-Automatic Strapping Machine
Model PDFs Overall
S-2001 Warranty PDFPhoto Gallery 35-1/2"Wx23"Lx30"H 3/8" & 1/2" 115V 3"x1-1/4" 268

WB01372_.gif (406 bytes) Semi-Automatic Pallet Probe Strapping Machine


model DBA-130

  • User Friendly
  • Tension up to 175lbs.
  • 40" Foldable Arm Probe
  • Uses 3/8", 1/2" and 5/8" Poly Strapping

Eliminate hand strapping and speed up the process of pallet strapping with this Semi-Automatic Pallet Strapper. Unit automatically feeds the desired polypropylene strap through the pallet, tightens and seals the strap around the pallet. 115V power supply.

The pallet strapping process is as follows: (1) Unfold pallet probe, (2) Push pallet probe into pallet, (3) Feed polypropylene strap, (4) Insert tip of strap into strap way, (5) Adjust tension, pulling automatically into heat seal, (6) Strip is then cut off to feed the strap out, (7) One-cycle automatically complete, (8) Remove machine and insert into next pallet. Strapping is not included.


Semi-Automatic Pallet Probe Strapping Machine
Model PDFs Overall Size
Feed Strap
DBA-130 Warranty PDFPhoto Gallery 31-1/2"x23"x55" 53-1/2" 175 393

model ASM-3123

  • Dispenses 3/8" or 1/2" polypropylene strapping

  • Automatic strapping operation

  • Heat welded polypropylene strapping

  • Up to 30 cycles per minute

  • Strap tension is adjustable 15 lbs. to 150 lbs.

  • User friendly controls

  • Strapping core size is 6" to 8"

  • Easy access for reloading strapping

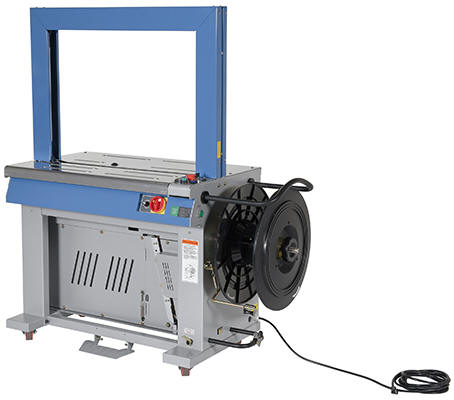

The High Speed Strapping Machine is a productive solution to most polypropylene strapping tasks.  This automatic Arch Strapping Machine features the "Auto-Feeding" function that automatically feeds polypropylene strapping to arch and is ready for each application. The "Auto-Positioning" system automatically positions and secures the polypropylene strapping efficiently for each cycle. The "Jam-Free" feature ejects missed strap cycles, and resets the unit.  User friendly controls allow operator to choose between panel mounted controls, foot pedal, or table top ball switch.  Actual production will vary depending on package size, chute size and operator dexterity. The unit has heat welded polypropylene strapping, easy access for reloading strapping and portability for convenience. 115V, 1phase power standard.  Polypropylene strapping is sold separately.

High Speed Strapping Machine
Model PDFs Max.
Size (WxH)
Table Top
ASM-3123 Warranty PDFPhoto Gallery 29-1/4"x22-1/2" 31-1/2" 48-3/8"x23-1/8"x58" 531

Freight Quote

Other Packaging Equipment >>
