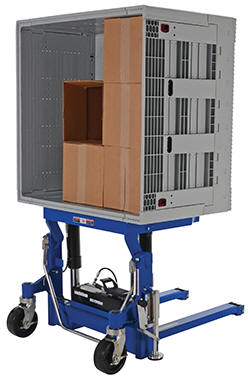

Tilt Master - TM Series
model TM-20-DC shown





Tilt Master Straddle - TMS Series
model TMS-40-DC shown


model TMS-40-DC

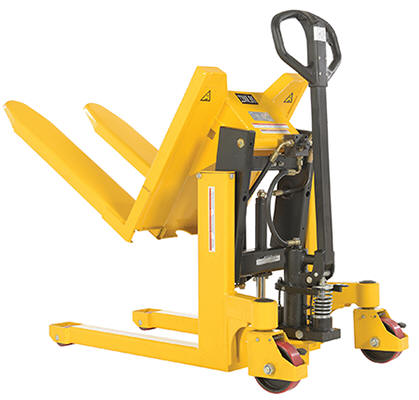

Lift and position filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty Tilt Master. These 90 tilters will function as a transporter by moving completed products from work station to work station without waiting for a fork truck.

An ergonomic handle comes standard for quick and easy maneuverability. Unit has a thin
profile to allow the user to get as close to the load as possible. Units roll easily on 8" x 3" phenolic steering wheels. Floor lock standard on non PTDS units. Series TM is designed to be used with open bottom pallets or skids only. The Tilt Master Straddle units, series TMS, can be used with virtually any kind of container or pallet. Units come standard with a hand pendant control on an 8 foot coil cord.

Three power options to choose from.
Suffix -AC is 115V, 1 phase power with a push-button hand control.
Suffix -DC and DC-PTDS includes one (1) 12V battery
DC series, (2) 12V batteries) DC-PTDS series, push-button hand control, on-board charger and battery charge indicator gauge. Suffix -DC-FC includes one (1) 12V battery, foot control, on-board charger and battery charge indicator gauge.
Suffix -AIR features reciprocating air/oil power with a heel/toe foot treadle control.              (Filter -Regulator-Lubricator Required)


model TM-20-AC

TM-20-AC




model TM-40-AC


model TM-40-DC


model TM-40-AIR


model TM-60-AC


model TM-60-AIR



model TMS-20-AC


model TMS-20-DC



model TMS-20-AIR


model TMS-40-AC

Applications

  • Tilts products from ground level to a comfortable operator working height
  • Doubles as a pallet truck and a portable tilt table
  • DC powered lifting mechanism for efficiency
Model # Tilt Time
TM-20-DC 12 seconds
TM-20-AC 30 seconds
TM-40-DC 20 seconds
TM-40-AC 47 seconds
TMS-20-DC 12 seconds
TMS-20-AC 30 seconds
TMS-40-DC 20 seconds
TMS-40-AC 47 seconds

Optional Power Traction Drive System:



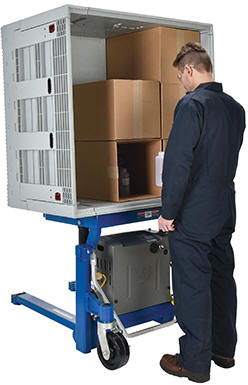

Shown w/ Power Traction Drive System
model TMS-40-DC-PTDS



Tilt Master
Model PDF's Capacity
(lbs)
Fork Adjustment Operator
Reach
Fork
Width
Power Control Wt (lbs)
 Tilt Master
TM-20-AC Compliance Certificate 2,000 Fixed at 26" (OD) 7-1/4" 6" 115V / 1 PH Hand 646
TM-20-DC Compliance Certificate 2,000 Fixed at 26" (OD) 7-1/4" 6" 12V DC Hand 767
TM-20-DC-FC Compliance Certificate 2,000 Fixed at 26" (OD 7-1/4" 6" 12V DC Foot 772
TM-20-DC-PTDS Compliance Certificate 2,000 Fixed at 26" (OD 7-1/4" 6" 12V DC Hand ** 950
TM-20-AIR Compliance Certificate 2,000 Fixed at 26" (OD) 7-1/4" 6" AIR/OIL Foot 621
TM-40-AC Compliance Certificate 4,000 Fixed at 26" (OD) 7-1/4" 6" 115V / 1 PH Hand 707
TM-40-DC Compliance Certificate 4,000 Fixed at 26" (OD) 7-1/4" 6" 12V DC Hand 781
TM-40-DC-FC 4,000 Fixed at 26" (OD 7-1/4" 6" 12V DC Foot 786
TM-40-DC-PTDS Compliance Certificate 4,000 Fixed at 26" (OD 7-1/4" 6" 12V DC Hand ** 964
TM-40-AIR Compliance Certificate 4,000 Fixed at 26" (OD) 7-1/4" 6" AIR/OIL Foot 631
TM-60-AC Compliance Certificate 6,000 Fixed at 27" (OD) 7-1/4" 6-1/2" with stiffener 115V / 1 PH Hand 739
TM-60-DC Compliance Certificate 6,000 Fixed at 27" (OD) 7-1/4" 6-1/2" with stiffener 12V DC Hand 777
TM-60-DC-PTDS Compliance Certificate 6,000 Fixed at 27" (OD) 7-1/4" 6-1/2"  with stiffener 12V DC Hand ** 960
TM-60-AIR Compliance Certificate 6,000 Fixed at 27" (OD) 7-1/4" 6-1/2"  with stiffener AIR/OIL Foot 851
 Tilt Master Straddle
TMS-20-AC Compliance Certificate 2,000 1/2" to 28-1/2" (ID) 13-1/2" 4" 115V / 1 PH Hand 989
TMS-20-DC Compliance Certificate 2,000 1/2" to 28-1/2" (ID) 13-1/2" 4" 12V DC Hand 1017
TMS-20-DC-PTDS Compliance Certificate 2,000 1/2" to 28-1/2" (ID) 13-1/2" 4" 12V DC Hand ** 1200
TMS-20-AIR Compliance Certificate 2,000 1/2" to 28-1/2" (ID) 13-1/2" 4" AIR/OIL Foot 886
TMS-40-AC Compliance Certificate 4,000 1/2" to 28-1/2" (ID) 13-1/2" 4" 115V / 1 PH Hand 953
TMS-40-DC Compliance Certificate 4,000 1/2" to 28-1/2" (ID) 13-1/2" 4" 12V DC Hand 1046
TMS-40-DC-PTDS Compliance Certificate 4,000 1/2" to 28-1/2" (ID) 13-1/2" 4" 12V DC Hand ** 1229
TMS-40-AIR Compliance Certificate 4,000 1/2" to 28-1/2" (ID) 13-1/2" 4" AIR/OIL Foot 893
TMS-60-AC Compliance Certificate 6,000 1/2" to 28-1/2" (ID) 13-1/2" 4" 115V/1 PH Hand 978
TMS-60-DC Compliance Certificate 6,000 1/2" to 28-1/2" (ID) 13-1/2" 4" 12V DC Hand 1067
TMS-60-DC-PTDS Compliance Certificate 6,000 1/2" to 28-1/2" (ID) 13-1/2" 4" 12V DC Hand ** 1250
TMS-60-AIR Compliance Certificate 6,000 1/2" to 28-1/2" (ID) 13-1/2" 4" AIR/OIL Foot 967
Skids Only - Tilt Master (TM)
Pallets or Skids - Tilt Master Straddle (TMS)
**Power Traction Drive (Power Drive /Power Tilt)
 Tilt Master Options
Model Description   Wt. (lbs)
TM-CHUTE Retrofit chute for TM-series only   18
  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

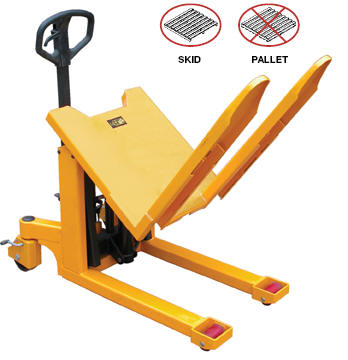

Lift, tilt and transport crates, boxes and pallets with an open bottom. Designed to give the user an ergonomically correct position to reach loads easily without the need for bending down or excessively reaching over.  Forks can be tilted to 90.  Rolls smoothly on 6" x 2" polyurethane swivel casters with brake and foot protectors. Width between forks is 91⁄2".  The overall fork width is 22".  The individual fork width is 6-1⁄4".

 Manual Tilt Master
Model PDF's Capacity
(lbs)
Vertical
Lift
Height
Lowered
Fork
Height
Fork
Length
Overall
Width
Wt.
(lbs)
TM-22-M Compliance Certificate 2,200 11-1/4" 3-1/2" 31-1/2" 25-1/4" 425
