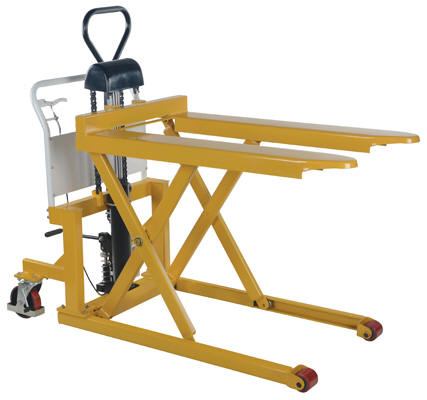

Foot Pump
model TAL-260-HD


Designed to lift open bottom skids, boxes and baskets. The manually operated lift is easy to operate.  The foot pump operated lift travels approximately 1/2" per stroke. To lower unit depress on the bicycle style grip located on the white push bar. The battery operated lift is ideal for positioning products at workstation height for increased productivity. DC powered units include one (1) 12V battery, an on-board charger and battery charge indicator gauge. The up/down lever control is located on power unit.  Polyurethane swivel casters with brake are standard on all units.

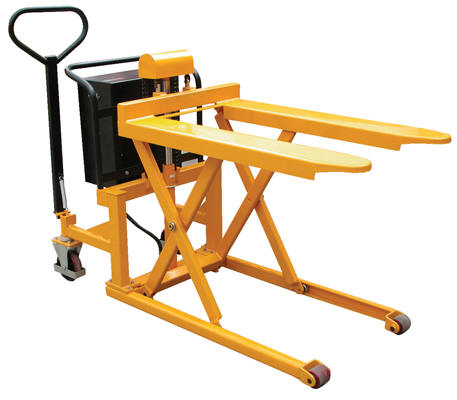

12V DC Powered
model TAL-260-DC


model TAL-220-HD

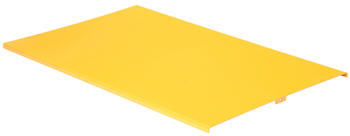

Optional Solid Platform To Fit Over Forks
model TAL-PLATE


Tote-A-Load
Model PDF's Description Fork Size
(WxL)
Capacity
(lbs)
Service
Range
Wt.
(lbs)
TAL-220-HD Warranty PDFCompliance Certificate Foot Pump 21"x43" 2,200 3-1/2" to 33" 315
TAL-260-HD Warranty PDFCompliance Certificate Foot Pump 27"x43" 2,200 3-1/2" to 33" 342
TAL-220-DC Warranty PDFCompliance Certificate 12V DC Powered 21"x43" 2,200 3-1/2" to 33" 410
TAL-260-DC Warranty PDFCompliance Certificate 12V DC POWERED 27"x43" 2,200 3-1/2" to 33" 410
Tote-A-Load Options
Model Description Wt.
(lbs)
TAL-PLATE-21 Solid Platform To Fit Over Forks for use on the TAL-220 units with an overall fork width of 21" 34
TAL-PLATE-27 Solid Platform To Fit Over Forks for use on the TAL-260 units with an overall fork width of 27" 34

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
