model FTTM-2

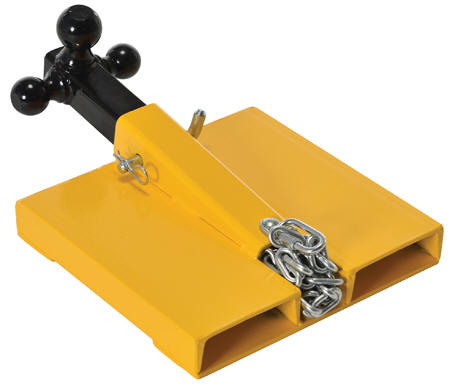

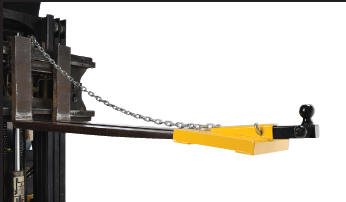

The Fork Lift Hitch is a superb addition to most manufacturing and maintenance facilities.  Strong steel construction allows for long term use, even in the harshest of conditions.  The hitch includes a yellow finish for clear visibility.  To use slide the fork lift forks in to the unit and secure safety chain to fork lift.  Once in place, the unit is ready to be hitched to the desired equipment.  Includes 56" long chain to secure to fork lift.

Standard Features:

  • Strong steel construction

  • Yellow finish for clear visibility

  • Maximum tongue load: 1,500 lbs.

  • Maximum push capacity for 1-7/8" ball: 2,000 lbs.

  • Maximum push capacity for 2" ball: 3,500 lbs.

  • Maximum push capacity for 2-5/16" ball: 7,500 lbs.

  • 3-ball hitch attachment can be removed & rotated to desired ball.

  • Includes a 56" long chain to secure to forklift.

  • Unit not intended for pulling.

Unit Not Intended For Pulling!


Fork Lift Hitch
Model PDF's Overall Size
Fork Pocket
Size (WxH)
FTTM-2 Compliance Certificate 14-1/2"x20-9/16"x8-1/16" 4-5/16"x1-11/16" 1,500 44

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
