model EPFC-25

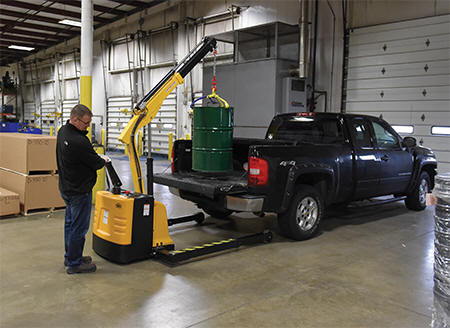

Fully powered shop cranes (power hoist & power in/out boom) for moving loads quickly, easily, and safely. 24V DC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered shop crane has two 12V, 80 - 95/Ah lead acid deep cycle batteries, integral battery charger, and battery level gauge. Poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Includes rigid hook with safety latch.

*Model EPFC-25 features adjustable length legs.

*Model EPFC-25-AA features adjustable length legs and adjustable width legs.

*Model EPFC-CB-15 features fixed legs and counter balance design.

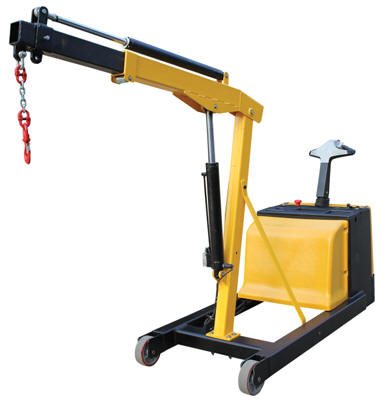

model EPFC-25-AA
Features Adjustable Width Legs

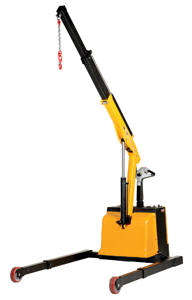

Features Fixed Legs & Counter Balanced Design
model EPFC-CB-15

Electric Powered Floor Crane
Model PDF's Capacity
Lift Range Retracted/
Max Height Crane Extended Max Length Legs Extended Retracted
EPFC-25 Warranty PDFCompliance Certificate 2,500 600 44-1/4"-94" 110 103-1/8" 30"x80"x63" 925
EPFC-25-AA Warranty PDFCompliance Certificate 2,500 600 44-1/4"-97" 110 103-1/8" 43-3/4"x79-1/8"x67" 1,158
EPFC-CB-15 Warranty PDFCompliance Certificate 1,500 400 44-1/4"-97" 105 -- 33-7/8" x 107-1/2" x 66-3/8" 1,700
EPFC-HC   Optional Floor Crane Hand Control

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
