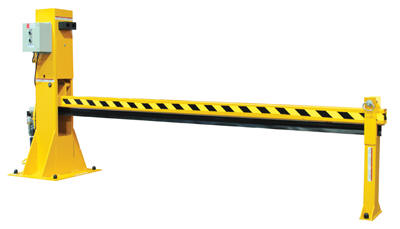

model DJG-100

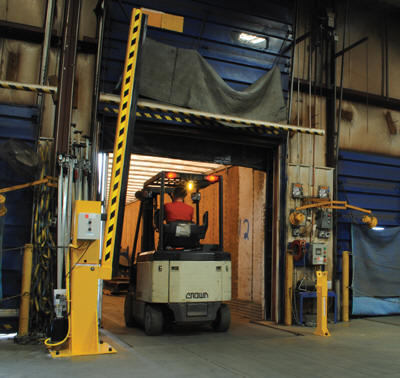

Designed to Prevent Loading Dock "Run Off's"

The Dock Barricade represents the next generation of innovative loading dock safety systems. The electric/hydraulic power unit provides quick and effortless operation. It can stop a four thousand (4,000) pound loaded truck at four (4) miles per hour. It is electronically operated and consists of an electrical bumper-style safety stop circuit to sense obstructions when lowering. Installation is simple, anchor the unit to the floor, and plug in. Mechanical unit, model DJG-100-MW, features a manual hand crank winch to raise/lower barricade arm. All units include a lock bar on the arm post to restrict rotation of the barricade arm, padlock is NOT included.



model DJG-100-10



model DJG-100MW

Dock Barricade
Model PDF's Operation Door Size
(W x H)
Arm Height Raised Arm Height Lowered Overall
(W
xL)
Wt.
(lbs)
DJG-100 Warranty PDFPhoto GalleryCompliance Certificate Electric 8' x 8' 148-5/8" 28-1/2" 24"x130-3/4" 780
DJG-100-10 Warranty PDFPhoto GalleryCompliance Certificate Electric 10' x 10' 172-5/8" 28-1/2" 24"x154-3/4" 800
DJG-100MW Warranty PDFPhoto GalleryCompliance Certificate Mechanical Winch 8' x 8' 149" 32" 24"x133-1/4" 539
= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

Freight Quote



Copyright 2018
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale



Download The Dock Barricade Owners Manual in PDF format.
