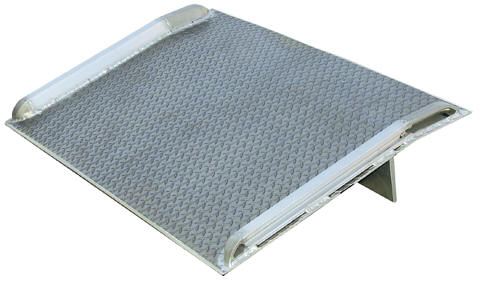

Aluminum Dockboards
(with
Welded Aluminum Curbs)

series BTA
The Aluminum Truck Dockboard is engineered and built to
maximize safety while handling heavy fork trucks and loads. The beveled
edge is designed for smooth entry and exit. Locking legs prevent
movement during loading and unloading operations. Locking legs are
uneven to allow the dockboard to sit canted, while not in use, for
easier pickup by fork trucks. Welded aluminum safety curbs prevent
accidental runoffs and provide visible driving lane. When using
three-wheeled fork trucks order dockboard with capacity at least four
times the lifting capacity of fork truck. The width of the dockboard
should be at least 15 (in.) wider than the load or equipment passing
between the curbs. Bend is 11° and 9" from the edge and the legs are 12"
from the edge. Manufactured in compliance with OSHA.
MODEL = BTA - (capacity)(width)(length)
Click Here for BTA Model
Chart

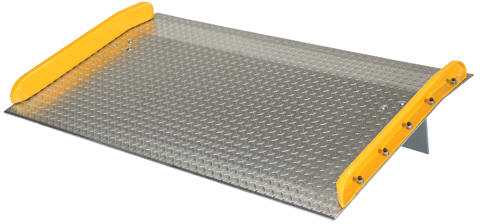

Aluminum
Dockboard with Steel Curbs

series TAS
• Beveled Edges for Smooth Entry & Exit
• Treadplate Design Ensures Positive Traction
• Bend is 11° and 9" from Beveled Edge
• Legs are 11" from Beveled Edge
This dockboard is designed for portability and safety. Deck is made
of tough high strength aluminum treadplate. Safety curbs have a
baked in
yellow powder coated finish for added toughness and are constructed of structural steel with cast tapered ends.
Steel legs are bolted on for increased durability. Canted locking legs for
easier fork truck portability. Manufactured in compliance of OSHA.
When using
three-wheeled fork trucks order dockboard with capacity at least
four-times the lifting capacity of fork truck.

model TAS-10-5448 |
model TAS-15-6072 |
model TAS-20-7248 |
|
Aluminum Truck Dockboards with Steel
Safety Curbs |
| Model |
PDF |
Width |
Length |
Height
Diff. |
Wt.
(lbs) |
|
10,000 lbs. Capacity |
|
TAS-10-5436 |
  |
54" |
36" |
5" |
96 |
|
TAS-10-5448 |
|
54" |
48" |
7" |
138 |
|
TAS-10-5460 |
|
54" |
60" |
10" |
157 |
|
TAS-10-5472 |
|
54" |
72" |
12" |
171 |
| TAS-10-6036 |
|
60" |
36" |
5" |
100 |
| TAS-10-6048 |
|
60" |
48" |
7" |
129 |
| TAS-10-6060 |
|
60" |
60" |
10" |
160 |
| TAS-10-6072 |
|
60" |
72" |
12" |
220 |
| TAS-10-7236 |
|
72" |
36" |
5" |
110 |
| TAS-10-7242 |
|
72" |
42" |
6" |
132 |
| TAS-10-7248 |
|
72" |
48" |
7" |
157 |
| TAS-10-7260 |
|
72" |
60" |
10" |
223 |
| TAS-10-7272 |
|
72" |
72" |
12" |
231 |
|
15,000 lbs. Capacity |
|
TAS-15-4836 |
|
48" |
36" |
5" |
101 |
|
TAS-15-4842 |
|
48" |
42" |
6" |
105 |
|
TAS-15-5436 |
|
54" |
36" |
5" |
102 |
|
TAS-15-5448 |
|
54" |
48" |
7" |
125 |
|
TAS-15-5460 |
|
54" |
60" |
10" |
155 |
|
TAS-15-5472 |
|
54" |
72" |
12" |
204 |
| TAS-15-6030 |
|
60" |
30" |
4" |
105 |
| TAS-15-6036 |
|
60" |
36" |
5" |
107 |
| TAS-15-6048 |
|
60" |
48" |
7" |
146 |
| TAS-15-6060 |
|
60" |
60" |
10" |
204 |
| TAS-15-6072 |
|
60" |
72" |
12" |
251 |
| TAS-15-7230 |
|
72" |
30" |
4" |
118 |
| TAS-15-7236 |
|
72" |
36" |
5" |
123 |
| TAS-15-7248 |
|
72" |
48" |
7" |
191 |
| TAS-15-7260 |
|
72" |
60" |
10" |
238 |
| TAS-15-7272 |
|
72" |
72" |
12" |
305 |
|
20,000 lbs. Capacity |
| TAS-20-6036 |
|
60" |
36" |
5" |
110 |
| TAS-20-6048 |
|
60" |
48" |
7" |
165 |
| TAS-20-6060 |
|
60" |
60" |
10" |
218 |
| TAS-20-6072 |
|
60" |
72" |
12" |
263 |
| TAS-20-7236 |
|
72" |
36" |
5" |
123 |
| TAS-20-7248 |
|
72" |
48" |
7" |
191 |
| TAS-20-7260 |
|
72" |
60" |
10" |
253 |
| TAS-20-7272 |
|
72" |
72" |
12" |
295 |
|
Aluminum Dockboard Accessories |
| Model |
Description |
| LC48-66 |
Lifting Chains 48"W x 66"W |
| LC72-84 |
Lifting Chains 72"W x 84"W |
| SSL |
Sliding Span Locks (BTA Only) |
| HDL |
Dockboard Handle Kit |
| SP |
Span Pins & Holes (4 Holes per side) |
| RPL-ALUM |
Removable Pickup Loops |
| HOLE |
Extra Span Holes |
| PIN |
Extra Span Pins |
| ALL |
Leverlift |
| SBL |
Special Bend
Location |
| ATC-12 |
Anti-Theft Chain (144”) |
= Approval Drawing
= Warranty
= Photo Gallery
= Testing Certificate
Aluminum
Hand Truck Dockboard


series AHTD
These dockboards are lightweight and can be carried and positioned by one
person. Provides a safe and convenient bridge between dock and truck. Welded
aluminum diamond tread surface and beveled edges provide safe and smooth
entry and exit. The bend is designed to
keep ramp edges flush with dock surface and truck floor. Equipped with
bolted locking legs. Full length aluminum curbs provide hand holds and
reduce chance of roll off. 800 pound capacity. Designed for use with two
wheel hand trucks. 3/16" plate thickness. Manufactured in compliance with
OSHA. The bend or crown is 12° and
located 6" from edge of dockplate.
|
Aluminum Hand Truck Dockboards |
| Model |
PDFs |
Overall
Width |
Usable
Width |
Overall Length |
Height
Diff. |
Wt.
(lbs) |
| AHTD-3036 |
|
31-1/4" |
28" |
35-7/8" |
5" |
35 |
| AHTD-3048 |
|
31-1/4" |
28" |
47-7/8" |
7" |
46 |
| AHTD-3648 |
|
37-1/3" |
34" |
47-7/8" |
7" |
51 |
| AHTD-3660 |
|
37-1/4" |
34" |
59-7/8" |
10" |
65 |
| AHTD-3672 |
|
37-1/4" |
34" |
71-7/8" |
13" |
75 |
| AHTD-3696 |
|
37-1/4" |
34" |
95-7/8" |
19" |
107 |
|
Aluminum Hand Truck Dockboard-Options |
| Model |
Description |
| OHDL |
No Handles |
| 1HDL |
One Handle |
| SDP |
Smooth Deck Plate
(Diamond side down with grip tape) |
| SBL |
Special Bend Location |
| SLL |
Special Location
of Legs |
| ATC-12 |
Anti-Theft
Chain (144") |
| LHDL |
Extra Pair of Legs
with Handles & Hardware |
| TRADE |
Trade in Allowance
(F.O.B. IN) |
= Approval Drawing
= Warranty
= Photo Gallery
= Testing Certificate

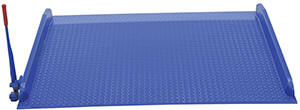

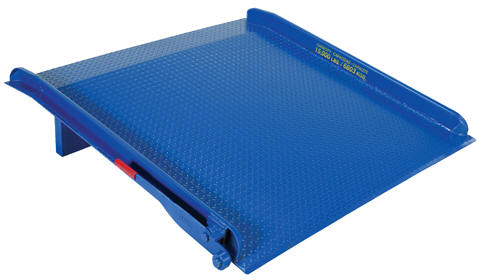

Steel
Dockboard


series TS
Constructed of high strength (55,000 PSI) Steel for long life. Beveled edges on
both ends permit smooth entry and exit. Deck is checkered for safe efficient
use. Locking legs minimize ramp movement. Available in widths of 60",
66",
72" & 84". Capacities range from 10,000 to 30,000. Standard
with lever lift for help with portability; optional pickup chains. Locking legs are
uneven to allow the dockboard to sit canted for easier pickup by forklifts, when picking
off the floor.
Model = TS-(capacity)-(width)(length)
Click Here for TS Model
Chart
