model TS-EVAP-36HD

These Portable Evaporative Coolers have large internal water reservoirs that allow units to operate approximately 8 hours without being connected to an external water source. Water is supplied to the internal tank from a standard 3/4" water hose or from optional water tank. Water level in internal tank controlled by the unit's float valve.  Maintenance free submersible water pump. 8" thick evaporative media pads are easily accessible for routine maintenance. Roto-molded corrosion free polyethylene housing. 20 foot long, 16 ga. 3 conductor cord with GFCI plug. Thermally protected, permanently lubricated fan motor. Variable 3 speed. Weather tight fan and pump control switches.  4" heavy duty casters; 2 locking, 2 non-locking. ETL listed.

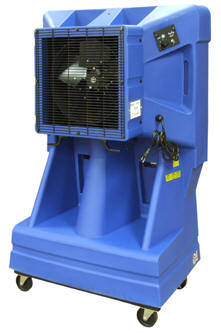

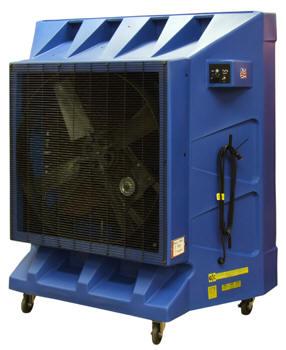

Heavy Duty Portable Evaporator Cooler

Model PDFs Blade Size Motor HP Unit Amps CFM Effective
Sq. Ft.
Internal H20 Tank Overall Size (WxLxH) Wt. (lbs)
TS-EVAP-36HD Warranty PDF 36" 0.7 15.0 12500 3125 60 gal 67"x34.5"x77" 307
