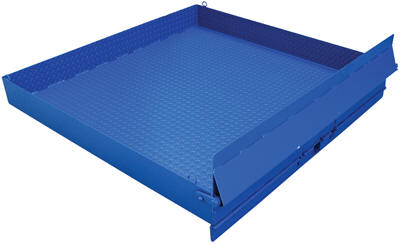

model FTLP-5454

Allows fork trucks to load/unload items into trucks and trailers.  Maximum uniform weight capacity is 2,000 pounds. (dependent on fork truck capacity).  Includes 12" fold-down lip to help with transition.  Side guard toeboards are 6" high.  Four tie-down rings are included for securing equipment (tie downs not included).  Diamond plate floor for extra traction.  Safety restraint is included to secure platform to fork truck.  Steel construction with baked-in powder coat finish for added toughness.


How To Use

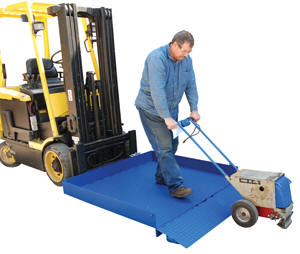

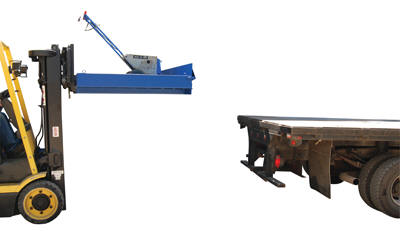

Insert forks into pockets and chain platform to fork truck.  Load items onto platform.  Rotate and lock lip in vertical position.  Transport item to be loaded to truck.  Unlock and lower ramp.  Lock can be operated from either side.

model FTLP-5454-HR

Economical Portable Loading Platform


PDF Platform


FTLP-5454 Warranty PDFCompliance Certificate 54" x 54" 2,000 7-1/2" x 2-1/2" 337
FTLP-5454-HR* Warranty PDFCompliance Certificate 51" x 48-1/2" 2,000 7-1/2" x 2-1/2" 407
 * Features handrail on two sides, back mesh screen and chains
= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
Freight Quote

Copyright 2019
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale

FTLP Series Owners Manual

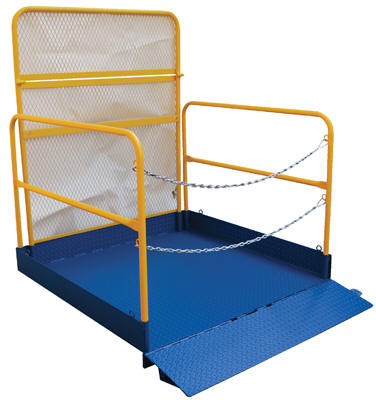

shown with side railing - model FTLP-5454-HR
