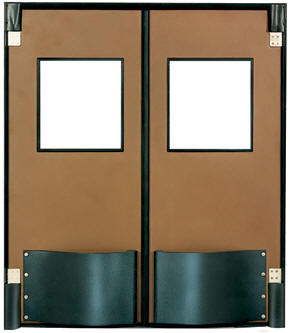

  Heavy Duty Swinging Traffic Door



This multi-purpose lightweight door is tough enough to take the abuse of personnel, stock carts and motorized pallet jacks.  The door panels are constructed with 1/8” thick rotationally molded cross-linked polyethylene outer shell and foamed-in-place Non-CFC urethane foam core.  The panels are corrosion resistant, making it ideal for wash down applications as it has no gaps or joint seams.   The door comes standard with 24” black bumpers on both sides of the door.  Double acting V-cam hinging system operates smoothly and is virtually maintenance free with its permanently lubricated needle bearing roller assembly.  There is a 1/8” thick polycarbonate window with black aluminum frame is recessed a minimum of 1/8” from the face of the panel to protect the window’s surface from abrasion caused by passing loads, making the panels 1 7/8" thick..

Please specify color when ordering (see below)

SPECIFY COLOR WHEN ORDERING - series HDSW
Forest Green Medium Brown
Jade Royal Blue
Cadet Blue Navy
White Black
Metallic Gray Beige
Cloud Gray Burgundy
Red Chocolate Brown
* Color shown may differ slightly from actual color.  Contact factory for exact color match.
Heavy Duty Swinging Traffic Door

Model Number

PDFs Description

Size

Wt.
 lbs.
HDSW-37 Photo Gallery Single Door Panel 3'x7' 240
HDSW-57 Photo Gallery Double Door Panel 5'x7' 360
HDSW-58 Photo Gallery Double Door Panel 5'x8' 380
HDSW-67 Photo Gallery Double Door Panel 6'x7' 440
HDSW-68 Photo Gallery Double Door Panel 6'x8' 440
HDSW-88 Photo Gallery Double Door Panel 8'x8' 460

  Light Duty Swinging Traffic Door



These Light Duty Traffic Doors are constructed with rotationally molded cross-linked polyethylene, making them extremely durable and capable of withstanding the wear and tear associated with sales-to-back room and walk-in cooler openings in high volume retail establishments. Known for their long-term value, they are ideal for use in supermarkets, retail establishments, institutions, restaurants and food service operations as they provide a visual separation, sound barrier and thermal separation. The door is designed to comply with all USDA sanitation requirements and is NSF approved. The corrosion resistant panel is ideal for wash down applications as it has no gaps or joint seams.  The total width of the light duty traffic doors are 1 1/2" thick.

Light Duty Traffic Doors
Model Description Size
(WxH)
Wt.
(lbs)
LDSW-37 Single Door Panel 3'x7' 146
LDSW-57 Double Door Panel 5'x7' 256
LDSW-58 Double Door Panel 5'x8' 280
LDSW-67 Double Door Panel 6'x7' 290
LDSW-68 Double Door Panel 6'x8' 320
LDSW-88 Double Door Panel 8'x8' 400
