model DTS-5-LED

model DTS-10

Our Dock Traffic Systems feature flashing red and green lights.  Prevent accidents and injuries by providing clear communication between dock personnel and truck drivers.  Built-in eyebrow type sun visors increase light visibility.

Deluxe, model DTS-10, consists of one (1) yellow aluminum traffic light with both a green and
red lens (for outside), and an illuminated push-button control (for inside).  Light measures 14"W
x 21"H and features an 8" hood over each lens (recommended for west and south exposure).  60 Watt.  115V AC.  Four (4) procedure signs are included.  Features incandescent lights.

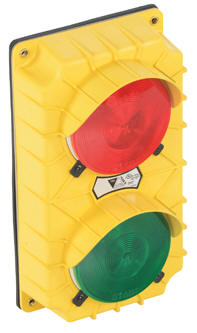

Economy, model DTS-5, comes with two (2) yellow polypropylene traffic lights, 6"W x 11"H, each having a green and a red lens.  The light containing a toggle switch is placed inside the dock area for the dock attendant, and the other is placed outside for the truck driver.  Four (4) signs are included.  LED model never needs bulb replacements.

model DTS-5

Dock Traffic Systems
Model PDFs Description Power Wt. (lbs)
DTS-10 Warranty PDFPhoto GalleryCompliance Certificate Aluminum Housing Incandescent Ligths 115V, 1PH 30
DTS-5 Warranty PDFPhoto GalleryCompliance Certificate Polypropylene Housing, Incandescent Ligths 115V. 1 PH 8
DTS-5-LED Warranty PDFPhoto GalleryCompliance Certificate Polypropylene Housing, LED Lights 115V, 1 PH 8
DTS-5-LED-12DC Warranty PDF Polypropylene Housing, LED Lights 12V DC 8
DTS-5-LED-24DC Warranty PDF Polypropylene Housing, LED Lights 24V DC 8
DTS-5-LED-220V Warranty PDF Polypropylene Housing, LED Lights 220V, 1 Phase 8

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
