[Aluminum Walk Ramps] ~ [Fiberglass Walk Ramps]
[Fiberglass Autoloader]

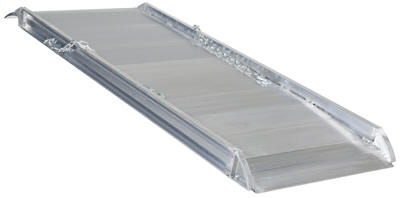

TYPE A
Overlapping Style

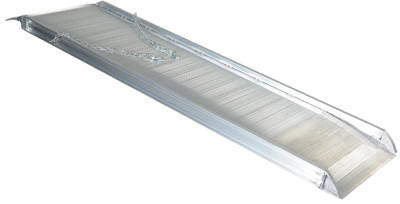

TYPE B
Hook Style

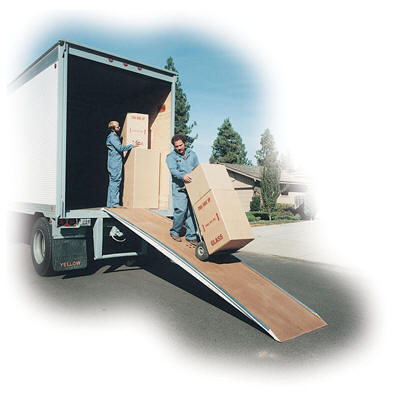

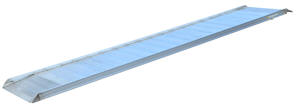

The Aluminum Walk Ramp enables delivery men, shippers, and receivers to load and unload trucks when docks are unavailable. Ramps feature a 1-1⁄2" high safety curb on each side. Heavy duty steel chains with steel grab hooks are attached to each side of ramp for safely securing ramp to truck. Constructed of strong aluminum alloy with non-skid tread surface. The ramp is lightweight and easy to handle. Available in either an overlapping style that rests on the truck bed, suffix "A", or steel hook style that mounts onto the truck extensions, suffix "B".

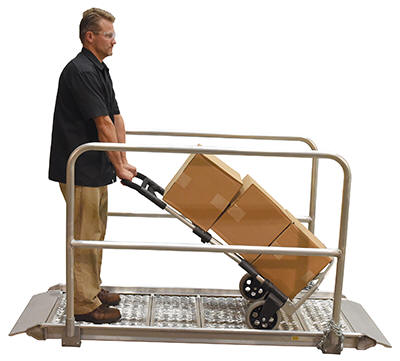

Aluminum Walk Ramps with Handrails offer the same durable ramp as above with more stability and security. Railing sections are 40-1/4" high with a 18-7/16" mid-rail. Handrail can be bolted onto both A-style and B-style aluminum walk ramps. Handrail may be attached to one side or both sides of ramp. Aluminum construction with unpainted finish. Installation brackets and hardware included. Handrails are included for both sides of the ramp.

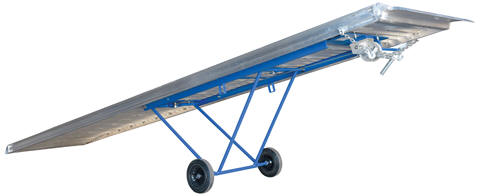

Aluminum Walk Ramps with Transport Wheels are ideal for use with aluminum ramps 10 feet or longer. Once unit is in place, the crank wheel can be utilized to retract the wheels off the ground creating a solid transition between surfaces and ramp. The cart can be completely cranked into a flat position for simple storage when not in use. Wheels are 10" x 2-9/16" pneumatic and are located at balance points on the ramp.



model AWR-28-6A


model AWR-28-8A


model AWR-28-10A


model AWR-28-12A


model AWR-28-14A


model AWR-28-16A


model AWR-38-6A


model AWR-38-8A


model AWR-38-8B


model AWR-38-10A


model AWR-38-16A

Aluminum Walk Ramps
Model PDF's Type Height-Range Length Capacity (lbs) 4-Wheel Cart Capacity (lbs) 2-Wheel Cart Wt.
(lbs)

 28" Wide / 26" Usable

AWR-28-4A Warranty PDF A 6"-13" 48" 3,000 2,200 50
AWR-28-6A Warranty PDFCompliance Certificate A 6"-21" 72" 2,800 2,000 68
AWR-28-7A Warranty PDFCompliance Certificate A 6"-25" 84" 2,800 1,800 78
AWR-28-8A Warranty PDFCompliance Certificate A 6"-29" 96" 2,500 1,650 84
AWR-28-9A Warranty PDFCompliance Certificate A 6"-33" 108" 2,500 1,600 95
AWR-28-10A Warranty PDFCompliance Certificate A 6"-38" 120" 2,200 1,500 101
AWR-28-12A Warranty PDFCompliance Certificate A 6"-46" 144" 1,900 1,400 128
AWR-28-14A Warranty PDFCompliance Certificate A 6"-54" 168" 1,600 1,200 136
AWR-28-16A Warranty PDFCompliance Certificate A 6"-62" 192" 1,000 1,000 153
AWR-28-4B Warranty PDF B 6"-15" 49-15/16" 3,000 2,200 45
AWR-28-6B Warranty PDFCompliance Certificate B 6"-23" 73-7/8" 2,800 2,000 68
AWR-28-7B Warranty PDFCompliance Certificate B 6"-27" 85-13/16" 2,800 1,800 78
AWR-28-8B Warranty PDFCompliance Certificate B 6"-31" 97-11/16" 2,500 1,650 84
AWR-28-9B Warranty PDFCompliance Certificate B 6"-35" 109-5/8" 2,500 1,600 95
AWR-28-10B Warranty PDFCompliance Certificate B 6"-40" 121-9/16" 2,200 1,500 105
AWR-28-12B Warranty PDFCompliance Certificate B 6"-48" 145-7/16" 1,900 1,400 128
AWR-28-14B Warranty PDFCompliance Certificate B 6"-56" 169-1/4 1,600 1,200 136
AWR-28-16B Warranty PDFCompliance Certificate B 6"-64" 193-1/8" 1,000 1,000 154

 38" Wide / 36" Usable

AWR-38-4A Warranty PDF A 6"-13" 48" 3,000 2,200 63
AWR-38-6A Warranty PDFCompliance Certificate A 6"-21" 72" 2,800 2,000 86
AWR-38-7A Warranty PDFCompliance Certificate A 6"-25" 84" 2,800 1,800 88
AWR-38-8A Warranty PDFCompliance Certificate A 6"-29" 96" 2,500 1,650 105
AWR-38-9A Warranty PDFCompliance Certificate A 6"-33" 108" 2,500 1,600 113
AWR-38-10A Warranty PDFCompliance Certificate A 6"-38" 120" 2,200 1,500 125
AWR-38-12A Warranty PDFPhoto GalleryCompliance Certificate A 6"-46" 144" 1,900 1,400 150
AWR-38-14A Warranty PDFCompliance Certificate A 6"-54" 168" 1,600 1,200 168
AWR-38-16A Warranty PDFCompliance Certificate A 6"-62" 192" 1,000 1,000 198
AWR-38-4B Warranty PDFCompliance Certificate B 6"-15" 49-15/16" 3,000 2,200 55
AWR-38-6B Warranty PDFCompliance Certificate B 6"-23" 73-7/8" 2,800 2,000 88
AWR-38-7B Warranty PDFCompliance Certificate B 6"-27" 85-13/16" 2,800 1,800 88
AWR-38-8B Warranty PDFCompliance Certificate B 6"-31" 97-11/16" 2,500 1,650 105
AWR-38-9B Warranty PDFCompliance Certificate B 6"-35" 109-5/8" 2,500 1,600 113
AWR-38-10B Warranty PDFCompliance Certificate B 6"-40" 121-9/16" 2,200 1,500 125
AWR-38-12B Warranty PDFCompliance Certificate B 6"-48" 145-7/16" 1,900 1,400 150
AWR-38-14B Warranty PDFCompliance Certificate B 6"-56" 169-1/4 1,600 1,200 168
AWR-38-16B Warranty PDFCompliance Certificate B 6"-64" 193-1/8" 1,000 1,000 190

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

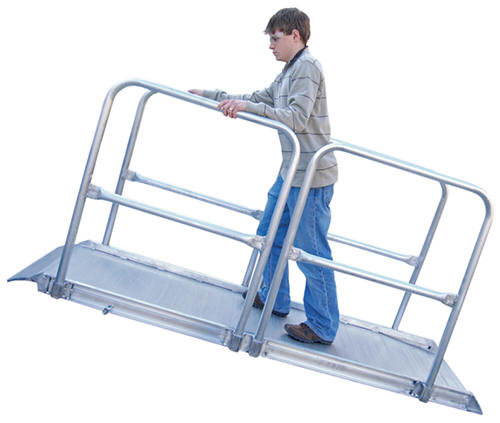

Aluminum Walk Ramps with Handrail offer the same durable ramp as above with more stability and security.  Railing sections are 40-1/4" high with a 18-7/16" mid-rail.  Handrail can be bolted onto both A-style and B-style aluminum walk ramps.  Handrail may be attached to one side or both sides of ramp.  Aluminum construction with unpainted finish.  Installation brackets and hardware included.  Retrofit railing available for existing aluminum walk ramps.



Aluminum Walk Ramps with Handrails
Model PDF's Type Height-Range Usable Length Capacity (lbs) 4-Wheel Cart Capacity (lbs) 2-Wheel Cart Wt.
(lbs)

 28" Wide / 26" Usable

AWR-28-6A-HR Warranty PDFCompliance Certificate A 6"-21" 72" 2,800 2,000 68
AWR-28-7A-HR Warranty PDFCompliance Certificate A 6"-25" 84" 2,800 1,800 78
AWR-28-8A-HR Warranty PDFCompliance Certificate A 6"-29" 96" 2,500 1,650 84
AWR-28-9A-HR Warranty PDFCompliance Certificate A 6"-33" 108" 2,500 1,600 95
AWR-28-10A-HR Warranty PDFCompliance Certificate A 6"-38" 120" 2,200 1,500 101
AWR-28-12A-HR Warranty PDFCompliance Certificate A 6"-46" 144" 1,900 1,400 128
AWR-28-14A-HR Warranty PDFCompliance Certificate A 6"-54" 168" 1,600 1,200 136
AWR-28-16A-HR Warranty PDFCompliance Certificate A 6"-62" 192" 1,000 1,000 153
AWR-28-6B-HR Warranty PDFCompliance Certificate B 6"-23" 73-7/8" 2,800 2,000 68
AWR-28-7B-HR Warranty PDFCompliance Certificate B 6"-27" 85-13/16" 2,800 1,800 78
AWR-28-8B-HR Warranty PDFCompliance Certificate B 6"-31" 97-11/16" 2,500 1,650 84
AWR-28-9B-HR  Warranty PDFCompliance Certificate B 6"-35" 109-5/8" 2,500 1,600 95
AWR-28-10B-HR Warranty PDFCompliance Certificate B 6"-40" 121-9/16 2,200 1,500 105
AWR-28-12B-HR Warranty PDFCompliance Certificate B 6"-48" 145-7/16 1,900 1,400 128
AWR-28-14B-HR Warranty PDFCompliance Certificate B 6"-56" 169-1/4" 1,600 1,200 136
AWR-28-16B-HR Warranty PDFCompliance Certificate B 6"-64" 193-1/8" 1,000 1,000 154

 38" Wide / 36" Usable

AWR-38-6A-HR Warranty PDFCompliance Certificate A 6"-21" 72" 2,800 2,000 86
AWR-38-7A-HR Warranty PDFCompliance Certificate A 6"-25" 84" 2,800 1,800 88
AWR-38-8A-HR Warranty PDFCompliance Certificate A 6"-29" 96" 2,500 1,650 105
AWR-38-9A-HR Warranty PDFCompliance Certificate A 6"-33" 108" 2,500 1,600 113
AWR-38-10A-HR Warranty PDFCompliance Certificate A 6"-38" 120" 2,200 1,500 125
AWR-38-12A-HR Warranty PDFCompliance Certificate A 6"-46" 144" 1,900 1,400 150
AWR-38-14A-HR Warranty PDFCompliance Certificate A 6"-54" 168" 1,600 1,200 168
AWR-38-16A-HR Warranty PDFCompliance Certificate A 6"-62" 192" 1,000 1,000 198
AWR-38-6B-HR Warranty PDFCompliance Certificate B 6"-23" 73-7/8" 2,800 2,000 88
AWR-38-7B-HR Warranty PDFCompliance Certificate B 6"-27" 85-13/16" 2,800 1,800 88
AWR-38-8B-HR Warranty PDFCompliance Certificate B 6"-31" 97-11/16" 2,500 1,650 105
AWR-38-9B-HR Warranty PDFCompliance Certificate B 6"-35" 109-5/8" 2,500 1,600 113
AWR-38-10B-HR Warranty PDFCompliance Certificate B 6"-40" 121-9/16 2,200 1,500 125
AWR-38-12B-HR Warranty PDFCompliance Certificate B 6"-48" 145-7/16 1,900 1,400 150
AWR-38-14B-HR Warranty PDFCompliance Certificate B 6"-56" 169-1/4" 1,600 1,200 168
AWR-38-16B-HR Warranty PDFCompliance Certificate B 6"-64" 193-1/8" 1,000 1,000 190

*    Aluminum Walk Ramps with Transport Wheels

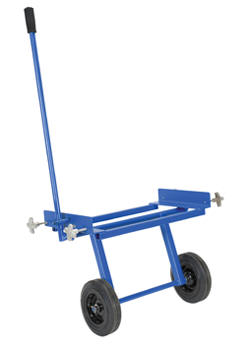

Aluminum Walk Ramps with Transport Wheels are ideal for use with aluminum ramps 10 feet or longer. Once unit is in place, the crank wheel can be utilized to retract the wheels off the ground creating a solid transition between surfaces and ramp. The cart can be completely cranked into a flat position for simple storage when not in use. Wheels are 10" x 2-9/16" pneumatic and are located at balance points on the ramp.

Aluminum Walk Ramps with Transport Wheels
Model PDF's Type Height Range Usable Length Capacity (lbs.) 4 wheel Cart Capacity (lbs.) 2-Wheel Cart Wt. (lbs.)
AWR-28-10A-WH Warranty PDFPhoto Gallery A 18-7/8"-38" 120-1/4" 2,200 1,500 68
AWR-28-12A-WH Warranty PDFPhoto Gallery A 17-1/4"-46" 143-1/4" 1,900 1,400 77
AWR-28-14A-WH Warranty PDF A 16-5/16"-56" 167-1/4" 1,600 1,200 89
AWR-28-16A-WH Warranty PDF A 15-11/16"-62" 190-3/4" 1,000 1,000 122
AWR-28-10B-WH Warranty PDF B 18-7/8"-38" 120-1/4" 2,200 1,500 68
AWR-28-12B-WH Warranty PDF B 17-1/4"-46" 143-1/4" 1,900 1,400 77
AWR-28-14B-WH Warranty PDF B 16-5/16"-56" 167-1/4" 1,600 1,200 89
AWR-28-16B-WH Warranty PDF B 15-11/16"-62" 190-3/4" 1,000 1,000 122
AWR-38-10A-WH Warranty PDF A 18-7/8"-38" 120-1/4" 2,200 1,500 80
AWR-38-12A-WH Warranty PDF A 17-1/4"-46" 143-1/4" 1,900 1,400 94
AWR-38-14A-WH Warranty PDFPhoto Gallery A 16-5/16"-54" 167-1/4" 1,600 1,200 123
AWR-38-16A-WH Warranty PDF A 15-11/16"-62" 190-3/4" 1,000 1,000 142
AWR-38-10B-WH Warranty PDF B 18-7/8"-38" 120-1/4" 2,200 1,500 80
AWR-38-12B-WH Warranty PDF B 17-1/4"-46" 143-1/4" 1,900 1,400 94
AWR-38-14B-WH Warranty PDF B 16-5/16"-54" 167-1/4" 1,600 1,200 123
AWR-38-16B-WH Warranty PDF B 15-11/16"-62" 190-3/4" 1,000 1,000 142

WB01372_.gif (406 bytes) Retrofit Handrail For Existing Aluminum Walk Ramps



model AWR-HR-7-RF


model AWR-HR-12-RF


model AWR-HR-14-RF


model AWR-HR-16-RF

Retrofit Handrail For Existing Aluminum Walk Ramps
Model PDF Usable Rail Length (in.) Hand-Rail Quantity Compatible With Ramp Models
AWR-HR-6-RF Warranty PDF 48 2 AWR-28-6A AWR-38-6A AWR-28-6B AWR-38-6B AWR-G-28-6A AWR-G-38-6A
AWR-HR-7-RF Warranty PDFPhoto Gallery 60 2 AWR-28-7A AWR-38-7A AWR-28-7B AWR-38-7B AWR-G-28-7A AWR-G-38-7A
AWR-HR-8-RF Warranty PDF 72 2 AWR-28-8A AWR-38-8A AWR-28-8B AWR-38-8B AWR-G-28-8A AWR-G-38-8A
AWR-HR-9-RF Warranty PDF 84 2 AWR-28-9A AWR-38-9A AWR-28-9B AWR-38-9B AWR-G-28-9A AWR-G-38-9A
AWR-HR-10-RF Warranty PDF 96 2 AWR-28-10A AWR-38-10A AWR-28-10B AWR-38-10B AWR-G-28-10A AWR-G-38-10A
AWR-28-10A-WH AWR-38-10A-WH AWR-28-10B-WH AWR-38-10B-WH AWR-G-28-10A-WH AWR-G-38-10A-WH
AWR-HR-12-RF Warranty PDFPhoto Gallery 122-5/16  4 AWR-28-12A AWR-38-12A AWR-28-12B AWR-38-12B AWR-G-28-12A AWR-G-38-12A
AWR-28-12A-WH AWR-38-12A-WH AWR-28-12B-WH AWR-38-12B-WH AWR-G-28-12A-WH AWR-G-38-12A-WH
AWR-HR-14-RF Warranty PDFPhoto Gallery 146-5/16 4 AWR-28-14A AWR-38-14A AWR-28-14B AWR-38-14B AWR-G-28-14A AWR-G-38-14A
AWR-28-14A-WH AWR-38-14A-WH AWR-28-14B-WH AWR-38-14B-WH AWR-G-28-14A-WH AWR-G-38-14A-WH
AWR-HR-16-RF Warranty PDFPhoto Gallery 170-5/16 4 AWR-28-16A AWR-38-16A AWR-28-16B AWR-38-16B AWR-G-28-16A AWR-G-38-16A
AWR-28-16A-WH AWR-38-16A-WH AWR-28-16B-WH AWR-38-16B-WH AWR-G-28-16A-WH AWR-G-38-16A-WH

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate




model AWR-G-28-10A

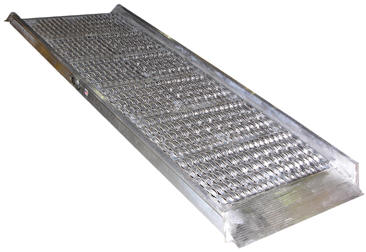

Load and unload trucks when docks are unavailable. The open deck design allows snow, ice and water to fall through ramp providing a positive grip for delivery men, shippers and receivers. 100% welded aluminum construction is light-weight and will not rust. Ramps feature a 2" high safety curb on each side. Overlap style end lip rests on trailer bed and provides smooth transition.  Each unit includes two safety chains to connect ramp to trailer for safety. Not for pallet trucks or three wheeled carts.

Aluminum Walk Ramps with Handrail offer the same durable ramp as above with more stability and security. Railing sections are 40-1/4" high with a 18-7/16" mid-rail. Handrails are bolted onto the aluminum walk ramps. Handrail may be attached to one side or both sides of ramp. Aluminum construction with unpainted finish. Installation brackets and hardware included. Handrails are included for both sides of the ramp.

Aluminum Walk Ramps with Transport Wheels are ideal for use with aluminum ramps 10 feet or longer. Once unit is in place, the crank wheel can be utilized to retract the wheels off the ground creating a solid transition between surfaces and ramp. The cart can be completely cranked into a flat position for simple storage when not in use. Wheels are 10" x 2-9/16" pneumatic and are located at balance points on the ramp.

Aluminum Grip-Strut Walk Ramps

Model PDF Usable Length 4-Wheel
Cart Capacity
(lbs)
2-Wheel
Cart Capacity
(lbs)
Height
Range
Wt.
(lbs)
AWR-G-28-6A Warranty PDF 73-1/4" 2,800 2,000 6"-21" 41
AWR-G-28-7A Warranty PDF 85" 2,800 1,800 6"-25" 59
AWR-G-28-8A Warranty PDF 96-3/4" 2,500 1,650 6"-29" 61
AWR-G-28-9A Warranty PDF 108-1/2" 2,500 1,600 6"-33" 63
AWR-G-28-10A Warranty PDF 120-1/4" 2,200 1,500 6"-38" 68
AWR-G-28-12A Warranty PDF 143-3/4" 1,900 1,400 6"-46" 77
AWR-G-28-14A Warranty PDF 167-1/4" 1,600 1,200 6"-56" 89
AWR-G-28-16A Warranty PDF 190-3/4" 1,000 1,000 6"-62" 122
AWR-G-38-6A Warranty PDF 73-1/4" 2,800 2,000 6"-21 55
AWR-G-38-7A Warranty PDF 85" 2,800 1,800 6"-25 59
AWR-G-38-8A Warranty PDF 96-3/4" 2,500 1,650 6"-29" 66
AWR-G-38-9A Warranty PDF 108-1/2" 2,500 1,600 6"-33" 73
AWR-G-38-10A Warranty PDF 120-1/4" 2,200 1,500 6"-38" 80
AWR-G-38-12A Warranty PDF 143-3/4" 1,900 1,400 6"-46" 94
AWR-G-38-14A Warranty PDF 167-1/4" 1,600 1,200 6"-56" 123
AWR-G-38-16A Warranty PDF 190-3/4" 1,000 1,000 6"-62" 142
Aluminum Grip-Strut Walk Ramps with Handrail
AWR-G-28-6A-HR Warranty PDF 73-1/4" 2,800 2,000 6"-21" 41
AWR-G-28-7A-HR Warranty PDFPhoto Gallery 85" 2,800 1,800 6"-25" 59
AWR-G-28-8A-HR Warranty PDF 96-3/4" 2,500 1,650 6"-29" 61
AWR-G-28-9A-HR Warranty PDF 108-1/2" 2,500 1,600 6"-33" 63
AWR-G-28-10A-HR Warranty PDF 120-1/4" 2,200 1,500 6"- 38" 68
AWR-G-28-12A-HR Warranty PDF 143-3/4" 1,900 1,400 6"-46" 77
AWR-G-28-14A-HR Warranty PDF 167-1/4" 1,600 1,200 6"-56" 89
AWR-G-28-16A-HR Warranty PDF 190-3/4" 1,000 1,000 6"-62" 122
AWR-G-38-6A-HR Warranty PDF 73-1/4" 2,800 2,000 6"-21" 55
AWR-G-38-7A-HR Warranty PDF 85" 2,800 1,800 6"-25" 59
AWR-G-38-8A-HR Warranty PDF 96-3/4" 2,500 1,650 6"-29" 66
AWR-G-38-9A-HR Warranty PDF 108-1/2" 2,500 1,600 6"-33" 73
AWR-G-38-10A-HR Warranty PDF 120-1/4" 2,200 1,500 6"38" 80
AWR-G-38-12A-HR Warranty PDF 143-3/4" 1,900 1,400 6"-46" 94
AWR-G-38-14A-HR Warranty PDF 167-1/4" 1,600 1,200 6"-56" 123
AWR-G-38-16A-HR Warranty PDF 190-3/4" 1,000 1,000 6"-62" 142
ALUMINUM GRIP-STRUT WALK RAMPS WITH TRANSPORT WHEELS
Model PDF Usable
Length
4-Wheel
Cart Capacity
(lbs)
2-Wheel
Cart Capacity
(lbs)
Height
Range (in.)
Wt.
(lbs)
AWR-G-28-10A-WH Warranty PDF 120-1/4" 2,200 1,500 18-7/8"-38" 68
AWR-G-28-12A-WH Warranty PDF 143-1/4" 1,900 1,400 17-1/4"-46" 77
AWR-G-28-14A-WH Warranty PDF 167-1/4" 1,600 1,200 16-5/16"-56" 89
AWR-G-28-16A-WH Warranty PDF 190-3/4" 1,000 1,000 15-11/16"-62" 122
AWR-G-38-10A-WH Warranty PDF 120-1/4" 2,200 1,500 18-7/8"-38" 80
AWR-G-38-12A-WH Warranty PDF 143-1/4" 1,900 1,400 17-1/4"-46" 94
AWR-G-38-14A-WH Warranty PDF 167-1/4" 1,600 1,620 16-5/16"-56" 123
AWR-G-38-16A-WH Warranty PDF 190-3/4" 1,000 1,000 15-11/16"-62" 142

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate




model AWR-R-CART-28

Ramp Cart Option, provides for easy one-person ramp positioning and transporting. Pull handle up to vertical position to rotate and lock wheels in down position. Push handle down to unlock and lift wheels so ramp can be used to service lower trailers. Hard rubber wheels measure 10" x 2-1/2.". Minimum ramp service height is 14" with this option. Easy bolt-on installation to any size AWR. Walk ramp sold separately.



Model PDFs Style Wt.
(lbs)
AWR-R-CART-28 Warranty PDF Ramp Cart Option 55
AWR-R-CART-38 Warranty PDF Ramp Cart Option 65

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

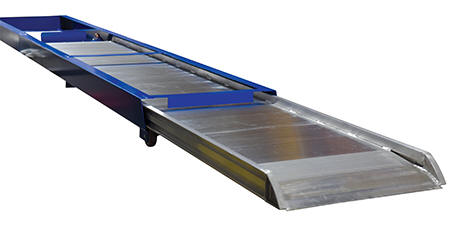

model AWR-TM-28-12A

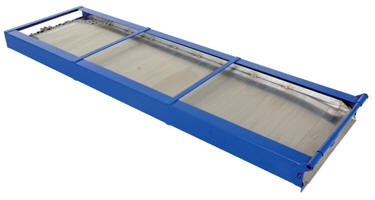

Ramp includes steel pocket frame for under-truck mounting. Frame includes linkage to prevent ramp from falling out. Manual spring-loaded lock secures ramp into frame. Handle loops are included to help with deploying the ramp. Overlap style end lip rests on trailer bed and provides smooth transition. Each unit includes two safety chains to connect ramp to trailer for safety. Curb height is 2". Solid treadplate deck type features non-slip serrations for extra grip. 100% welded aluminum construction is light-weight and will not rust.

Aluminum Truck Mounted Walk Ramp

Model PDF Height
Range
Usable
Length
Capacity (lbs)
 4-Wheel
Cart
Capacity (lbs)
2-Wheel
Cart
Wt.
(lbs)
Treadplate 28" Wide/ 26" Usable
AWR-TM-28-12A Warranty PDF 6"-46" 144-7/16' 1,900 1,400 203
AWR-TM-28-14A Warranty PDF 6"-54" 170-15/16' 1,600 1,200 231
AWR-TM-28-16A Warranty PDF 6"-62" 189' 1,000 1,000 255
= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate




Load and unload equipment from trucks using these Heavy Duty Fiberglass Walk Ramps. Reinforced fiberglass construction provides up to 3,000 pounds capacity. Abrasive surface provides good traction in wet or dry conditions. 1" high curb on each side of ramp. Not for use with fork trucks or pallet trucks.

Heavy Duty Fiberglass Walkramps
Model PDF Overall
Width
Overall
Length
Capacity
(lbs)
Max
Working
Height
Wt.
(lbs)
FWR-3010-50 Warranty PDFPhoto Gallery 30" 10' 3,000 30" 225
FWR-3012-50 Warranty PDFPhoto Gallery 30" 12' 3,000 35" 260
FWR-3014-50 Warranty PDF 30" 14' 3,000 45" 260
FWR-3610-50 Warranty PDFPhoto Gallery 36" 10' 3,000 30" 260
FWR-3612-50 Warranty PDFPhoto Gallery 36" 12' 3,000 35" 314
FWR-3614-50 Warranty PDFPhoto Gallery 36" 14' 3,000 45" 300

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

back to top^


The Autoloader Ramp has all the great features of the Heavy Duty Fiberglass Walkramps except with one outstanding difference.  The Autoloader Ramp may be separated in half to provide two ramps which may be used to load automobiles and other vehicles.  Autoloader ramps have 5,000 pounds capacity.

Fiberglass Autoloaders
Model PDFs Overall
Width
Individual
Width
Ramp
Length
Capacity
(lbs)
Max.
Working
Height
Wt.
(lbs)
FAL-3610-50 Warranty PDF 36" 18" 10' 5,000 30" 255/PR.
FAL-3612-50 Warranty PDF 36" 18" 12' 5,000 35" 290/PR.
FAL-3614-50 Warranty PDF 36" 18" 14' 5,000 45" 330/PR.
FAL-3616-50 Warranty PDF 36" 18" 16' 5,000 50" 385/PR.

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

back to top^

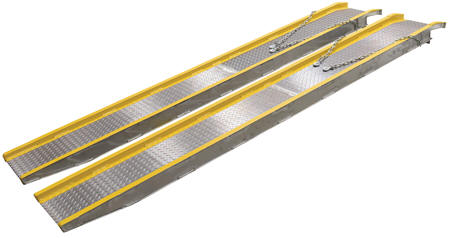

model VTR-5.5-14-10

Provide a safe means for driving vans, pick-up trucks and some passenger vehicles from ground level into and out of high building entrances. Ramps can be securely fastened to dock with w/ chains (34") attached to ramps with hook on the end. To avoid hang-ups measure under clearance and wheelbase of vehicle. The usable width is 14". Side curbs are 1-1⁄4" high. Welded aluminum construction. Models are sold in pairs.



model VTR-5.5-14-20


model VTR-7-14-12
Aluminum Vehicle Twin Ramps
Model PDF Load Capacity
Per Pair (lbs.)
Working
Height
(max to min)
Overall
Width
Usable
Width
Overall
Length
Wt.
(lbs)
VTR-7-14-8 Warranty PDFPhoto Gallery 7,000 17"-12" 17-5/16" 14" 96-1/2" 226
VTR-5.5-14-10 Warranty PDFPhoto Gallery 5,500 22"-16" 17-5/16" 14" 120-1/2" 382
VTR-7-14-12 Warranty PDFPhoto Gallery 7,000 27"-19" 17-5/16" 14" 144-1/2" 417
VTR-6-14-14 Warranty PDFPhoto Gallery 6,000 32"-22" 17-5/16" 14" 168-1/2" 487
VTR-5.5-14-16 Warranty PDFPhoto Gallery 5,500 36"-25" 17-5/16" 14" 192-1/2" 586
VTR-6-14-18 Warranty PDFPhoto Gallery 6,000 41"-29" 18-9/16" 14" 216-1/2" 801
VTR-5.5-14-20 Warranty PDFPhoto Gallery 5,500 46"-32" 18-9/16" 14" 240-1/2" 889
VTR-5.5-14-24 Warranty PDFPhoto Gallery 5,500 55"-39" 18-9/16" 14" 288-1/2" 1083

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

Freight Quote



Copyright 2018
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale



FAL Series Owners Manual

Check Out Our:

Loading Ramps

Wheelchair Ramps

Loading Dock Equipment
View 3D Interactive Loading Dock Equipment Catalog








  |  Ergonomic  |  Loading Dock  |  Material Handling  |  Drum Handling  |  Packaging  |  Storage Solutions  | Facilities Maintenance | Ladders

Phone (260) 665-7586 Fax (260) 665-1339 E-mail: sales@vestil.com

PROP 65 WARNING
