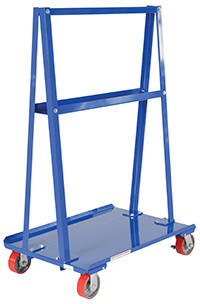

model AF-3060

If you need to move bulky sheets of material such as drywall, plywood, paneling, or sheets of metal, you need the heavy-duty A-Frame Cart.  A convenient parts tray is included between the A-frame uprights.  Unit is easily secured for loading and unloading by using the foot operated
caster lock.  Includes two rigid and two swivel casters.  All steel construction with a durable powder coat finish.  Ships knockdown, assembly required.

model AF-2436

model AF-3672

AF-3672 360

A-Frame Cart
Model PDF's Deck Size
Uniform Static
Capacity (lbs)
AF-2436 Warranty PDFPhoto GalleryCompliance Certificate 24"x36" 2,000 5"x2" Poly-on-Steel 195
AF-2448 Warranty PDFPhoto GalleryCompliance Certificate 24"x48" 2,000 5"x2" Poly-on-Steel 215
AF-3048 Warranty PDFPhoto GalleryCompliance Certificate 30"x48" 2,000 5"x2" Poly-on-Steel 230
AF-3060 Warranty PDFPhoto GalleryCompliance Certificate 30"x60" 2,000 5"x2" Poly-on-Steel 258
AF-3672 Warranty PDFPhoto GalleryCompliance Certificate 36"x72" 2,000 5"x2" Poly-on-Steel 287

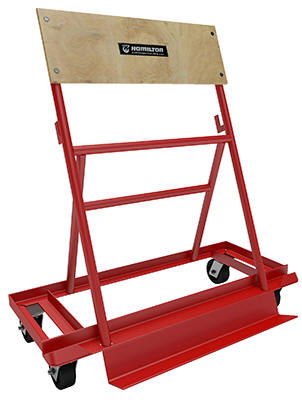

model AFC-2242-R

A-Frame Steel Trucks make it easy to move sheets and panels. All steel frames with 3/16" angle base and A-Frame of structural tubing. L-shaped lugs on rear of frame support length of pipe which can be inserted to support extra-long loads. Units come with four swivel casters 5"x1".

model AFC-2242-M

A-Frame Steel Trucks
Model PDFs Size
AFC-2242-R Warranty PDFPhoto Gallery 22-3/4"x42-5/8"x47" 800 Mold on Rubber 100
AFC-2242-P Warranty PDFPhoto Gallery 22-3/4"x42-5/8"x47" 1,500 Phenolic 100
AFC-2242-M Warranty PDFPhoto Gallery 22-3/4"x42-5/8"x47" 1,500 Steel 100

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
