model TSCT-2

model TSCT-2B

model TSCT-3

model TSCT-3B

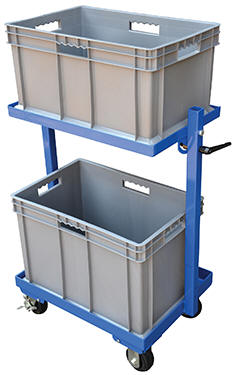

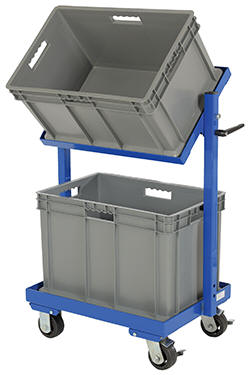

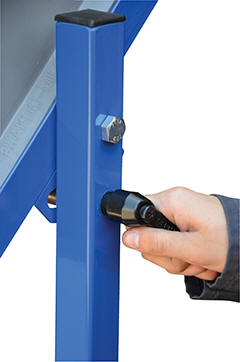

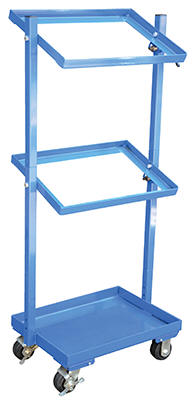

This unique cart makes it easy to organize and reach parts. Tilting shelves allow easy access to baskets. Ideal for stocking parts in work stations. Casters allow the parts to be moved to wherever they are needed. Upper shelves will tilt between 0 and 45. Shelf angle is locked with a hand operated friction lock screw. Bottom shelf will tilt at 26 with clevis pens provided. Bottom shelf includes a 2" high lip on all four sides. Middle and top shelves include a 1-1/2."H lip on all four sides. Bottom shelf height is 5-7/8.". Middle shelf height is 34". Top shelf height is 57." Overall cart size (not including baskets) is 19-1/4"W x 30-11/16"L x 60-5/8"H (37-5/8"H for two-shelf models). Rolls smoothly on two (2) rigid and two (2) swivel with brakes 4" x 2" casters. Steel construction. Baked-in powder-coated toughness.

model TSCT-LGB

model TSCT-MDB
model TSCT-SMB
Multi-Tier Stock Carts
Model PDF's Usable Shelf Size
Uniform Static
Capacity (lbs)
Basket Size
TSCT-2 Warranty PDFCompliance Certificate 16"x23-5/8" 200 None 108
TSCT-3 Warranty PDFCompliance Certificate 16"x23-5/8" 300 None 134
TSCT-2B Warranty PDFCompliance Certificate 16"x23-5/8" 200 (1)15"x23"x16"
TSCT-3B Warranty PDFCompliance Certificate 16"x23-5/8" 300 (1)15"x23"x16"
Additional Plastic Bins
Model PDF's Overall Size
(W x L x H)
Load Capacity
TSCT-LGB Warranty PDFCompliance Certificate 15-1/2"x23-1/2"x16-1/2" 150 10
TSCT-MDB Warranty PDFCompliance Certificate 15-1/2"x23-1/2x12-1/2" 125 8
TSCT-SMB Warranty PDFCompliance Certificate 11-1/2"x15-1/2"x8-1/2" 83 4

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

Freight Quote



Copyright 2019
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale

Download the Multi-Tier Stock Carts Assembly Sheet in PDF format.
