WB01372_.gif (406 bytes) Steel Platform Trucks SPT series & ESPT series

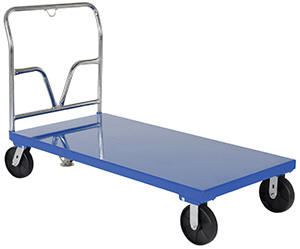

model SPT-3060

Solid, smooth steel deck is all welded and features structural reinforcement underneath for extra strength. Includes one removable high-polished steel handle and rolls smoothly on (2) rigid and (2) swivel casters. Series SPT comes standard with a floor lock and a durable blue powder coat finish.



model SPT-2448


 model SPT-3672


model ECSPT-2448

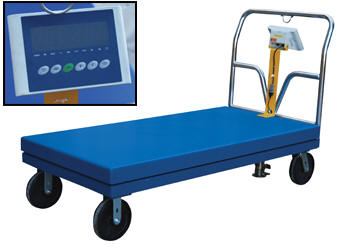

series SPT-SCL


OPTIONAL WRITING TABLE
model WT-TBL
Steel Platform Truck
Model PDF Deck Size
(WxL)
Deck
Height
Uniform Static
Capacity (lbs)
Caster
Type
Wt.
(lbs)
SPT-2448 Warranty PDFCompliance Certificate 24"x48" 11-11/16" 3,600 8"x2" Glass Filled Nylon 197
SPT-3060 Warranty PDFCompliance Certificate 30"x60" 11-11/16" 3,600 8"x2"Glass Filled Nylon 229
SPT-3672 Warranty PDFCompliance Certificate 36"x72" 11-11/16" 3,600 8"x2"Glass Filled Nylon 265
ECSPT-2448 Warranty PDFCompliance Certificate 24"x48" 11-7/8" 2,000 6"x2"Rubber 125
SPT-2448-SCL Warranty PDFCompliance Certificate 24"x48" 15-1/16" 3,600 8"x2"Glass Filled Nylon 375
SPT-3060-SCL Warranty PDFCompliance Certificate 30"x60" 15-1/16" 3,600 8"x2"Glass Filled Nylon 463
SPT-3672-SCL Warranty PDFCompliance Certificate 36"x72" 15-1/16" 3,600 8"x2"Glass Filled Nylon 569
WT-TBL Warranty PDFCompliance Certificate Writing Table measures 10-1/2"Wx13-9/16"H with 1" lip 7
SPT-SL-JACK Warranty PDFCompliance Certificate Semi-Live Skid Jack 25
SPT-SL-LEG-24 Warranty PDF Leg Kit for 24" SPTS 15
SPT-SL-LEG-24 Warranty PDF Leg Kit for 30" SPTS 16
SPT-SL-LEG-24 Warranty PDF Leg Kit for 36" SPTS 17

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate




model SPT-SL-24

Transport large items easily with our Semi-Live Steel Skids and Lever Jack.  The unit is constructed of a baked-in powder-coated toughness 12 gauge thick steel platform with two (2) rigid 6" x 2" glass-filled nylon casters for smooth portability.  The front of the unit includes attached legs which create stability once unit is in the level position.  The optional lever jack allows the unit to be pulled while still maintaining an ergonomic position. Handle measures 58" long.

Semi-Live Steel Skid Legs & Lever Jacks
Model PDF Skid Size
(WxL)
Deck
Height
Capacity
(lbs)
Wt.
(lbs)
SPT-SL-24 Warranty PDFCompliance Certificate 24"x48" 9-3/8" 1,600 98
SPT-SL-30 Warranty PDFCompliance Certificate 30"x60" 9-3/8" 1,600 128
SPT-SL-36 Warranty PDFCompliance Certificate 36"x72" 9-3/8" 1,600 142

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
