WB01372_.gif (406 bytes) Fifth Wheel Steer Trailers - FWST series

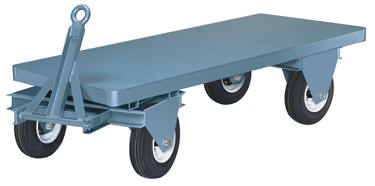

model FWST-48-10PNU

Fifth Wheel Steer Trailers feature steering that resembles children’s little red wagons. These industrial workhorses move heavy loads around plants and distribution centers. 14” square steel plates sandwich a UHMW disk, secured by a 1-1/4” kingpin, comprising the massive fifth-wheel assembly. Equipped with proper couplers, fifth wheel steer trailers can be connected into “trains” to move even larger loads of merchandise. Front and rear axles are precisely located for optimal steering and load accommodation. Custom deck sizes and hardwood decks available, contact factory.



model FWST-36-4PNU

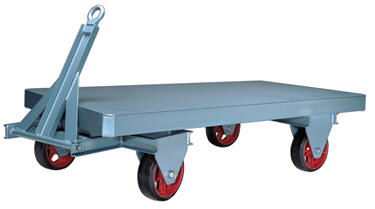

model FWST-48-10P

Fifth Wheel Steer Trailers
Model PDFs Deck Type Platform
Size (WxL)
Capacity
(lbs)
Wheels Wt
(lbs)
FWST-36-4P Warranty PDFPhoto GalleryCompliance Certificate  Smooth 12 gauge 36"x72" 5,000 Polyurethane 375
FWST-36-4PNU Warranty PDFPhoto GalleryCompliance Certificate  Smooth 12 gauge 36"x72" 4,500 Pneumatic 485
FWST-48-4P Warranty PDFPhoto GalleryCompliance Certificate Smooth 12 gauge 48"x96" 5,000 Polyurethane 480
FWST-48-4PNU Warranty PDFPhoto GalleryCompliance Certificate Smooth 12 gauge 48"x96" 4,500 Pneumatic 480
FWST-48-10P Warranty PDFPhoto GalleryCompliance Certificate Smooth 7 gauge 48"x96" 10,000 Polyurethane 850
FWST-48-10PNU Warranty PDFPhoto GalleryCompliance Certificate Smooth 7 gauge 48"x96" 10,000 Solid Pneumatic 850
FWST-512-10P Warranty PDFPhoto GalleryCompliance Certificate Smooth 7 gauge 60"x144" 10,000 Polyurethane 1,200
FWST-512-10PNU Warranty PDFPhoto GalleryCompliance Certificate Smooth 7 gauge 60"x144" 10,000 Solid Pneumatic 1,200

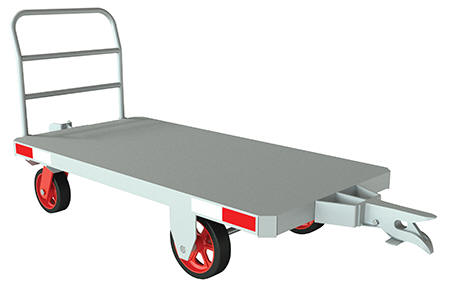

WB01372_.gif (406 bytes) Caster Steer Towable Trailers - CSTT series


Caster Steer Trailers are engineered for power towing.  Units are standard with heavy duty couplers and swivel casters drop-forged steel construction with integrally forged kingpin and precision thrust bearing.  Standard wheels are 10”x3” swivel casters in the front, and 12”x3” polyurethane or mold on rubber casters in the back of the trailer (to make it easier to maneuver).  Handle is 26” high above deck and channel reinforced pipe sockets at swivel end.   Other custom deck sizes and hardwood decks available, contact factory.

Caster Steer Towable Trailers
Model PDFs Deck
Type
Platform
Size (WxL)
Capacity
(lbs)
Deck
Height
Wheels Wt.
(lbs)
CSTT-36-4MR Warranty PDFPhoto GalleryCompliance Certificate Smooth 12 gauge 36"x72" 3,000 15-3/4" Mold On Rubber 425
CSTT-36-4P Warranty PDFPhoto GalleryCompliance Certificate Smooth 12 gauge 36"x72" 4,000 15-3/4" Polyurethane on Iron 425
CSTT-48-4MR Warranty PDFPhoto GalleryCompliance Certificate Smooth 12 gauge 48"x96" 3,000 15-3/4" Mold On Rubber 595
CSTT-48-4P Warranty PDFPhoto GalleryCompliance Certificate Smooth 12 gauge 48"x96" 4,000 15-3/4" Polyurethane on Iron 595

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
