PREMIUM QUALITY CASTERS

WB01372_.gif (406 bytes) High Quality Non-Marking Thermoplastic Rubber



SWIVEL
model CST-F40-6X2DK-S


RIGID
model CST-F40-6X2DK-S


SWIVEL with BRAKE
model CST-F40-6X2DK-SWB

Made of high-tech thermoplastic rubber, TPR (Duratekฎ) mechanically bonded to core.  Gray tread color. 65 Shore A. Wheel core is constructed of polyolefin. Made in Taiwan.



• Kingpinless     • Resists Most Solvents, Oil, Grease, & Water
• Non-Marking     • Higher Capacity than Standard TPR
• Smooth Operation     • Great for Factory, Institution, and Food Service Environments
• Exceptional Floor Preservation     • Roller Bearing (available with precision ball bearings) - contact factory

High Quality Non-Marking Thermoplastic Rubber Casters
Model Caster
Size
Capacity Overall
Height
Top Plate
Size
Wt
(lbs)
SWIVEL CASTERS (swivel rig zerk fitting & axle wheel zerk fitting)
CST-F40-6X2DK-S 6"x2" 600 lb. 7-1/2" 4"x4-1/2" 5.55
RIGID CASTERS (axle wheel zerk fitting)
CST-F40-6X2DK-R 6"x2" 600 lb. 7-1/2" 4"x4-1/2" 5
SWIVEL CASTERS WITH  BRAKE  (swivel rig zerk fitting & axle wheel zerk fitting)
CST-F40-6X2DK-SWB 6"x2" 600 lb. 7-1/2" 4"x4-1/2" 6.05




SWIVEL
model CST-ALK-4X1.5SR-S


RIGID
model CST-ALK-4X1.5SR-R


SWIVEL WITH TOTAL BRAKE
model CST-ALK-4X1.5SR-SWTB

Made of 100% pure polyurethane tread (Duratoughฎ). Designed with a new liquid cast flow affusion that ensures a 100% bond and "zero" trapped air.  Green tread color. 90 ฑ5 Shore A. Wheel center is constructed of polyolefin.  Made in Taiwan.



• Kingpinless   • 100% Bond of Tread to Core
• Non-Marking    • Resists Oil, Grease, Water, and Most Solvents
• Smooth Roll   • Roller Bearing (available with precision ball bearings) - contact factory

High Quality Non-Marking Polyurethane-Elastomer Casters
Model Caster
Size
Capacity Overall
Height
Top Plate
Size
Wt
(lbs)
SWIVEL CASTERS  (swivel rig zerk fitting & axle wheel zerk fitting)
CST-F40-6X2DT-S 6"x2" 900 lb. 7-1/2" 4"x4-1/2" 5.75
CST-F40-8X2DT-S 8"x2" 1,000 lb. 9-1/2" 4"x4-1/2" 5.75
RIGID CASTERS (axle wheel zerk fitting)
CST-F40-6X2DT-R 6"x2" 900 lb. 7-1/2" 4"x4-1/2" 5
CST-F40-8X2DT-R 8"x2" 1,000 lbs 9-1/2" 4"x4-1/2" 6.25
SWIVEL CASTERS WITH BRAKE  (swivel rig zerk fitting & axle wheel zerk fitting)
CST-F40-6X2DT-SWB 6"x2" 900 lb. 7-1/2" 4"x4-1/2" 6.07
CST-F40-8X2DT-SWB 8"x2" 1,000 lb. 9-1/2" 4"x4-1/2" 7.25




SWIVEL
model CST-F40-8X2SI-S


RIGID
model CST-F40-6X2SI-R


SWIVEL WITH BRAKE
model CST-F40-8X2SI-SWB

Made of exclusive premium grade proprietary polyurethane with donut tread (Sirius Heavy Dutyฎ).
Ideal for applications where superior strength and high ergonomic performance is required. Orange
tread color. 85 ฑ5 Shore A. Wheel core is constructed of aluminum. Made in Taiwan.



• Kingpinless
• High Capacity
• Non-Marking
• Precision Sealed Ball Bearing
• Ideal for TOWLINE Applications (⅜" diameter steel ball bearings absorb thrust and load)
• Donut Tread Allows for Easier Roll Ability
• Precision Machined and Induction Hardened Raceway

Premium Heavy Duty Polyurethane
Model Caster
Size
Capacity Overall
Height
Top Plate
Size
Wt
(lbs)
SWIVEL CASTERS  (swivel rig zerk fitting & axle wheel zerk fitting)
CST-F40-6X2SI-S 6"x2" 1,500 lb. 7-1/2" 4"x4-1/2" 6.25
CST-F40-8X2SI-S 8"x2" 2,000 lb. 9-1/2" 4"x4-1/2" 7.75
RIGID CASTERS (axle wheel zerk fitting)
CST-F40-6X2SI-R 6"x2" 1,500 lb. 7-1/2" 4"x4-1/2" 5.75
CST-F40-8X2SI-R 8"x2" 2,000 lb. 9-1/2" 4"x4-1/2" 7.25
SWIVEL CASTERS WITH BRAKE  (swivel rig zerk fitting & axle wheel zerk fitting)
CST-F40-6X2SI-SWB 6"x2" 1,500 lb. 7-1/2" 4"x4-1/2" 6.63
CST-F40-8X2SI-SWB 8"x2" 2,000 lb. 9-1/2" 4"x4-1/2" 8.00




SWIVEL
model CST-ALK-4X1.5SR-S


RIGID
model CST-ALK-4X1.5SR-R


SWIVEL WITH TOTAL BRAKE
model CST-ALK-4X1.5SR-SWTB

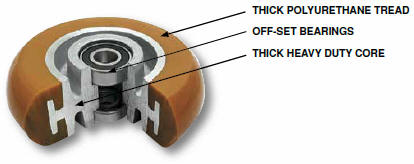

Made of proprietary polyurethane-elastomer that allows tread to retain its shape, reject debris, and increase its stored energy to boost ergonomic performance. This superior caster is designed to reduce the force exerted to turn or start rolling, even when all wheels are not parallel. It also features neoprene sealed precision ball bearings and hardened raceways, providing a smooth rotation with less effort. Caramel tread color. 83+/-5 Shore A. Wheel core is constructed of aluminum. Made in the USA*.



• Kingpinless
• 100% Mechanical Bond to Core
• Reduce Push/Pull Effort Up to 50%
• Non-Marking
• Sealed Neoprene Precision Ball Bearing
• Noise Reduction
• Polyurethane Tread is Nearly 2" Thick
• Thicker, Heavier Duty Core for Long Lasting Durability
• Bearings are Off-Set for Greater Ergonomics and Load Distribution
• Crown Tread Reduces Push/Pull Effort
• Thicker Top Hat Bushings for Extended Life

High-Quality Polyurethane-Elastomer
Model Caster
Size
Capacity Overall
Height
Top Plate
Size
Wt
(lbs)
SWIVEL CASTERS  (swivel rig zerk fitting & axle wheel zerk fitting)
CST-JKING-6X2UL-S 6"x2" 1,250 lb. 7-1/2" 4"x4-1/2" 7.3
CST-JKING-8X2UL-S 8"x2" 1,500 lb. 10-1/8" 4"x4-1/2" 8.5
RIGID CASTERS (axle wheel zerk fitting)
CST-JKING-6X2UL-R 6"x2" 1,250 lb. 7-1/2" 4"x4-1/2" 5.55
CST-JKING-8X2UL-R 8"x2" 1,500 lb. 10-1/8" 4"x4-1/2" 7
SWIVEL CASTERS WITH BRAKE  (swivel rig zerk fitting & axle wheel zerk fitting)
CST-JKING-6X2UL-SWB 6"x2" 1,250 lb. 7-1/2" 4"x4-1/2" 7.65
CST-JKING-8X2UL-SWB 8"x2" 1,500 lb. 10-1/8" 4"x4-1/2" 9.5
 S and SWB models Swivel Rig Zerk Fitting
