SUPERIOR QUALITY CASTERS




model CST-AL-4X1NY-S


model CST-AL-5X2NY-S


model CST-AL-4X1NY-R


model CST-AL-5X2NY-R


model CST-AL-4X1NY-SWTB


model CST-AL-5X2NY-SWTB

Made of impact-resistant nylon. Smooth running performance on even floors.  Gray tread color. 70 Shore D. Wheel core material is nylon. Made in Germany.

• Maintenance-Free • Exceptionally Low Rolling Resistance
• Impact Resistant • High Abrasion Resistance
• High Chemical Resistance • Bearing Dust Cover Seals • Non Staining/Non-Marking

High Quality Nylon Casters
Model Caster
Size
Capacity Overall
Height
Wheel
Bearing
Caster
Raceway
Wt
(lbs)
SWIVEL CASTERS
CST-AL-4X1NY-S 4"x1-7/16" 400 lb. 5-1/8" Precision Ball Double Ball 1.55
CST-AL-5X2NY-S 5"x1-9/16" 400 lb. 6-1/8" Precision Ball Double Ball 1.90
RIGID CASTERS
CST-AL-4X1NY-R 4"x1-7/16" 400 lb. 5-1/8" Precision Ball -- 1.32
CST-AL-5X2NY-R 5"x1-9/16" 400 lb. 6-1/8" Precision Ball -- 1.65
SWIVEL CASTERS WITH TOTAL BRAKE
CST-AL-4X1NY-SWTB 4"x1-7/16" 400 lb. 5-1/8" Precision Ball Double Ball 1.60
CST-AL-5X2NY-SWTB 5"x1-9/16" 400 lb. 6-1/8" Precision Ball Double Ball 2.22

WB01372_.gif (406 bytes) High Quality Non-Marking Polyurethane-Elastomer



SWIVEL
model CST-AL-5X2EX-S


RIGID
model CST-AL-5X2EX-R


SWIVEL WITH TOTAL BRAKE
model CST-AL-5X2EX-SWTB

Made from high-quality, reaction-cast polyurethane-elastomer (Extrathane Softฎ).  Butterscotch tread color. 92 Shore A. Wheel core constructed of die cast aluminum.  Made in Germany.

• Maintenance-Free • Low Rolling Resistance
• High Chemical Resistance • Non-Marking
• Bearing Dust Cover Seals

High Quality Non-Marking Polyurethane-Elastomer Casters
Model Caster
Size
Capacity Overall
Height
Wheel
Bearing
Caster
Raceway
Wt
(lbs)
SWIVEL CASTERS
CST-AL-5X2EX-S 5"x1-9/16" 400 lb. 6-1/8" Precision Ball Double Ball 2.50
RIGID CASTERS
CST-AL-5X2EX-R 5"x1-9/16" 400 lb. 6-1/8" Precision Ball -- 2.14
SWIVEL CASTERS WITH TOTAL BRAKE
CST-AL-5X2EX-SWTB 5"x1-9/16" 400 lb. 6-1/8" Precision Ball Double Ball 2.85

WB01372_.gif (406 bytes) High Quality Non-Marking Polyurethane-Elastomer



SWIVEL
model CST-AL-4X2SO-S


SWIVEL
model CST-AL-5X2SO-S


RIGID
model CST-AL-4X2SO-R


RIGID
model CST-AL-5X2SO-R


SWIVEL WITH TOTAL BRAKE
model CST-AL-4X2SO-SWTB


SWIVEL WITH TOTAL BRAKE
model CST-AL-5X2SO-SWTB

Made of reaction-cast polyurethane-elastomer (Softhaneฎ). Incredible  operational comfort due to an extremely thick elastic tread. Green tread color. 75 Shore A. Wheel core constructed of die cast aluminum. Made in Germany.

• Maintenance-Free
• High Chemical Resistance
• High Dynamic Load Capacity
• High Abrasion Resistance
• Low Operating Noise
• Bearing Dust Cover Seals
• Thick elastic tread for smooth operation

High Quality Non-Marking Polyurethane-Elastomer Casters
Model Caster
Size
Capacity Overall
Height
Wheel
Bearing
Caster
Raceway
Wt
(lbs)
SWIVEL CASTERS
CST-AL-4X2SO-S 4"x1-9/16" 400 lb. 5-1/8" Precision Ball Double Ball 2.2
CST-AL-5X2SO-S 5"x1-9/16" 400 lb. 6-1/8" Precision Ball Double Ball 3.9
RIGID CASTERS
CST-AL-4X2SO-R 4"x1-9/16" 400 lb. 5-1/8" Precision Ball -- 1.9
CST-AL-5X2SO-R 5"x1-9/16" 400 lb. 6-1/8" Precision Ball -- 2.25
SWIVEL CASTERS WITH TOTAL BRAKE
CST-AL-4X2SO-SWTB 4"x1-9/16" 400 lb. 5-1/8" Precision Ball Double Ball 2.5
CST-AL-5X2SO-SWTB 5"x1-9/16" 400 lb. 6-1/8" Precision Ball Double Ball 2.95

WB01372_.gif (406 bytes) High Quality Non-Marking Thermoplastic Polyurethane



model CST-AL-4X1TPU-S


model CST-AL-5X2TPU-S


model CST-AL-4X1TPU-R


model CST-AL-5X2TPU-R


model CST-AL-4X1TPU-SWTB


model CST-AL-5X2TPU-SWTB
Made from high-quality thermoplastic polyurethane (TPU). Gray tread
color. 94 Shore A. Wheel core is constructed of impact resistant nylon.
Made in Germany.

• Maintenance-Free
• High Operational Comfort
• Good Floor Preservation
• Non-Staining
• Non-Marking
• Bearing Dust Cover Seals

High Quality Non-Marking Thermoplastic Polyurethane
Model Caster
Size
Capacity Overall
Height
Wheel
Bearing
Caster
Raceway
Wt
(lbs)
SWIVEL CASTERS
CST-AL-4X1TPU-S 4"x1-1/4" 400 lb. 5-1/8" Precision Ball Double Ball 1.67
CST-AL-5X1TPU-S 5"x1-1/4" 400 lb. 6-1/8" Precision Ball Double Ball 1.85
RIGID CASTERS
CST-AL-4X1TPU-R 4"x1-1/4" 400 lb. 5-1/8" Precision Ball -- 1.27
CST-AL-5X1TPU-R 5"x1-1/4" 400 lb. 6-1/8" Precision Ball -- 1.50
SWIVEL CASTERS WITH TOTAL BRAKE
CST-AL-4X1TPU-SWTB 4"x1-1/4" 400 lb. 5-1/8" Precision Ball Double Ball 1.90
CST-AL-5X1TPU-SWTB 5"x1-1/4" 400 lb. 6-1/8" Precision Ball Double Ball 2.20




SWIVEL
model CST-AL-4X1SR-S


SWIVEL
model CST-AL-5X1SR-S


RIGID
model CST-AL-4X1SR-R


RIGID
model CST-AL-5X1SR-R


SWIVEL WITH TOTAL BRAKE
model CST-AL-4X1SR-SWTB


SWIVEL WITH TOTAL BRAKE
model CST-AL-5X1SR-SWTB

Made of elastic solid rubber for smooth rolling quality. Vulcanized onto wheel center. Blue tread color. 65 Shore A. Wheel core constructed of impact resistant nylon.  Made in Germany.

• Maintenance-Free
• Non-Marking
• Low Rolling Resistance
• High Operational Comfort
• Bearing Dust Cover Seals

High Quality Non-Marking Solid Rubber
Model Caster
Size
Capacity Overall
Height
Wheel
Bearing
Caster
Raceway
Wt
(lbs)
SWIVEL CASTERS
CST-AL-4X1SR-S 4"x1-3/8" 400 lb. 5-1/8" Precision Ball Double Ball 1.70
CST-AL-5X1SR-S 5"x1-3/8" 400 lb. 6-1/8" Precision Ball Double Ball 1.94
RIGID CASTERS
CST-AL-4X1SR-R 4"x1-3/8" 400 lb. 5-1/8" Precision Ball -- 1.35
CST-AL-5X1SR-R 5"x1-3/8" 400 lb. 6-1/8" Precision Ball -- 1.60
SWIVEL CASTERS WITH TOTAL BRAKE
CST-AL-4X1SR-SWTB 4"x1-3/8" 400 lb. 5-1/8" Precision Ball Double Ball 1.86
CST-AL-5X1SR-SWTB 5"x1-3/8" 400 lb. 6-1/8" Precision Ball Double Ball 2.30




SWIVEL
model CST-ALK-4X1.5SR-S


RIGID
model CST-ALK-4X1.5SR-R


SWIVEL WITH TOTAL BRAKE
model CST-ALK-4X1.5SR-SWTB

Made of elastic solid rubber for smooth rolling quality. Vulcanized onto wheel center.  Gray tread color. 65 Shore A. Wheel core is constructed of impact resistant nylon.  Made in Germany.

• Maintenance-Free
• Non-Marking
• Low Rolling Resistance
• High Operational Comfort
• Bearing Dust Cover Seals

High Quality Non-Marking Polyurethane-Elastomer Casters
Model Caster
Size
Capacity Overall
Height
Wheel
Bearing
Caster
Raceway
Wt
(lbs)
SWIVEL CASTERS
CST-ALK-4X1.5SR-S 4"x1-1/2" 400 lb. 5-1/8" Precision Ball Double Ball 2.5
RIGID CASTERS
CST-ALK-4X1.5SR-R 4"x1-1/2" 400 lb. 5-1/8" Precision Ball -- 2.95
SWIVEL CASTERS WITH TOTAL BRAKE
CST-ALK-4X1.5SR-SWTB 4"x1-1/2" 400 lb. 5-1/8" Precision Ball Double Ball 2.97




SWIVEL
model CST-ALEH-6X2NY-S


SWIVEL
model CST-ALEH-8X2NY-S


RIGID
model CST-ALEH-8X2NY-R


SWIVEL WITH TOTAL BRAKE
model CST-ALEH-8X2NY-SWTB

Made of impact-resistant nylon. Smooth running performance on even floors.
Gray tread color. 70 Shore D. Wheel core material is nylon. Made in Germany.

• Low Rolling Resistance
• Bearing Dust Cover Seals
• High Abrasion Resistance
• Impact Resistant
• High Chemical Resistance

High Quality Nylon
Model Caster
Size
Capacity Overall
Height
Wheel
Bearing
Caster
Raceway
Wt
(lbs)
SWIVEL CASTERS
CST-ALEH-6X2NY-S 6"x2" 1,250 lbs. 7-1/2" Precision Ball Double Ball 4.85
CST-ALEH-8X2NY-S 8"x2" 1,250 lbs. 9-1/2" Precision Ball Double Ball 7
RIGID CASTERS
CST-ALEH-6X2NY-R 6"x2" 1,250 lbs. 7-1/2" Precision Ball -- 1.35
CST-ALEH-8X2NY-R 8"x2" 1,250 lbs. 9-1/2" Precision Ball -- 1.60
SWIVEL CASTERS WITH TOTAL BRAKE
CST-ALEH-6X2NY-SWTB 6"x2" 1,250 lbs. 7-1/2" Precision Ball Double Ball 1.86
CST-ALEH-8X2NY-SWTB 8"x2" 1,250 lbs. 9-1/2" Precision Ball Double Ball 2.30

WB01372_.gif (406 bytes) High Quality Non-Marking Polyurethane-Elastomer



SWIVEL
model CST-AL-5X2EX-S


SWIVEL
model CST-ALEH-8X2EX-S


RIGID
model CST-ALEH-6X2EX-R


RIGID
model CST-ALEH-8X2EX-R


SWIVEL WITH TOTAL BRAKE
model CST-AL-5X2EX-SWTB


SWIVEL WITH TOTAL BRAKE
model CST-ALEH-8X2EX-SWTB

Made from high-quality, reaction-cast polyurethane-elastomer (Extrathaneฎ).

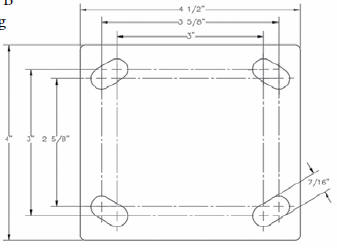

Model CST-ALH-6X2EX-S, -R, -SWTB feature a 4ฝ" x 6ผ" top plate.  Drawing below represents other models.  Butterscotch tread color. 92 Shore A. Wheel core is constructed of die cast aluminum. Made in Germany.

• Non-Staining
• Bearing Dust Cover Seals
• Non-Marking
• High Chemical Resistance

High Quality Non-Marking Polyurethane-Elastomer
Model Caster
Size
Capacity Overall
Height
Wheel
Bearing
Caster
Raceway
Wt
(lbs)
SWIVEL CASTERS
CST-ALH-5X2EX-S 5"x1-9/16" 770 lbs. 6-1/2" Precision Ball Double Ball 4.75
CST-ALH-6X2EX-S 6"x2" 1,100 lbs. 7-3/4" Precision Ball Double Ball 7.89
CST-ALEH-6X2EX-S 6"x2" 1,100 lbs. 7-1/2" Precision Ball Double Ball 5.04
CST-ALEH-8X2EX-S 8"x2" 1,250 lbs. 9-1/2" Precision Ball Double Ball 6.26
RIGID CASTERS
CST-ALH-5X2EX-R 5"x1-9/16" 770 lbs. 6-1/2" Precision Ball -- 4.40
CST-ALH-6X2EX-R 6"x2" 1,100 lbs. 7-3/4" Precision Ball -- 5.85
CST-ALEH-6X2EX-R 6"x2" 1,100 lbs. 7-1/2" Precision Ball -- 4.18
CST-ALEH-8X2EX-R 8"x2" 1,250 lbs. 9-1/2" Precision Ball -- 6.40
SWIVEL CASTERS WITH TOTAL BRAKE
CST-ALH-5X2EX-SWTB 5"x1-9/16" 770 lbs. 6-1/2" Precision Ball Double Ball 5.50
CST-ALH-6X2EX-SWTB 6"x2" 1,100 lbs. 7-3/4" Precision Ball Double Ball 8.50
CST-ALEH-6X2EX-SWTB 6"x2" 1,100 lbs. 7-1/2" Precision Ball Double Ball 6.17
CST-ALEH-8X2EX-SWTB 8"x2" 1,250 lbs. 9-1/2" Precision Ball Double Ball 7.53




SWIVEL
model CST-ALK-5X2SR-S


RIGID
model CST-ALK-5X2SR-R


SWIVEL WITH TOTAL BRAKE
model CST-ALK-5X2SR-SWTB

Made of elastic solid rubber for smooth rolling. Vulcanized onto wheel center.
Gray tread color. 65 Shore A. Wheel core is constructed of impact resistant nylon.  Made in Germany.

• Bearing Dust Cover Seals
• Low Rolling Resistance
• Non-Marking
• High Operational Comfort

High Quality Non-Marking Solid Rubber
Model Caster
Size
Capacity Overall
Height
Wheel
Bearing
Caster
Raceway
Wt
(lbs)
SWIVEL CASTERS
CST-ALK-5X2SR-S 5"x1-9/16" 550 lbs. 6-1/8" Precision Ball Double Ball 2,80
RIGID CASTERS
CST-ALK-5X2SR-R 5"x1-9/16" 550 lbs. 6-1/8" Precision Ball -- 2.50
SWIVEL CASTERS WITH TOTAL BRAKE
CST-ALK-5X2SR-SWTB 5"x1-9/16" 550 lbs. 6-1/8" Precision Ball Double Ball 3.10

WB01372_.gif (406 bytes) High Quality Non-Marking Thermoplastic Polyurethane



SWIVEL
model CST-ALEH-6X2TPU-S


SWIVEL
model CST-ALEH-8X2TPU-S


RIGID
model CST-ALEH-8X2TPU-R


SWIVEL WITH TOTAL BRAKE
model CST-ALEH-8X2TPU-SWTB

Made from high-quality thermoplastic polyurethane (TPU). Gray tread color.
94 Shore A. Wheel core is constructed of impact resistant nylon. Made in Germany.

• Bearing Dust Cover Seals
• Non-Marking
• High Operational Comfort
• Good Floor Preservation
• Non-Staining

High Quality Non-Marking Thermoplastic Polyurethane
Model Caster
Size
Capacity Overall
Height
Wheel
Bearing
Caster
Raceway
Wt
(lbs)
SWIVEL CASTERS
CST-ALEH-6X2TPU-S 6"x1-3/4" 1,110 lbs. 7-1/2" Precision Ball Double Ball 4.53
CST-ALEH-8X2TPU-S 8"x2" 1,250 lbs. 9-1/2" Precision Ball Double Ball 5.8
RIGID CASTERS
CST-ALEH-6X2TPU-R 6"x1-3/4" 1,110 lbs. 7-1/2" Precision Ball -- 4.70
CST-ALEH-8X2TPU-R 8"x2" 1,250 lbs. 9-1/2" Precision Ball -- 6.06
SWIVEL CASTERS WITH TOTAL BRAKE
CST-ALEH-6X2TPU-SWTB 6"x1-3/4" 1,110 lbs. 7-1/2" Precision Ball Double Ball 5.73
CST-ALEH-8X2TPU-SWTB 8"x2" 1,250 lbs. 9-1/2" Precision Ball Double Ball 7.11

WB01372_.gif (406 bytes) High Quality Non-Marking Polyurethane-Elastomer



SWIVEL
model CST-ALH-6X2BESO-S


SWIVEL
model CST-ALH-8X2BESO-S



RIGID
model CST-ALH-6X2BESO-R


RIGID
model CST-ALH-8X2BESO-R


SWIVEL WITH TOTAL BRAKE
model CST-ALH-6X2BESO-SWTB



SWIVEL WITH TOTAL BRAKE
model CST-ALH-8X2BESO-SWTB

Made of reaction-cast polyurethane-elastomer (Besthane Softฎ). Provides paramount operational comfort due to a thick elastic tread. High dynamic load capacity. Blue tread color. 75 Shore A. Wheel core is constructed of die cast aluminum. Made in Germany.

• Non-Marking
• Non-Staining
• Low Rolling Resistance
• Low Operating Noise
• Bearing Dust Cover Seals

High Quality Non-Marking Polyurethane-Elastomer
Model Caster
Size
Capacity Overall
Height
Wheel
Bearing
Caster
Raceway
Wt
(lbs)
SWIVEL CASTERS
CST-ALH-6X2BESO-S 6"x2" 1,110 lbs. 7-3/4" Precision Ball Double Ball 8.30
CST-ALH-8X2BESO-S 8"x2" 1,540 lbs. 9-5/8" Precision Ball Double Ball 9.45
RIGID CASTERS
CST-ALH-6X2BESO-R 6"x2" 1,250 lbs. 7-1/2" Precision Ball -- 1.35
CST-ALH-8X2BESO-R 8"x2" 1,250 lbs. 9-1/2" Precision Ball -- 1.60
SWIVEL CASTERS WITH TOTAL BRAKE
CST-ALH-6X2BESO-SWTB 6"x2" 1,250 lbs. 7-1/2" Precision Ball Double Ball 1.86
CST-ALH-8X2BESO-SWTB 8"x2" 1,250 lbs. 9-1/2" Precision Ball Double Ball 2.30




SWIVEL
model CST-ALEH-6X2SO-S


SWIVEL
model CST-ALEH-8X2SO-S


RIGID
model CST-ALEH-8X2SO-R


SWIVEL WITH TOTAL BRAKE
model CST-ALEH-8X2SO-SWTB

Made of reaction-cast polyurethane-elastomer (Softhaneฎ). Operational
comfort due to an extremely thick, elastic tread. Green tread color. 75 Shore A. Wheel core is constructed of die cast aluminum. Made in Germany.

• Bearing Dust Cover Seals
• Non-Marking
• High Dynamic Load Capacity
• High Chemical Resistance
• High Abrasion Resistance

Polyurethane-Elastomer
Model Caster
Size
Capacity Overall
Height
Wheel
Bearing
Caster
Raceway
Wt
(lbs)
SWIVEL CASTERS
CST-ALEH-6X2SO-S 6"x2-1/8" 1,100 lbs. 7-1/2" Precision Ball Double Ball 5.55
CST-ALEH-8X2SO-S 8"x2" 1,250 lbs. 9-1/2" Precision Ball Double Ball 6.6
RIGID CASTERS
CST-ALEH-6X2SO-R 6"x2-1/8" 1,100 lbs. 7-1/2" Precision Ball -- 5.65
CST-ALEH-8X2SO-R 8"x2" 1,250 lbs. 9-1/2" Precision Ball -- 6.86
SWIVEL CASTERS WITH TOTAL BRAKE
CST-ALEH-6X2SO-SWTB 6"x2-1/8" 1,100 lbs. 7-1/2" Precision Ball Double Ball 6.65
CST-ALEH-8X2SO-SWTB 8"x2" 1,250 lbs. 9-1/2" Precision Ball Double Ball 8


Copyright ฉ 2018
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale



BUYER'S GUIDE TO CASTERS & WHEELS

Our Other Casters:

Premium Quality Casters

Economical Casters

Specialty Casters

Wheels

Check Out Our:


Floor Locks


Material Handling Carts


Wheel Chocks







  |  Ergonomic  |  Loading Dock  |  Material Handling  |  Drum Handling  |  Packaging  |  Storage Solutions  | Facilities Maintenance | Ladders

Phone (260) 665-7586 • Fax (260) 665-1339 • E-mail: sales@vestil.com
