Carriage Mounted

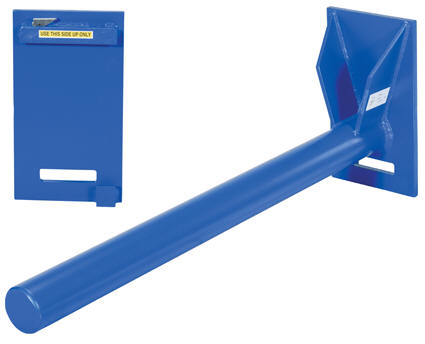

series CCM (model CCM-48-4 shown)

The Coil Lifter is used to easily maneuver many types of coiled material. The Coil Lifter is available in both carriage mount and fork mount. To accommodate multiple core sizes and capacities, units can be ordered with either a 4-1/2" or 5-5/8" diameter rams. Sturdy steel construction and painted blue. Fork mounted units feature 7-1/2" wide x 2-1/2" tall (usable) fork pockets on 24" centers while the carriage mounted units are secured to the fork truck carriage with a spring loaded lock pin.  Class III available, contact factory.



Fork Mounted

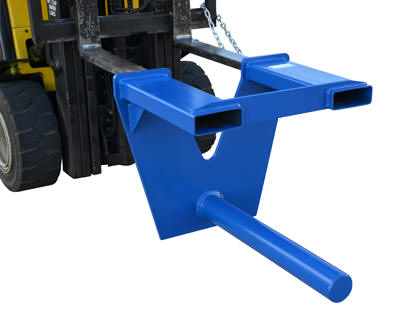

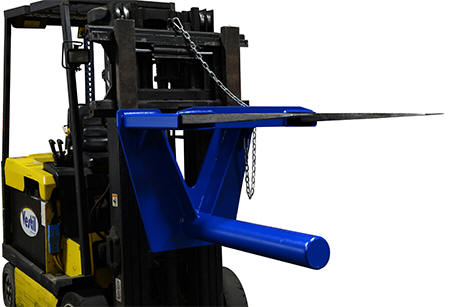

series CCF (model CCF-36-5 shown)



model CCF-24-4




model CCF-48-5




model CCF-60-4



model CCF-60-5
Coil Rams/Lifters
Model PDF Ram
Length
Ram
Diameter
Carriage
Class
Capacity
(lbs)
Wt.
(lbs)

Fork Mounted - Inverted

CCF-24-4 Warranty PDFPhoto GalleryCompliance Certificate 24" 4-1/2" -- 3,000 258
CCF-36-4 Warranty PDFPhoto GalleryCompliance Certificate 36" 4-1/2" -- 3,000 273
CCF-48-4 Warranty PDFPhoto GalleryCompliance Certificate 48" 4-1/2" -- 3,000 288
CCF-60-4 Warranty PDFPhoto GalleryCompliance Certificate 60" 4-1/2" -- 3,000 300
CCF-24-5 Warranty PDFPhoto GalleryCompliance Certificate 24" 5-5/8" -- 5,500 267
CCF-36-5 Warranty PDFPhoto GalleryCompliance Certificate 36" 5-5/8" -- 5,500 281
CCF-48-5 Warranty PDFPhoto GalleryCompliance Certificate 48" 5-5/8" -- 5,500 306
CCF-60-5 Warranty PDFPhoto GalleryCompliance Certificate 60" 5-5/8" -- 5,500 320
Carriage Mounted - Class II
CCM-24-4 Warranty PDFPhoto GalleryCompliance Certificate 24" 4-1/2" 2 3,000 144
CCM-36-4 Warranty PDFPhoto GalleryCompliance Certificate 36" 4-1/2" 2 3,000 159
CCM-48-4 Warranty PDFPhoto GalleryCompliance Certificate 48" 4-1/2" 2 3,000 174
CCM-60-4 Warranty PDFPhoto GalleryCompliance Certificate 60" 4-1/2" 2 3,000 189
CCM-24-5 Warranty PDFPhoto GalleryCompliance Certificate 24" 5-5/8" 2 5,500 158
CCM-36-5 Warranty PDFPhoto GalleryCompliance Certificate 36" 5-5/8" 2 5,500 179
CCM-48-5 Warranty PDFPhoto GalleryCompliance Certificate 48" 5-5/8" 2 5,500 200
CCM-60-5 Warranty PDFPhoto GalleryCompliance Certificate 60" 5-5/8" 2 5,500 220
Carriage Mounted - Class III
CCM-24-4-CL3 Warranty PDFCompliance Certificate 24" 4-1/2" 3 3,000 160
CCM-36-4-CL3 Warranty PDFCompliance Certificate 36" 4-1/2" 3 3,000 175
CCM-48-4-CL3 Warranty PDFCompliance Certificate 48" 4-1/2" 3 3,000 190
CCM-60-4-CL3 Warranty PDFCompliance Certificate 60" 4-1/2" 3 3,000 205
CCM-24-5-CL3 Warranty PDFCompliance Certificate 24" 5-5/8" 3 5,500 175
CCM-36-5-CL3 Warranty PDFCompliance Certificate 36" 5-5/8" 3 5,500 195
CCM-48-5-CL3 Warranty PDFCompliance Certificate 48" 5-5/8" 3 5,500 216
CCM-60-5-CL3 Warranty PDFCompliance Certificate 60" 5-5/8" 3 5,500 237
= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
