WB01372_.gif (406 bytes) Economical Pallet & Container Transporters

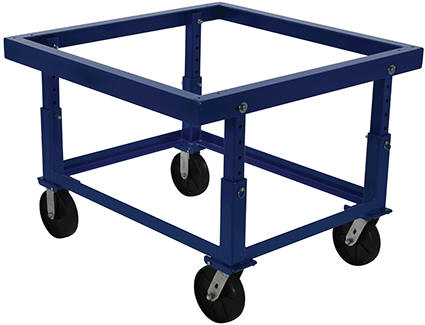

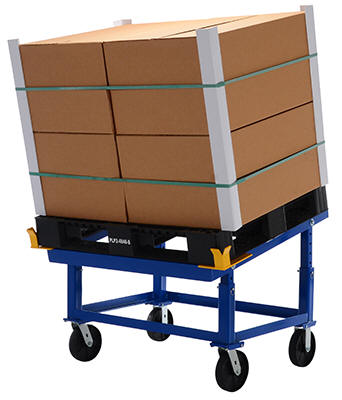

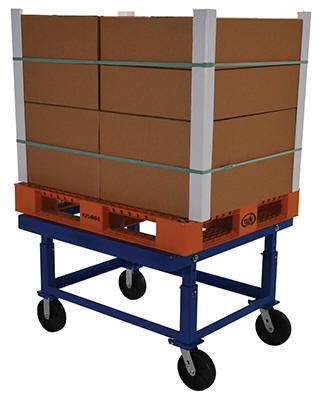

Adjustable Height w/ Tilt
model C-ATH-4048

Reduce fork truck dependency by transporting pallets and crates to workstations with our Economical Pallet & Container Transporters. Units feature 8" glass-filled nylon casters for easier mobility. Choose from three different styles. Adjustable height models can only be adjusted when unloaded. Order optional corner guides for extra stability (2) come standard with model C-ATH-4048. Steel construction. Powder coat finish for added toughness.

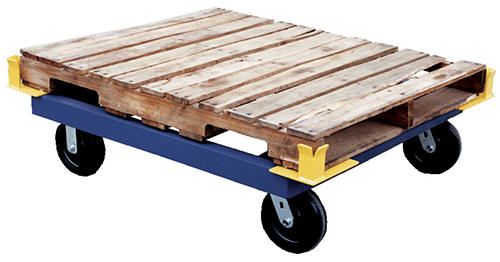

Economy Fixed Height Transporter W/ Optional Corner Guards
model C-FH-4048

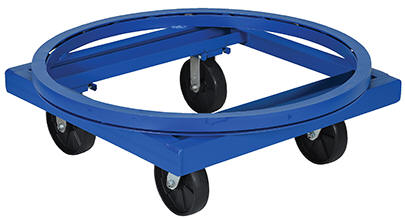

Fixed Height w/ Carousel
model C-FC-40

Economical Pallet & Container Transporters
Model PDFs Service
Range
Uniform Static
Capacity (lbs)
Caster
Size/ Style
Weight
(lbs)
C-ATH-4048 Warranty PDFPhoto GalleryCompliance Certificate 24-1/4" to 32-1/4" 4,000 8" glass filled nylon 240
C-FH-4048 Warranty PDFPhoto GalleryCompliance Certificate 11-3/4" 4,000 8" glass filled nylon 192
C-FC-40 Warranty PDFPhoto GalleryCompliance Certificate 15" 4,000 8" glass filled nylon 191

CG-12-R

Photo GalleryOptional Corner Guide Right (each)

12

CG-12-L

Photo GalleryOptional Corner Guide Left (each) 12

Freight Quote

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
