model VPLDO-S-1824

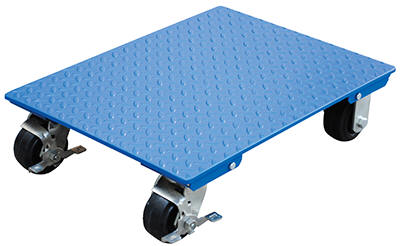

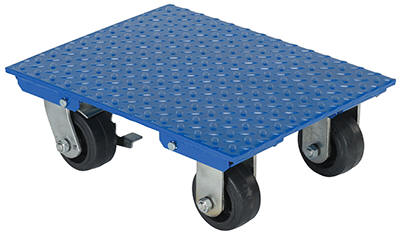

Plate Dollies are manufactured with a 3/8" thick raised diamond pattern aluminum or steel tread-plate.  A smooth deck is available upon request. Dollies are approximately 6" high and include 4" x 2" mold-on-rubber casters, 2 swivel with brake and 2 rigid (Suffix-AS features (4) swivel casters with locks). Optional pull strap or hook is available separately.




model VPLDO-S-1418



model VPLDO-S-1418-AS



model VPLDO-A-1418



model VPLDO-S-1824


model VPLDO/A-1824-AS


model VPLDO-A-2430


Aluminum Plate Dollies
Model PDF Deck Size
(WxL)
Uniform Static
Capacity (lbs)
Deck
Height
Caster
Size
Wt.
(lbs)
VPLDO/A-1418 Warranty PDFCompliance Certificate 14"x18" 1,200 6-1/8" 4"x2" 37
VPLDO/A-1824 Warranty PDFCompliance Certificate 18"x24" 1,200 6-1/8" 4"x2" 43
VPLDO/A-2430 Warranty PDFCompliance Certificate 24"x30" 1,200 6-1/8" 4"x2" 47
VPLDO/A-1418-AS Warranty PDFCompliance Certificate 14"x18" 1,200 6-1/8" 4"x2" 37
VPLDO/A-1824-AS Warranty PDFCompliance Certificate 18"x24" 1,200 6-1/8" 4"x2" 43
VPLDO/A-2430-AS Warranty PDFCompliance Certificate 24"x30" 1,200 6-1/8" 4"x2" 47
Steel Plate Dollies
Model PDF Deck Size
(WxL)
Capacity
(lbs)
Deck
Height
Caster
Size
Wt.
(lbs)
VPLDO/S-1418 Warranty PDFCompliance Certificate 14"x18" 1,200 6" 4"x2" 51
VPLDO/S-1824 Warranty PDFCompliance Certificate 18"x24" 1,200 6" 4"x2" 73
VPLDO/S-2430 Warranty PDFCompliance Certificate 24"x30" 1,200 6" 4"x2" 110
VPLDO/S-1418-AS Warranty PDFCompliance Certificate 14"x18" 1,200 6" 4"x2" 51
VPLDO/S-1824-AS Warranty PDFCompliance Certificate 18"x24" 1,200 6" 4"x2" 73
VPLDO/S-2430-AS Warranty PDFCompliance Certificate 24"x30" 1,200 6" 4"x2" 110
Options
STRAP-8 7 Foot 3 Inches Long Nylon Loop Pull Strap 2
HOOK-8 4 Foot Long Metal Hook 3




model PDA-1627-C-S-H

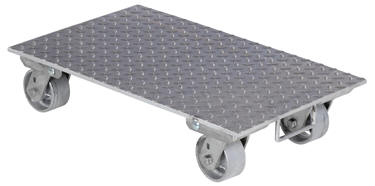

The Aluminum Plate Dollies are ideal for the shipping and distribution facilities.  The construction is manufactured from heavy-duty raised diamond tread plate for strength and extra grip. Casters are available in cast steel or rubber construction for smooth rolling. Products with the suffix "H" includes a carrying handle on one end for easy transporting when dolly is empty.



model PDA-2436-R-S-H


Aluminum Plate Dollies
Model PDF Caster
Type
Capacity
(lbs)
Handle Wt.
(lbs)
PDA-1627-C-S Warranty PDFCompliance Certificate Cast Steel Swivel 2,800 No 82
PDA-2436-C-S Warranty PDFCompliance Certificate Cast Steel Swivel 2,800 No 90
PDA-1627-R-S Warranty PDFCompliance Certificate Rubber Swivel 1,200 No 65
PDA-2436-R-S Warranty PDFCompliance Certificate Rubber Swivel 1,200 No 82
PDA-1627-C-S-H Warranty PDFCompliance Certificate Cast Steel Swivel 2,800 Yes 82
PDA-2436-C-S-H Warranty PDFCompliance Certificate Cast Steel Swivel 2,800 Yes 90
PDA-1627-R-S-H Warranty PDFCompliance Certificate Rubber Swivel 1,200 Yes 65
PDA-2436-R-S-H Warranty PDFCompliance Certificate Rubber Swivel 1,200 Yes 82

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
