model FE-5-72

Provide the extra support needed to lift long or large objects with a fork truck. All model are designed of a welded steel construction. Models with prefix FE-4, FE-5 and FE-6 have cast steel tips, while models with prefix FE-7 and FE-8 have a tapered cut front end. Steel retaining strap (loop style*) prevents fork extensions from sliding off forks during use.  Baked-in powder coat finish for added toughness.  OSHA regulations require that extensions are no more than 150% of the existing fork length. (e.g. 48" existing forks, the fork extension should not exceed 72").  Maximum uniform capacity is 4,000 pounds evenly distributed per pair.

 Type of Extensions


Standard Loop Style

Rear Spacer
suffix RS

Pin Style
suffix P



FE-4-48


FE-4-48-P


FE-4-54-BK


FE-4-63


FE-4-63-P


FE-4-72


FE-4-72-BK


FE-4-84


FE-4-96-BK


FE-4-108-P


FE-5-48


FE-5-66


FE-5-72


FE-5-96


FE-6-72-P


FE-6-90

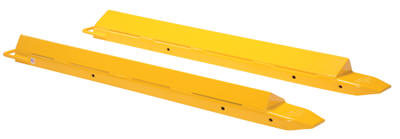

model FE-8-72-P

HOW TO USE / INSTALLATION

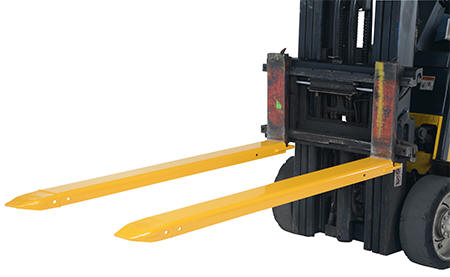

Standard Loop Style: Insert loop at the tip of the fork and slide it up at a 45° angle then lay it down over the existing fork.

Pin Style (suffix P): Remove pin and lay extension over fork or drive fork truck into the extension. Re-insert the pin behind the heel of the fork to secure extension.

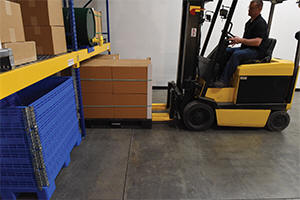

Rear Spacer (suffix RS): Insert the loop at the tip of the fork and slide it up at a 45° angle then lay it down over the existing forks. Load pallets into rear of trailer conveniently and easily. Practical for pushing pallets two or three deep into a trailer.

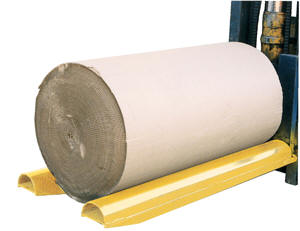

Ideal for moving around large rolls of material. Available in round or triangular style. Baked-in powder coated finish for added toughness. To install, insert loop at the tip of the fork and slide it up at a 45° angle. Then, lay it down over the fork. OSHA regulations require that extensions do not exceed the length of the fork by more than 150% (e.g. 48" existing forks, the fork extension should not exceed 72").



TRIANGULAR LOCK
model FE-5-54-T



ROUND STYLE
model FE-4-63-R

Fork Extensions
Model PDF's Accommodates Fork Width Fork Extension Inside Width Useable Length Max. Fork Thickness  Wt. (lbs) Pair
Fork Extensions (Yellow Loop Style)
FE-4-48 Warranty PDFCompliance Certificate 4" 4-1/2" 48" 2" 74
FE-4-54 Warranty PDFCompliance Certificate 4" 4-1/2" 54" 2" 84
FE-4-63 Warranty PDFCompliance Certificate 4" 4-1/2" 63" 2" 98
FE-4-66 Warranty PDFCompliance Certificate 4" 4-1/2" 66" 2" 100
FE-4-72 Warranty PDFCompliance Certificate 4" 4-1/2" 72" 2" 114
FE-4-84 Warranty PDFCompliance Certificate 4" 4-1/2" 84" 2" 145
FE-4-90 Warranty PDFCompliance Certificate 4" 4-1/2" 90" 2" 166
FE-4-96 Warranty PDFCompliance Certificate 4" 4-1/2" 96" 2" 172
FE-5-48 Warranty PDFCompliance Certificate 5" 5-1/2" 48" 2" 86
FE-5-54 Warranty PDFCompliance Certificate 5" 5-1/2" 54" 2" 96
FE-5-63 Warranty PDFCompliance Certificate 5" 5-1/2" 63" 2" 110
FE-5-66 Warranty PDFCompliance Certificate 5" 5-1/2" 66" 2" 116
FE-5-72 Warranty PDFCompliance Certificate 5" 5-1/2" 72" 2" 128
FE-5-84 Warranty PDFCompliance Certificate 5" 5-1/2" 84" 2" 160
FE-5-90 Warranty PDFCompliance Certificate 5" 5-1/2" 90" 2" 179
FE-5-96 Warranty PDFCompliance Certificate 5" 5-1/2" 96" 2" 191
FE-6-48 Warranty PDFCompliance Certificate 6" 6-1/2" 48" 2-1/2" 94
FE-6-54 Warranty PDFCompliance Certificate 6" 6-1/2" 54" 2-1/2" 104
FE-6-63 Warranty PDFCompliance Certificate 6" 6-1/2" 63" 2-1/2" 116
FE-6-66 Warranty PDFCompliance Certificate 6" 6-1/2" 66" 2-1/2" 128
FE-6-72 Warranty PDFCompliance Certificate 6" 6-1/2" 72" 2-1/2" 134
FE-6-84 Warranty PDFCompliance Certificate 6" 6-1/2" 84" 2-1/2" 190
FE-6-90 Warranty PDFCompliance Certificate 6" 6-1/2" 90" 2-1/2" 204
FE-6-96 Warranty PDFCompliance Certificate 6" 6-1/2" 96" 2-1/2" 218
Fork Extensions (Black Loop Style)
FE-4-54-BK Warranty PDFCompliance Certificate 4" 4-1/2" 54" 2" 84
FE-4-63-BK Warranty PDFCompliance Certificate 4" 4-1/2" 63" 2" 98
FE-4-72-BK Warranty PDFCompliance Certificate 4" 4-1/2" 72" 2" 114
FE-4-84-BK Warranty PDFCompliance Certificate 4" 4-1/2" 84" 2" 124
FE-4-96-BK Warranty PDFCompliance Certificate 4" 4-1/2" 96" 2" 142
FE-5-54-BK Warranty PDFCompliance Certificate 5" 5-1/2" 54" 2" 96
FE-5-63-BK Warranty PDFCompliance Certificate 5" 5-1/2" 63" 2" 110
FE-5-72-BK Warranty PDFCompliance Certificate 5" 5-1/2" 72" 2" 128
FE-5-84-BK Warranty PDFCompliance Certificate 5" 5-1/2" 84" 2" 129
FE-5-96-BK Warranty PDFCompliance Certificate 5" 5-1/2" 96" 2" 158
FE-6-54-BK Warranty PDFCompliance Certificate 6" 6-1/2" 54" 2-1/2" 104
FE-6-63-BK Warranty PDFCompliance Certificate 6" 6-1/2" 63" 2-1/2" 116
FE-6-72-BK Warranty PDFCompliance Certificate 6" 6-1/2" 72" 2-1/2" 134
FE-6-84-BK Warranty PDFCompliance Certificate 6" 6-1/2" 84" 2-1/2" 156
FE-6-96-BK Warranty PDFCompliance Certificate 6" 6-1/2" 96" 2-1/2" 181
Fork Extensions (Pin Style)
FE-4-48-P Warranty PDFCompliance Certificate 4" 4-1/2" 48" 2" 73
FE-4-54-P Warranty PDFCompliance Certificate 4" 4-1/2" 54" 2" 83
FE-4-63-P Warranty PDFCompliance Certificate 4" 4-1/2" 63" 2" 97
FE-4-66-P Warranty PDFCompliance Certificate 4" 4-1/2" 66" 2" 101
FE-4-72-P Warranty PDFCompliance Certificate 4" 4-1/2" 72" 2" 113
FE-4-84-P Warranty PDFCompliance Certificate 4" 4-1/2" 84" 2" 123
FE-4-90-P Warranty PDFCompliance Certificate 4" 4-1/2" 90" 2" 130
FE-4-96-P Warranty PDFCompliance Certificate 4" 4-1/2" 96" 2" 141
FE-4-108-P Warranty PDFCompliance Certificate 4" 4-1/2" 120" 2" 193
FE-4-120-P Warranty PDFCompliance Certificate 4" 4-1/2" 120" 2" 220
FE-5-48-P Warranty PDFCompliance Certificate 5" 5-1/2" 48" 2" 85
FE-5-54-P Warranty PDFCompliance Certificate 5" 5-1/2" 54" 2" 95
FE-5-63-P Warranty PDFCompliance Certificate 5" 5-1/2" 63" 2" 109
FE-5-66-P Warranty PDFCompliance Certificate 5" 5-1/2" 66" 2" 114
FE-5-72-P Warranty PDFCompliance Certificate 5" 5-1/2" 72" 2" 127
FE-5-84-P Warranty PDFCompliance Certificate 5" 5-1/2" 84" 2" 161
FE-5-90-P Warranty PDFCompliance Certificate 5" 5-1/2" 90" 2" 140
FE-5-96-P Warranty PDFCompliance Certificate 5" 5-1/2" 96" 2" 192
FE-5-108-P Warranty PDFCompliance Certificate 5" 5-1/2" 108" 2" 216
FE-5-120-P Warranty PDFCompliance Certificate 5" 5-1/2" 120" 2" 230
FE-6-48-P Warranty PDFCompliance Certificate 6" 6-1/2" 48" 2-1/2" 93
FE-6-54-P Warranty PDFCompliance Certificate 6" 6-1/2" 54" 2-1/2" 103
FE-6-63-P Warranty PDFCompliance Certificate 6" 6-1/2" 63" 2-1/2" 115
FE-6-66-P Warranty PDFCompliance Certificate 6" 6-1/2" 63" 2-1/2" 122
FE-6-72-P Warranty PDFCompliance Certificate 6" 6-1/2" 72" 2-1/2" 133
FE-6-84-P Warranty PDFCompliance Certificate 6" 6-1/2" 84" 2-1/2" 155
FE-6-90-P Warranty PDFCompliance Certificate 6" 6-1/2" 90" 2-1/2" 161
FE-6-96-P Warranty PDFCompliance Certificate 6" 6-1/2" 96" 2-1/2" 214
FE-6-108-P Warranty PDFCompliance Certificate 6" 6-1/2" 108" 2-1/2" 216
FE-6-120-P Warranty PDFCompliance Certificate 6" 6-1/2" 120" 2-1/2" 230
FE-7-48-P Warranty PDFCompliance Certificate 7" 7-1/2" 48" 2-1/2" 104
FE-7-54-P Warranty PDFCompliance Certificate 7" 7-1/2" 54" 2-1/2" 116
FE-7-63-P Warranty PDFCompliance Certificate 7" 7-1/2" 63" 2-1/2" 134
FE-7-66-P Warranty PDFCompliance Certificate 7" 7-1/2" 63" 2-1/2" 134
FE-7-72-P Warranty PDFCompliance Certificate 7" 7-1/2" 72" 2-1/2" 152
FE-7-84-P Warranty PDFCompliance Certificate 7" 7-1/2" 84" 2-1/2" 192
FE-7-90-P Warranty PDFCompliance Certificate 7" 7-1/2" 90" 2-1/2" 192
FE-7-96-P Warranty PDFCompliance Certificate 7" 7-1/2" 96" 2-1/2" 192
FE-7-108-P Warranty PDFCompliance Certificate 7" 7-1/2" 108" 2-1/2" 202
FE-7-120-P Warranty PDFCompliance Certificate 7" 7-1/2" 120" 2-1/2" 212
FE-8-48-P Warranty PDFCompliance Certificate 8" 8-1/2" 48" 2-1/2" 104
FE-8-54-P Warranty PDFCompliance Certificate 8" 8-1/2" 54" 2-1/2" 116
FE-8-63-P Warranty PDFCompliance Certificate 8" 8-1/2" 63" 2-1/2" 134
FE-8-66-P Warranty PDFCompliance Certificate 8" 8-1/2" 63" 2-1/2" 134
FE-8-72-P Warranty PDFCompliance Certificate 8" 8-1/2" 72" 2-1/2" 152
FE-8-84-P Warranty PDFCompliance Certificate 8" 8-1/2" 84" 2-1/2" 192
FE-8-90-P Warranty PDFCompliance Certificate 8" 8-1/2" 90" 2-1/2" 192
FE-8-96-P Warranty PDFCompliance Certificate 8" 8-1/2" 96" 2-1/2" 192
FE-8-108-P Warranty PDFCompliance Certificate 8" 8-1/2" 108" 2-1/2" 202
FE-8-120-P Warranty PDFCompliance Certificate 8" 8-1/2" 120" 2-1/2" 202
Specialty Fork Extensions
Model PDF Accommodates Fork Width Fork Extension Inside Width Usable Length Max. Fork Thickness Wt.(lbs.) Pair
Triangular Shaped
FE-4-54-T Warranty PDFCompliance Certificate 4" 4-1/2" 54" 2" 84
FE-4-63-T Warranty PDFCompliance Certificate 4" 4-1/2" 63" 2" 98
FE-5-54-T Warranty PDFCompliance Certificate 5" 5-1/2" 54" 2" 96
FE-5-63-T Warranty PDFCompliance Certificate 5" 5-1/2" 63" 2" 110
Rounded (Dome Shaped)
FE-4-54-R Warranty PDFCompliance Certificate 4" 4-1/2" 54" 2" 82
FE-4-63-R Warranty PDFCompliance Certificate 4" 4-1/2" 63" 2" 96
FE-5-54-R Warranty PDFCompliance Certificate 5" 5-1/2" 54" 2" 96
FE-5-63-R Warranty PDFCompliance Certificate 5" 5-1/2" 63" 2" 110
