WB01372_.gif (406 bytes) Adjustable Steel Gantry Cranes - Knockdown

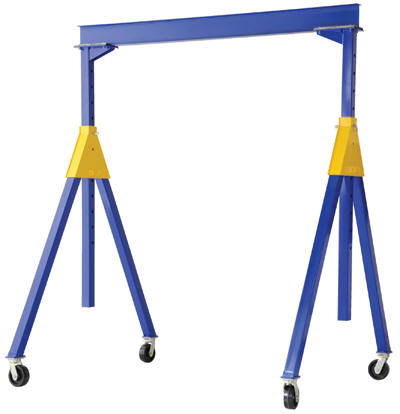

The Adjustable Knockdown Steel Gantry Cranes are uniquely designed to be disassembled when not in use for compact storage and easier transportation / shipping from one job site to another. These cranes have all of the standard features of the AHS cranes with the added bonus of being able to disassemble the unit into a small storage envelope.

These units facilitate easy mobility from one area to another with four (4) 8" swivel glass filled nylon casters with four-position locks on the 2,000 and 4,000 lbs. capacity models, while utilizing phenolic casters on the 6,000 lb. capacity units and steel casters on the 10,000 lbs. capacity models.  More economical and flexible than permanent cranes. Features quick setup design. Order optional lever ratchet for easy one person height adjustment. Height is adjustable in 6" increments. Do not move units while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.  Hoist and trolley can be ordered separately.

Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed. For further details see ASME B30.17.

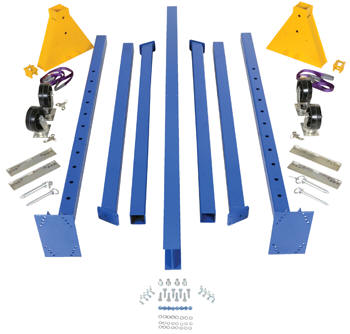

Knockdown individual components can be stored when crane is not needed


Knockdown design allows for complete crane disassembly for lower freight and transportation costs.


AHSN Survey Sheet

Adjustable Height Steel Gantry Cranes
Model PDF's Overall I-Beam Length/ Height Under I-Beam Usable Height Base
Width
I-Beam Flange Width Capacity
(lbs)
Wt (lbs)
AHSN-2-10-12 Photo GalleryWarranty PDF 10' /6" 7'6"to 12' 79-3/4" 4" 2,000 876
AHSN-2-10-14 Photo GalleryWarranty PDF 10' /6" 8'6"to14' 91-1/2" 4" 2,000 952
AHSN-2-10-16 Photo GalleryWarranty PDF 10/6" 10'6"to16' 91-1/2" 4" 2,000 999
AHSN-2-15-7 Photo GalleryWarranty PDF 15' /6" 5'to7' 50" 4" 2,000 740
AHSN-2-15-9 Photo GalleryWarranty PDF 15' /6" 6'to9' 61-7/8" 4" 2,000 818
AHSN-2-15-10 Photo GalleryWarranty PDF 15' /6" 6'6"to10' 67-13/16" 4" 2,000 855
AHSN-2-15-12 Photo GalleryWarranty PDF 15' /6" 7'6"to 12' 79-3/4" 4" 2,000 933
AHSN-2-15-14 Photo GalleryWarranty PDF 15' /6" 8'6"to14' 91-1/2" 4" 2,000 1006
AHSN-2-15-16 Photo GalleryWarranty PDF 15' /6" 10'6"to16' 91-1/2" 4" 2,000 1056
AHSN-2-20-12 Photo GalleryWarranty PDF 20' /10-1/8" 7'6"to 12' 79-3/4" 4" 2,000 1120
AHSN-2-20-14 Photo GalleryWarranty PDF 20' /10-1/8" 8'6"to14' 91-1/2" 4" 2,000 1206
AHSN-2-20-16 Photo GalleryWarranty PDF 20' /10-1/8" 10'6"to16' 91-1/2" 4" 2,000 1242
AHSN-4-10-12 Photo GalleryWarranty PDF 10' /8-1/8" 7'6"to 12' 79-3/4" 4" 4,000 909
AHSN-4-10-14 Photo GalleryWarranty PDF 10' /8-1/8" 8'6"to14' 91-1/2" 4" 4,000 984
AHSN-4-10-16 Photo GalleryWarranty PDF 10' /8-1/8" 10'6"to16' 91-1/2" 4" 4,000 1039
AHSN-4-15-7 Photo GalleryWarranty PDF 15' /8-1/8" 5'to7' 50" 4" 4,000 786
AHSN-4-15-9 Photo GalleryWarranty PDF 15' /8-1/8" 6'to9' 61-7/8" 4" 4,000 857
AHSN-4-15-10 Photo GalleryWarranty PDF 15' /8-1/8" 6'6"to10' 67-13/16" 4" 4,000 908
AHSN-4-15-12 Photo GalleryWarranty PDF 15' /8-1/8" 7'6"to 12' 79-3/4" 4" 4,000 976
AHSN-4-15-14 Photo GalleryWarranty PDF 15' /8-1/8" 8'6"to14' 91-1/2" 4" 4,000 1052
AHSN-4-15-16 Photo GalleryWarranty PDF 15' /8-1/8" 10'6"to16' 91-1/2" 4" 4,000 1101
AHSN-4-20-12 Photo GalleryWarranty PDF 20' /12-3/16" 7'6"to 12' 79-3/4" 4" 4,000 1132
AHSN-4-20-14 Photo GalleryWarranty PDF 20' /12-3/16" 8'6"to14' 91-1/2" 4" 4,000 1212
AHSN-4-20-16 Photo GalleryWarranty PDF 20' /12-3/16" 10'6"to16' 91-1/2" 4" 4,000 1260
AHSN-6-10-12 Photo GalleryWarranty PDF 10' /8-1/8" 7'7"to 12'-1" 76-1/4" 4" 6,000 991
AHSN-6-10-14 Photo GalleryWarranty PDF 10' /8-1/8" 8'7"to14'-1" 88" 4" 6,000 1051
AHSN-6-10-16 Photo GalleryWarranty PDF 10' /8-1/8" 10'7"to16'-1" 88" 4" 6,000 1109
AHSN-6-15-7 Photo GalleryWarranty PDF 15' /10-1/8" 5' 1"to 7'-1" 46-1/2" 4" 6,000 864
AHSN-6-15-9 Photo GalleryWarranty PDF 15' /10-1/8" 6'1"to 9'-1" 58-3/8" 4" 6,000 934
AHSN-6-15-10 Photo GalleryWarranty PDF 15' /10-1/8" 6'7"to10'-1" 64-5/16" 4" 6,000 980
AHSN-6-15-12 Photo GalleryWarranty PDF 15' /10-1/8" 7'7"to 12'-1" 76-1/4" 4" 6,000 1054
AHSN-6-15-14 Photo GalleryWarranty PDF 15' /10-1/8" 8'7"to14'-1" 88" 4" 6,000 1132
AHSN-6-15-16 Photo GalleryWarranty PDF 15' /10-1/8" 10'7"to16'-1" 88" 4" 6,000 1182
AHSN-6-20-12 Photo GalleryWarranty PDF 20' /12-5/16" 7'7"to 12'-1" 76-1/4" 6-1/2" 6,000 1449
AHSN-6-20-14 Photo GalleryWarranty PDF 20' /12-5/16" 8'7"to14'-1" 88" 6-1/2" 6,000 1521
AHSN-6-20-16 Photo GalleryWarranty PDF 20' /12-5/16" 10'7"to16'-1" 88" 6-1/2" 6,000 1569
AHSN-8-10-12 Photo GalleryWarranty PDF 10' /8-1/8" 7'7"to 12'-1" 76-1/4" 4" 8,000 979
AHSN-8-10-14 Photo GalleryWarranty PDF 10' /8-1/8" 8'7"to14'-1" 88" 4" 8,000 1051
AHSN-8-10-16 Photo GalleryWarranty PDF 10' /8-1/8" 10'7"to16'-1" 88" 4" 8,000 1107
AHSN-8-15-7 Photo GalleryWarranty PDF 15' /10-1/8" 5'1"to7'1" 46-1/2" 4" 8,000 862
AHSN-8-15-9 Photo GalleryWarranty PDF 15' /10-1/8" 6'1"to9'1" 58-3/8" 4" 8,000 940
AHSN-8-15-10 Photo GalleryWarranty PDF 15' /10-1/8" 6'7"to10'1" 64-5/16" 4" 8,000 974
AHSN-8-15-12 Photo GalleryWarranty PDF 15' /10-1/8" 7'7"to 12'-1" 76-1/4" 4" 8,000 1050
AHSN-8-15-14 Photo GalleryWarranty PDF 15' /10-1/8" 8'7"to14'-1" 88" 4" 8,000 1142
AHSN-8-15-16 Photo GalleryWarranty PDF 15' /10-1/8" 10'7"to16'-1" 88" 4" 8,000 1182
AHSN-8-20-12 Photo GalleryWarranty PDF 20' /12-5/16" 7'7"to 12'-1" 76-1/4" 6-1/2" 8,000 1445
AHSN-8-20-14 Photo GalleryWarranty PDF 20' /12-5/16" 8'7"to14'-1" 88" 6-1/2" 8,000 1523
AHSN-8-20-16 Photo GalleryWarranty PDF 20' /12-5/16" 10'7"to16'-1"' 88" 6-1/2" 8,000 1557
AHSN-10-15-10* Photo GalleryWarranty PDF 15' /12-3/16" 6'7"to10'1" 64-5/16" 4" 10,000 1355
 ADJUSTABLE STEEL GANTRY CRANE - KNOCKDOWN OPTIONS
Model Description
AHSN-KIT BEAM HEIGHT ADJUSTMENT KIT (2) Weldment Assembles, (2) slings
AHS-STLO STATIONARY LEG OPTION, set of 4 (factory installed) *Not compatible with ASHN-10-15-10*
AHS-STLO-RF STATIONARY LEG OPTION, set of 4 (field installed) *Not compatible with ASHN-10-15-10*

 Usable Distance Between Uprights is Overall Beam Length Minus 12"
 Usable Trolley Travel Length is Overall Beam Length Minus 30"

Freight Quote
