Fixed Height Steel Gantry Cranes - Knockdown

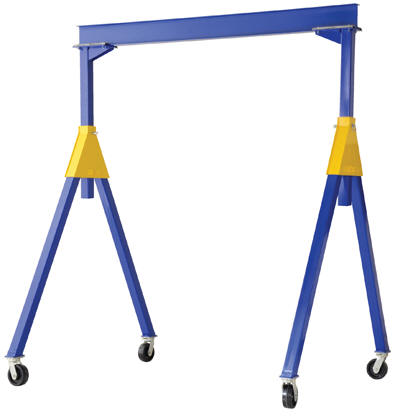

 The Fixed Height Knockdown Industrial Steel Gantry
Cranes are uniquely designed to be disassembled when not in use for
compact storage and easier transportation / shipping from one job
site to another. These cranes have all of the standard
features of the FHS cranes with the added bonus of being able to
disassemble the unit into a small storage envelope.
These units facilitate easy mobility from one area
to another with four (4) 8" swivel glass filled nylon casters with
four-position locks on the 2,000 and 4,000 lbs. capacity models,
while utilizing phenolic casters on the 6,000 lb. capacity units and
steel casters on the 10,000 lbs. capacity models. Features quick setup
design. Do not move units
while loaded. Painted blue finish. Designed for semi-permanent or
permanent applications. Requires assistance from fork truck to
set-up. Hoist and trolley can be ordered separately.
Note: All products should be
inspected frequently to insure safe operation. Final testing and
inspection left to end user after final assembly has been completed.
For further details see ASME B30.17.

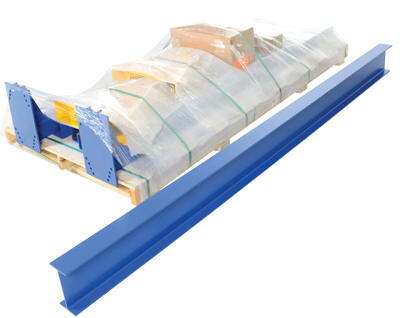

Knockdown design allows for complete crane disassembly for lower
freight and transportation costs.
|
|
Fixed Height Steel Gantry Cranes |
| Model |
PDF's |
Capacity
(lbs) |
Overall I-Beam Length/ Height |
I-Beam
Flange Width |
Under I-Beam Usable Height |
Base
Width |
Wt. (lbs) |
| FHSN-50 |
   |
500 |
8' /6" |
4" |
5'9" |
46-1/2" |
612 |
| FHSN-2-10 |
|
2,000 |
10'/6" |
4" |
10' |
64-1/2" |
768 |
| FHSN-2-15 |
|
2,000 |
15'/6" |
4" |
10' |
64-1/2" |
811 |
| FHSN-2-20 |
|
2,000 |
20'/10-1/8" |
4" |
10' |
64-1/2" |
1060 |
| FHSN-4-10 |
|
4,000 |
10'/8-1/8" |
4" |
10' |
64-1/2" |
866 |
| FHSN-4-15 |
|
4,000 |
15'/8-1/8" |
4" |
10' |
64-1/2" |
961 |
| FHSN-4-20 |
|
4,000 |
20'/12-3/16" |
4" |
10' |
64-1/2" |
1044 |
| FHSN-6-10 |
|
6,000 |
10'/8-1/8" |
4" |
10'1" |
64-1/2" |
1016 |
| FHSN-6-15 |
|
6,000 |
15'/10-1/8" |
4" |
10'1" |
64-1/2" |
1016 |
| FHSN-6-20 |
|
6,000 |
20'/12-5/16" |
6-1/2" |
10'1" |
64-1/2" |
1114 |
| FHSN-8-10 |
|
8,000 |
10'/8-1/8" |
4" |
10'1" |
64-1/2" |
934 |
| FHSN-8-15 |
|
8,000 |
15'/10-1/8" |
4" |
10'1" |
64-1/2" |
933 |
| FHSN-8-20 |
|
8,000 |
20'/12-5/16" |
6-1/2" |
10'1" |
64-1/2" |
933 |
| FHSN-10-10 |
|
10,000 |
10'/10-1/8" |
4" |
10'2" |
64-1/2" |
1266 |
| FHSN-10-15 |
|
10,000 |
15'/12-3/16" |
4" |
10'2" |
64-1/2" |
1275 |
|
Fixed Height Steel Gantry Crane Options |
|
Model |
Description |
|
FHS-STLO |
STATIONARY LEG OPTION, set of 4 (factory installed) |
|
FHS-STLO-RF |
STATIONARY LEG OPTION, set of 4 (field installed) |
 Freight
Quote
