Adjustable and Fixed Height Aluminum Gantry Cranes

FIXED HEIGHT ALUMINUM
GANTRY CRANE
series FHA

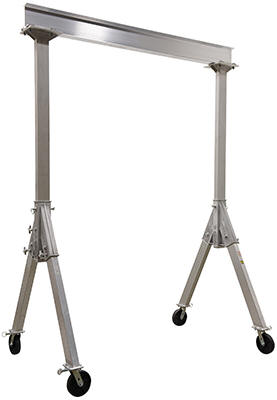

The Adjustable Height Aluminum Gantry Cranes combine
lightweight and rigid construction into one unit. The all aluminum
construction of this gantry crane makes it corrosion resistant and
perfect for outdoor use. The lightweight I-beam allows height
adjustment without the need of a hoist or fork truck. Features quick

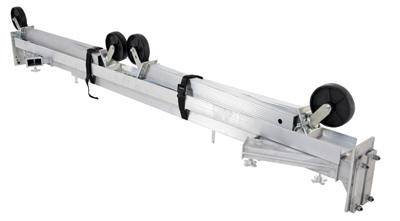

setup design. Included are two (2) straps, allowing transport
of the gantry crane in one neat package. Facilitate easy
mobility from one area to another with four (4) 8" glass filled
swivel casters with four-position locks on the 2,000 and 4,000 lb.
capacity models, while utilizing phenolic casters on the 6,000 lb.
capacity units. Height is adjustable in 6"
increments. Do not move units while loaded. Hoist and trolley can be
ordered separately.

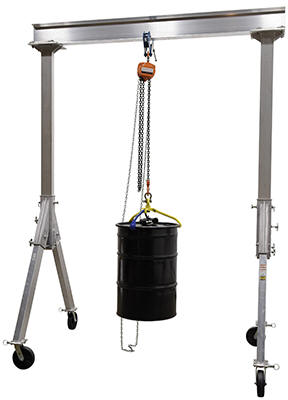

The Fixed Height
Aluminum Gantry Cranes are ideal for variety of industries including
maintenance and production. The aluminum design is easily manageable
and can be simply assembled for immediate use. A fixed height is
perfect for working in a permanent or semi-permanent environment
where the surrounding seldom change. Casters provide a smooth way to
transfer units when unloaded and if changing locations is needed.
Four (4) 8" swivel casters with four position locks (2K-4K models
have glass filled nylon casters, 6K models have phenolic casters. A
strong construction allows for long lasting strength through the
harshest of environments.
The Adjustable
Height Aluminum Gantry Crane with pneumatic
casters are ideal for the manufacturing and maintenance
facilities. The aluminum construction is lightweight, yet strong for
long lasting durability through the harshest of environments. The
pneumatic casters allow the user to quietly move the crane from
workstation to workstation and smoothly roll over rough surfaces,
while not marring. The four-way locking pneumatic casters permit the
user to place the crane in preferred transporting and stationary
positions. Do not move units while loaded. Uniform capacity is 1,500
pounds.

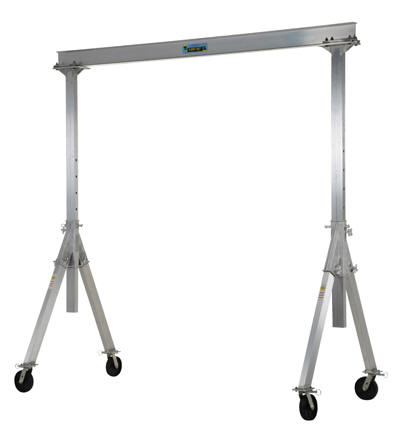

ADJUSTABLE HEIGHT
ALUMINUM GANTRY CRANE
series AHA
• LIGHTWEIGHT • QUICK ASSEMBLY • IDEAL FOR OUTDOOR USE
AHA Survey Sheet
|
|
Adjustable Height Aluminum Gantry Cranes |
| Model |
PDF's |
Caster
Type |
Overall I-Beam
Length/ Height |
Under I-Beam Usable Height |
Base Width |
I-Beam
Flange Width |
Capacity (lbs) |
Wt. (lbs) |
|
AHA-2-8-8 |
   |
Glass Filled Nylon |
8' /6" |
5'-8"to 8'-2" |
53-3/4" |
3-5/16" |
2,000 |
234 |
|
AHA-2-8-10 |
|
Glass Filled Nylon |
8' /6" |
7'8"to 10'-2" |
53-3/4" |
3-5/16" |
2,000 |
239 |
|
AHA-2-8-12 |
|
Glass Filled Nylon |
8' /6" |
9'6"to12' |
53-3/4" |
3-5/16" |
2,000 |
246 |
|
AHA-2-10-8 |
|
Glass Filled Nylon |
10' /6" |
5'-8"to 8'-2" |
53-3/4" |
3-5/16" |
2,000 |
231 |
|
AHA-2-10-10 |
|
Glass Filled Nylon |
10' /6" |
7'8"to 10'-2" |
53-3/4" |
3-5/16" |
2,000 |
252 |
|
AHA-2-10-12 |
|
Glass Filled Nylon |
10' /6" |
9'6"to12' |
53-3/4" |
3-5/16" |
2,000 |
261 |
|
AHA-2-12-8 |
|
Glass Filled Nylon |
12' /8" |
5'-8"to 8'-2" |
53-13/16" |
4" |
2,000 |
266 |
|
AHA-2-12-10 |
|
Glass Filled Nylon |
12' /8" |
7'8"to 10'-2" |
53-13/16" |
4" |
2,000 |
274 |
|
AHA-2-12-12 |
|
Glass Filled Nylon |
12' /8" |
9'6"to12' |
53-13/16" |
4" |
2,000 |
286 |
|
AHA-2-15-8 |
|
Glass Filled Nylon |
15' /8" |
5'-8"to 8'-2" |
53-13/16" |
4-3/16" |
2,000 |
320 |
|
AHA-2-15-10 |
|
Glass Filled Nylon |
15' /8" |
7'8"to 10'-2" |
53-13/16" |
4-3/16" |
2,000 |
364 |
|
AHA-2-15-12 |
|
Glass Filled Nylon |
15' /8" |
9'6"to12' |
53-13/16" |
4-3/16" |
2,000 |
371 |
|
AHA-4-8-8 |
|
Glass Filled Nylon |
8' /8" |
5'-8"to 8'-2" |
53-15/16" |
4" |
4,000 |
276 |
|
AHA-4-8-10 |
|
Glass Filled Nylon |
8' /8" |
7'-8" to 10'-2" |
53-15/16" |
4" |
4,000 |
298 |
|
AHA-4-8-12 |
|
Glass Filled Nylon |
8' /8" |
9'-6"to 12' |
53-15/16" |
4" |
4,000 |
301 |
|
AHA-4-10-8 |
|
Glass Filled Nylon |
10' /8" |
5'-8"to 8'-2" |
53-15/16" |
4-3/16" |
4,000 |
298 |
|
AHA-4-10-10 |
|
Glass Filled Nylon |
10' /8" |
7-'8"to 10'-2" |
53-15/16" |
4-3/16" |
4,000 |
307 |
|
AHA-4-10-12 |
|
Glass Filled Nylon |
10' /8" |
9'-6"to 12' |
53-15/16" |
4-3/16" |
4,000 |
349 |
|
AHA-4-12-8 |
|
Glass Filled Nylon |
12' /8" |
5'-8"to 8'-2" |
53-15/16" |
4-3/16" |
4,000 |
302 |
|
AHA-4-12-10 |
|
Glass Filled Nylon |
12' /8" |
7'-8"to 10'-2" |
53-15/16" |
4-3/16" |
4,000 |
325 |
|
AHA-4-12-12 |
|
Glass Filled Nylon |
12' /8" |
9'-6"to 12' |
53-15/16" |
4-3/16" |
4,000 |
350 |
|
AHA-4-15-8 |
|
Glass Filled Nylon |
15' /10" |
5'-8"to 8'-2" |
53-15/16" |
4-11/16" |
4,000 |
254 |
|
AHA-4-15-10 |
|
Glass Filled Nylon |
15' /10" |
7'-8"to 10'-2" |
53-15/16" |
4-11/16" |
4,000 |
370 |
|
AHA-4-15-12 |
|
Glass Filled Nylon |
15' /10" |
9'-6"to 12' |
53-15/16" |
4-11/16" |
4,000 |
394 |
|
AHA-6-8-8 |
|
Phenolic |
8' /10" |
6'-2"to 8'-2" |
64 11/16" |
4-11/16" |
6,000 |
470 |
|
AHA-6-8-10 |
|
Phenolic |
8' /10" |
8'2"to 10'-2" |
64 11/16" |
4-11/16" |
6,000 |
488 |
|
AHA-6-8-12 |
|
Phenolic |
8' /10" |
10'2"to12'-2" |
64 11/16" |
4-11/16" |
6,000 |
506 |
|
AHA-6-10-8 |
|
Phenolic |
10' /10" |
6'-2"to 8'-2" |
64 11/16" |
4-11/16" |
6,000 |
534 |
|
AHA-6-10-10 |
|
Phenolic |
10' /10" |
8'2"to 10'-2" |
64 11/16" |
4-11/16" |
6,000 |
554 |
|
AHA-6-10-12 |
|
Phenolic |
10' /10" |
10'2"to12'-2" |
64 11/16" |
4-11/16" |
6,000 |
572 |
|
AHA-6-12-8 |
|
Phenolic |
12' /12" |
6'-2"to 8'-2" |
64 11/16" |
7" |
6,000 |
568 |
|
AHA-6-12-10 |
|
Phenolic |
12' /12" |
8'2"to 10'-2" |
64 11/16" |
7" |
6,000 |
589 |
|
AHA-6-12-12 |
|
Phenolic |
12' /12" |
10'2"to12'-2" |
64 11/16" |
7"" |
6,000 |
607 |
|
AHA-6-15-8 |
|
Phenolic |
15' /12" |
6'-2"to 8'-2" |
64 11/16" |
7" |
6,000 |
642 |
|
AHA-6-15-10 |
|
Phenolic |
15' /12" |
8'2"to 10'-2" |
64 11/16" |
7" |
6,000 |
630 |
|
AHA-6-15-12 |
|
Phenolic |
15' /12" |
10'2"to12'-2" |
64 11/16" |
7" |
6,000 |
648 |
|
AHA-15-10-10-PNU |
|
Pneumatic |
10'/6" |
8'-2" to 10'8" |
53-3/4" |
3-5/16" |
1,500 |
284 |
|
AHA-15-10-12-PNU |
|
Pneumatic |
10'/6" |
10' to 12'6" |
53-3/4" |
3-5/16" |
1,500 |
291 |
|
AHA-15-10-8-PNU |
|
Pneumatic |
10'/6" |
6'-2" to 8'-8" |
53-3/4" |
3-5/16" |
1,500 |
275 |
|
AHA-15-12-10-PNU |
|
Pneumatic |
12'/8" |
8'2" to 10'8" |
53-3/4" |
4" |
1,500 |
301 |
|
AHA-15-12-12-PNU |
|
Pneumatic |
12'/8" |
10' to 12'6" |
53-3/4" |
4" |
1,500 |
315 |
|
AHA-15-12-8-PNU |
|
Pneumatic |
12'/8" |
6'2"to8'8" |
53-3/4" |
4" |
1,500 |
287 |
|
AHA-15-15-10-PNU |
|
Pneumatic |
15'/8" |
8'2" to 10'8" |
53-3/4" |
4-3/16" |
1,500 |
359 |
|
AHA-15-15-12-PNU |
|
Pneumatic |
15'/8" |
10' to 12'6" |
53-3/4" |
4-3/16" |
1,500 |
368 |
|
AHA-15-15-8-PNU |
|
Pneumatic |
15'/8" |
6'2"to8'8" |
53-3/4" |
4-3/16" |
1,500 |
348 |
|
AHA-15-8-10-PNU |
|
Pneumatic |
8'6" |
8'2" to 10'8" |
53-3/4" |
3-5/16" |
1,500 |
269 |
|
AHA-15-8-12-PNU |
|
Pneumatic |
8'6" |
10' to 12'6" |
53-3/4" |
3-5/16" |
1,500 |
282 |
|
AHA-15-8-8-PNU |
|
Pneumatic |
8'6" |
6'2" to 8'8" |
53-3/4" |
3-5/16" |
1,500 |
254 |
|
Aluminum
Gantry Crane Options |
|
Model |
Description |
|
AHA-2/4-TLC |
Total Locking Casters (for 2,000 & 4,000 lb. capacity
cranes only) (set of 4) |
|
AHA-6-TLC |
Total Locking Casters (for 6,000 capacity
cranes only) (set of 4) |
|
AHA-PNU-RF |
Retrofit Four-Way lock Pneumatic Casters (1,500 lb.
Capacity) (set of 4) |
|
AHA-2/4-V |
8"x2" V-Groove Wheels for 2,000 & 4,000 lbs. units (Set
of 4) |
|
AHA-2/4-V4 |
8"x2" V-Groove Wheels for 2,000 & 4,000 lbs. units
(W/4-Position Lock) (Set of 4) |
|
V-Track |
10 foot section of V-groove track (one side only) |
|
AHA-KIT |
(2) Come-A-Longs (2) Cables for height adjustment (Not for lifting) |
|
AHA-STLO |
STATIONARY LEG OPTION, set of 4 (factory installed) |
|
AHA-STLO-RF |
STATIONARY LEG OPTION, set of 4 (field installed) |
|
Fixed Height Aluminum Gantry Cranes |
| Model |
PDF's |
Overall I-Beam
Length/ Height |
Under I-Beam Range |
Base Width |
I-Beam
Flange Width |
Capacity (lbs) |
Wt. (lbs) |
|
FHA-2-8-10 |
|
96"/6" |
120" |
53-3/4" |
3-5/16" |
2,000 |
331 |
|
FHA-2-10-10 |
|
120"/6" |
120" |
53-3/4" |
3-5/16" |
2,000 |
333 |
|
FHA-2-12-10 |
|
144"/8" |
120" |
53-3/4" |
4" |
2,000 |
355 |
|
FHA-2-15-10 |
|
180"/8" |
120" |
53-3/4" |
4-3/16" |
2,000 |
445 |
|
FHA-4-8-10 |
|
96"/8" |
120" |
53-5/16" |
4" |
4,000 |
390 |
|
FHA-4-10-10 |
|
120"/8" |
120" |
53-5/16" |
4-3/16" |
4,000 |
390 |
|
FHA-4-12-10 |
|
144"/8" |
120" |
53-5/16" |
4-3/16" |
4,000 |
406 |
|
FHA-4-15-10 |
|
180"/10" |
120" |
53-5/16" |
4-11/16" |
4,000 |
442 |
|
FHA-6-8-10 |
|
96"/10" |
120" |
64-11/16" |
4-11/16" |
6,000 |
639 |
|
FHA-6-10-10 |
|
120"/10" |
120" |
64-11/16" |
4-11/16" |
6,000 |
734 |
|
FHA-6-12-10 |
|
144"/12" |
120" |
64-11/16" |
7" |
6,000 |
993 |
|
FHA-6-15-10 |
|
180"/12" |
120" |
64-11/16" |
7" |
6,000 |
994 |
|
Fixed Height Aluminum Gantry Crane Options |
|
Model |
Description |
|
FHA-STLO |
STATIONARY LEG OPTION, set of 4 (factory installed) |
|
FHA-STLO-RF |
STATIONARY LEG OPTION, set of 4 (field installed) |
