model JIB-LC-3

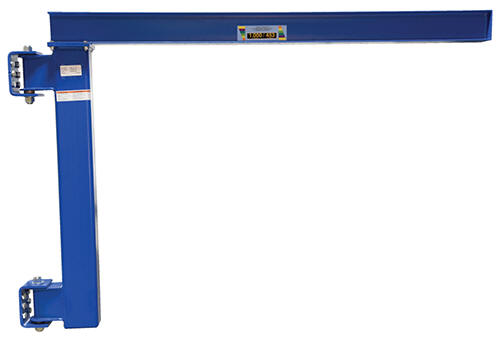

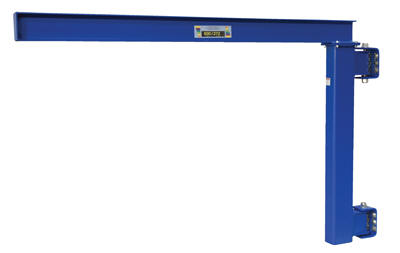

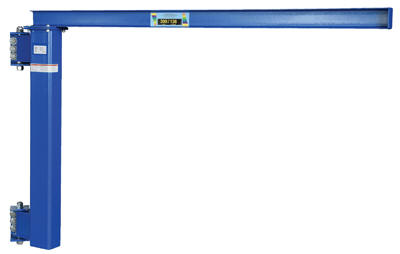

Designed to assist workers in the maneuvering of materials as well as achieving maximum headroom where low ceilings are of concern. This cantilever style mounts to true vertical wall members. Increase personnel productivity by lifting awkward materials.  The overall I-beam length is 88" with a usable length of 80". Overall length of jib is 96⅛". Unit rotates 180. Steel construction with painted blue finish. Hoist and trolley can be ordered separately.



model JIB-LC-6



model JIB-LC-10

Wall Jibs (for low ceilings)
Model PDF's Under I-Beam
To Bottom
Frame
I-BEAM
(Flange Width x
Height)
Overall
Height
Capacity
(lbs)
Wt.
(lbs)
JIB-LC-3 Warranty PDFCompliance Certificate 57" 2-11/16"x4" 61" 300 304
JIB-LC-6 Warranty PDFCompliance Certificate 57" 4"x6" 63" 600 328
JIB-LC-10 Warranty PDFCompliance Certificate 57" 4"x6" 63" 1,000 332
JIB-LC-20 Warranty PDFCompliance Certificate 57" 4"x10-1/8" 67-1/8" 2,000 405

Freight Quote

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
